Johnson Controls tyco TSV-D SMART Manual page 3

FLOAT
VALVE
"Y" STRAINER
WITH BALL VALVE
120 VAC/60 Hz SUPPLY WIRING
120 VAC
SOLENOID
CONNECTIONS
Step 5. Provide conductors to connect
the 120 VAC/60 Hz (24 VDC) coil leads
of the electronic solenoid valve on
the vent assembly to the designated
terminals in the electric control box
per NFPA 70 and local requirements
as shown in Figure 3. Holes must be
drilled on the side or top of the control
box to provide access.
IN-LINE BACKPRESSURE
FILTER REGULATOR
MODEL TSV-D SMART AIR VENT DRY
120 VAC/60 Hz
SINGLE PHASE
CONNECTIONS
G L N
G
L1 N N L18L L18 L1C
G/Y OR OR
MODEL TSV-D SMART AIR VENT
Step 6. The green power switch on the
electric control box must remain in the
OFF position until the TYCO Nitrogen
Generator is commissioned.
Step 7. Inspect the vent assembly after
installation and hydrostatic testing of
the fire sprinkler system. The inspec-
tion should be performed periodically
thereafter in accordance with the appli-
cable NATIONAL FIRE PROTECTION
ASSOCIATION codes and standards
and/or the authority having jurisdiction.
GAS SAMPLING PORT
QUICK CONNECT

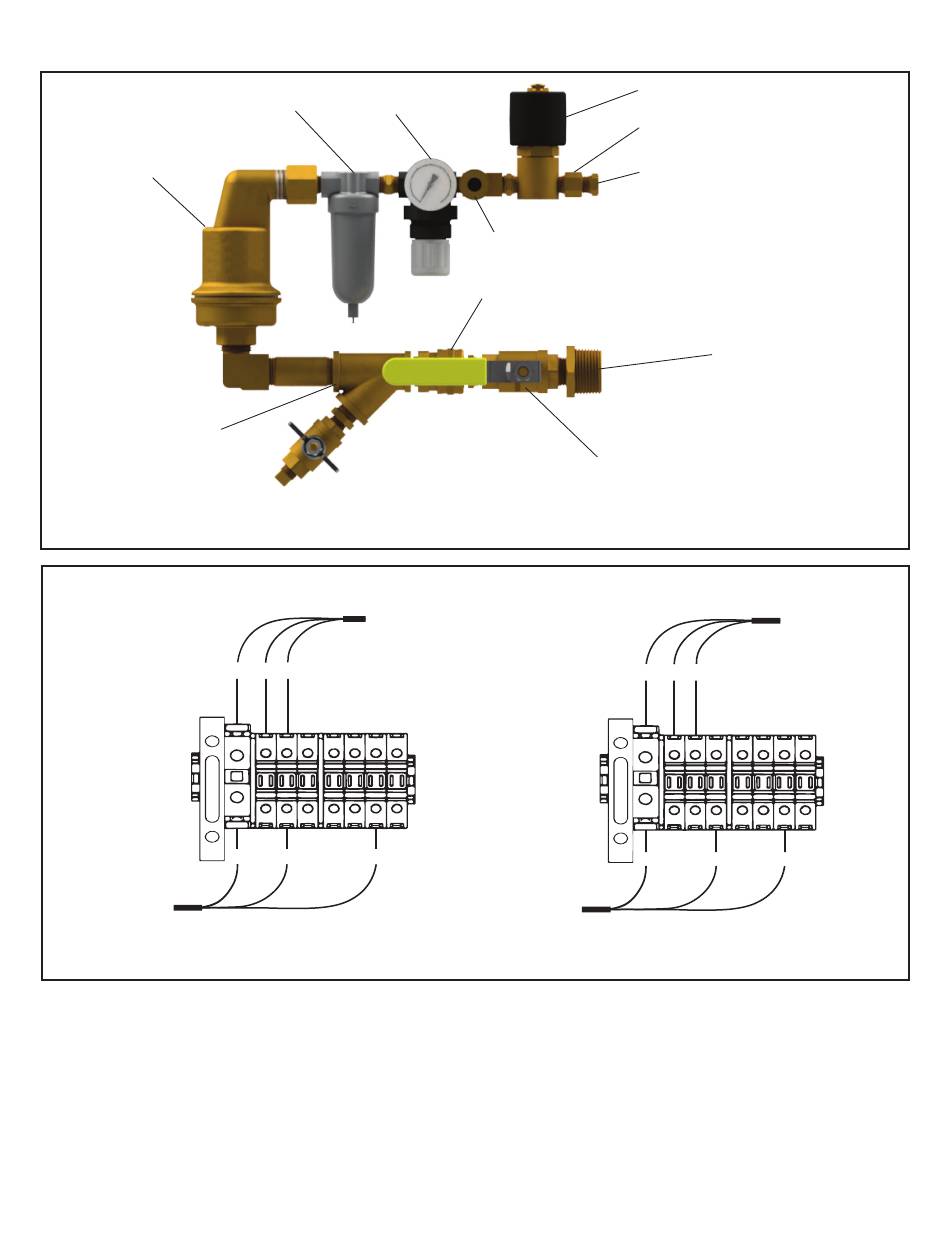

FIGURE 2
ASSEMBLY
(24 VDC)
SOLENOID
CONNECTIONS
FIGURE 3
POWER WIRING
SOLENOID
RESTRICTED VENTING
ORIFICE
MUFFLER
CONNECTION TO
SPRINKLER SYSTEM
ISOLATION BALL VALVE
230 VAC/50 Hz SUPPLY WIRING
G L N
G
L1 N V–
V+B V+B V+C
G BL R
Note: Inspection must include veri-
fying the condition of the inline filter
and checking for blockage in the "Y"
strainer and the restricted venting
orifice.
TFP1263
Page 3 of 6
230 VAC/50 Hz
SINGLE PHASE
CONNECTIONS
