1.0 SAFETY INFORMATION
•
The provision of the electrical supply and the connection of the unit to the electrical supply
must be carried out by a qualified electrician in accordance with latest edition of the wiring
regulations.
•
Isolate from power supply before removing any covers. During installation / maintenance ensure
all covers are fitted before switching on the mains supply.
•
All-pole disconnection from the mains as shown in the wiring diagram must be incorporated
within the fixed wiring and shall have a minimum contact separation of 3mm in accordance with
latest edition of the wiring regulations.
•
This unit must be earthed.
•
Ducting must be securely fixed with screws to the spigot to prevent access to live parts. Duct
runs terminating close to the fan must be adequately protected by suitable guards.
•
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard. The replacement cord must be of the same
technical specification as the original cord or greater.
•
Precautions must be taken to avoid the back-flow of gases into the room from the open flue of
gas or other fuel-burning appliances.
•
This appliance should not be used by children or persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge, unless they have been given supervision
or instruction concerning the safe use of the appliance by a person responsible for their safety.
Children shall not play with the appliance. Cleaning and user maintenance shall not be carried
out by children.
1.1 Hazard Symbols
GENERAL WARNING
Signifies a general warning regarding hazard specified by supplementary information.
ELECTRIC SHOCK
This unit must be completely electrically isolated before any panels are removed. Check
mains supply and control connections.
ROTATING PARTS
This unit contains fast moving rotational parts which may start automatically. It is the
sole responsibility of the installer to adequately guard these components.
REFER TO INSTRUCTION MANUAL
Read and understand the installation and maintenance manual before installing,
operating or maintaining this product.
Nuaire |
Western Industrial Estate

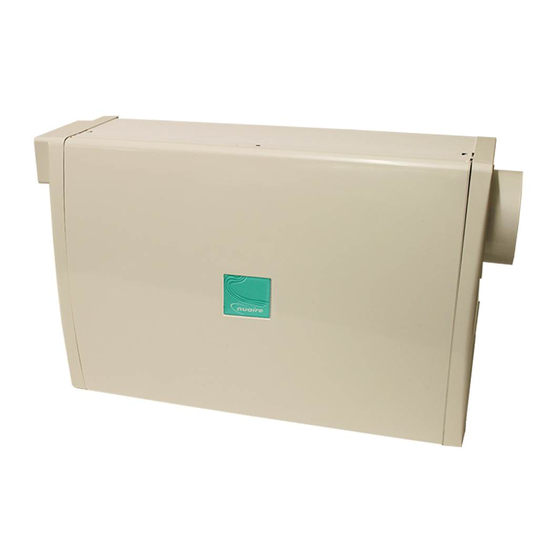

FLAT2000 L/R
Positive Input Ventilation Unit
Installation Manual
|
|
| nuaire.co.uk
Caerphilly
CF83 1NA
16. 10. 20. Document Number 670901
EMC Directive
2014/30/EU
LVD Directive
2014/35/EU
1
Advertisement
Table of Contents
Related Manuals for NuAire FLAT2000 L
Summary of Contents for NuAire FLAT2000 L
- Page 1 FLAT2000 L/R Positive Input Ventilation Unit EMC Directive 2014/30/EU Installation Manual LVD Directive 2014/35/EU 1.0 SAFETY INFORMATION • The provision of the electrical supply and the connection of the unit to the electrical supply must be carried out by a qualified electrician in accordance with latest edition of the wiring regulations.
- Page 2 (supplied). the assembly can be slotted into the scroll and clipped firmly in place The FLAT2000 L/R is a ‘handed’ product, with the L/R signifying the (Figure 4). discharge direction, as viewed from the front. The FLAT2000L unit is Fitting Deflector Plate For FLAT2000L supplied arranged for LEFT HAND discharge of air.
- Page 3 3.4.1 Necessary Ducting Outlet A full range of ductwork and ductwork ancillaries are available. Please Spigot contact Nuaire for further details. Spigot Insert Installation Outlet Inlet Clip & glue points ‘Blank off’...
- Page 4 FLAT2000 L/R Installation Manual 3.5 Inlet / Outlet Grille Installation Side Input Installation (Front View) If a fly screen is fitted it should be removed from both the internal and Input grille (louvres 100mm dia / 121x60mm rectangular ducting slant downwards) external grille.
- Page 5 FLAT2000 L/R Installation Manual 5.0 ELECTRICAL INSTALLATION Boost Switch Wiring Diagram Ensure that the fan is isolated from the mains supply before removing cover. mains For good EMC engineering practice, any sensor cables or switched 230V live cables should not be placed within 50mm of other cables or on 50Hz the same metal cable tray as other cables.
- Page 6 Installation Manual Unit PCB Controls 9.0 END-OF-LIFE AND RECYCLING Ensure that Nuaire product is made safe from any electrical / water Earth post on rear panel / refrigerant supplies before dismantling commences. This work should only be undertaken by a qualified person in accordance with...
- Page 7 FLAT2000 L/R Installation Manual Product Safety - Essential Operational Checks Unit With Cover Installed Project Address DD/MM/YYYY Date Of Check No action required Unit Code Remedial action required Unit Serial Number Make safe and corrective action required Product Condition DATE OF LAST MAINTENANCE...
- Page 8 FLAT2000 L/R Installation Manual NOTES Nuaire | | nuaire.co.uk 16. 10. 20. Document Number 670901 Western Industrial Estate Caerphilly CF83 1NA...
