WARNING: If the information in this manual is
not followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
- Do not store or use gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance
• Do not touch any electrical switch; do not use any
phone in your building
• Leave the building immediately
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas suppliers
instructions
• If you can not reach your gas supplier, call the fire
department
- Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Archgard Fireplace Products
7116 Beatty Dr
Mission, BC V2V 6B4
Canada
35-DVRS31NB-2
35-DVRS31NBN-2

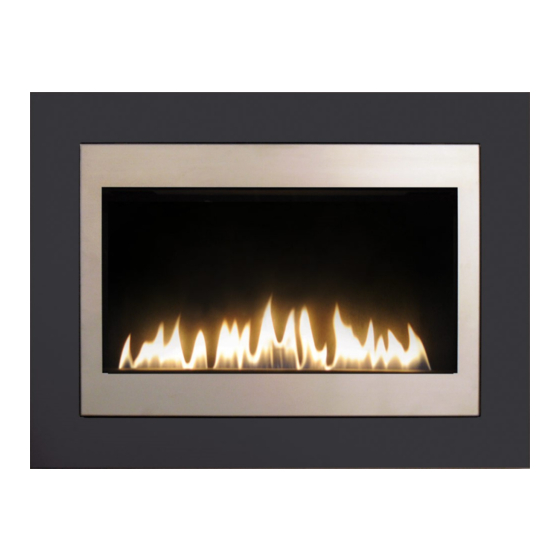

Direct Vent Gas Fireplace
SERIAL NUMBERS 312009 AND HIGHER
U
SERS'
O
PERATION and
M
AINTENANCE
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
Gas Fireplace Efficiency Rating
75.40%
Based on CSA P.4.1-15
Heater
I
NSTALLATION
M
ANUAL
200-0035-08
July 24 2019
Advertisement
Table of Contents
Related Manuals for Brigantia 35-DVRS31NB-2
Summary of Contents for Brigantia 35-DVRS31NB-2
- Page 1 35-DVRS31NB-2 35-DVRS31NBN-2 Direct Vent Gas Fireplace Heater SERIAL NUMBERS 312009 AND HIGHER SERS’ NSTALLATION PERATION and AINTENANCE ANUAL This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes.
-
Page 2: Table Of Contents
TABLE OF CONTENTS State of Massachusetts Requirements Introduction Caution and Safety Instructions Appliance Certification, Installation Codes and Specifications Rating Plate Appliance Dimensions and Framing Dimensions Framing dimensions, Installation Instructions 9 - 10 Nailing Flanges, Mantle Clearances, Clearance to Combustibles Installation Examples, Electrical Considerations 12 - 14 Venting Instructions 15 - 19... -
Page 3: State Of Massachusetts Requirements
INTRODUCTION Congratulations on choosing a Brigantia fireplace! The 35-DVRS31NB(N)-2 is one of the most advanced direct vent fireplace heaters available. It is solidly designed using the latest technology and manufactured to the highest quality. It is our aim to provide you with an appliance for many trouble-free years of reliable service. -
Page 4: Rating Plate
35-DVRS31NB(N)-2 RATING PLATE... -
Page 5: Caution And Safety Instructions
35-DVRS31NB(N)-2 Installation Checklist This standard installation checklist is to be used by the installer in conjunction with, not instead of, the instructions contained within this installation manual. Customer: Date Installed: Install Address: Location of Fireplace: Installer: Appliance Install: IF NO, WHY NOT? Standoffs and side nailing flanges are installed. -
Page 6: Appliance Certification, Installation Codes And Specifications
35-DVRS31NB(N)-2 Safety Information Caution FOR YOUR SAFETY - Do not install or operate your 35-DVRS31NB(N)-2 without reading and understanding this manual. Any installation or operational deviation from this instruction manual voids the warranty and may prove haz- ardous. • This appliance must be installed by a qualified gas installer and the installation must conform to the installation codes •... - Page 7 35-DVRS31NB(N)-2 APPLIANCE CERTIFICATION his appliance was listed by QAI Laboratories Inc to the following USA and Canadian gas appliance standards. - ANSI Z21.88-2017/CSA 2.33-2017 Vented Gas Fireplace Heaters - CSA 2.17-2017, Gas-Fired Appliances for Use at High Altitudes - CSA P.4.1-15 testing method for measuring annual fireplace efficiency. - CSA C22.2 No.3 –...
-
Page 8: Appliance Dimensions And Framing Dimensions
35-DVRS31NB(N)-2 APPLIANCE DIMENSIONS Surround Installed Fig 8-A FRONT REAR Fig 8-C REAR Fig 8-B LEFT RIGHT Surround Removed Fig 8-D LEFT RIGHT FRONT Fig 8-F Fig 8-E... -
Page 9: Framing Dimensions, Installation Instructions
35-DVRS31NB(N)-2 Framing Dimensions The following section describes in detail the requirements for framing for the model 35-DVRS31NB(N)-2. A t t e n t i o n Framing should be constructed as required by local building codes Wall Framing Vent opening Construct the opening to dimensions shown: 42 1/2”... - Page 10 35-DVRS31NB(N)-2 Installation Instructions Cont. Install the inside wall portion of the wall thimble and seal the entire inside with a high tempera- ture silicone sealant. This is critical to prevent Firestop drafts. See figure 10-A Seal Fig 10-A With the unit installed into the wall; Caulk the vent collar and fire stop from the outside to prevent cold drafts.
-
Page 11: Nailing Flanges, Mantle Clearances, Clearance To Combustibles
2-ply aluminum flex, a change to the 999-DV-HTC is required. Electrical Considerations The Brigantia 35-DVRS31NB(N)-2 requires 120v for the operating system. There is a factory installed electrical box to accommodate the connections. (see wiring diagram pg. 20) The fireplace comes complete with a battery back-up system that will operate the fireplace for a limited time only in the event of a power outage. -
Page 12: Installation Examples, Electrical Considerations
35-DVRS31NB(N)-2 Nailing Flanges Fig 11-A Fig 11-B Install the nailing flanges provided, by screwing them to the side of the outer shell using the appropriate holes for the facing material. Place the fireplace into the framed opening and secure the nailing flanges to the wall. Clearance to Combustibles Mantle Clearances Minimum measurements below are from the edge... - Page 13 35-DVRS31NB(N)-2 Installation Instructions Cont. VENTING Clearance to combustibles The following clearances must be maintained around the vent pipe: Vertical runs: 1” Horizontal runs: 2” on top, 1” sides and bottom IMPORTANT: This appliance venting system is a sealed system (DV), which means that all combustion air is supplied from outdoors and the combustion products are exhausted to the outdoors.
- Page 14 35-DVRS31NB(N)-2 Installation Instructions Cont. Horizontal Wall Vent Terminations The position of the horizontal vent termination must be positioned in such a way as to meet all local building codes. Attach the correct length of vertical section pipe and the elbow(s) fitting to the stove. Mark the center line of the pipe facing the wall (allowing for a 1/4”...
-
Page 15: Venting Instructions
35-DVRS31NB(N)-2 Installation Instructions Cont. Basement/ Room Installation Examples To achieve the minimum vertical rise, a snorkel termination may be used. Do not install where snorkel may be blocked by snow or submerged in water. Ensure adequate space and drainage. W A R N I N G ALLOWING THE VENT PIPE TO SLOPE DOWN TOWARDS THE VENT TERMINATION WILL CAUSE POOR COMBUSTION AND/OR HIGH TEMPERTURES THAT MAY PRESENT A FIRE HAZARD. - Page 16 35-DVRS31NB(N)-2 Installation Instructions Cont. Vent Termination Locations Fig 16-A Horizontal Installation The horizontal run must have a 1/4” rise on an exterior wall and Do not install above a meter/regulator assembly within 3 feet must meet all local and national building codes, and must not be (90 cm) horizontally from the centerline of the meter/regulator.
- Page 17 35-DVRS31NB(N)-2 Installation Instructions Cont. FOR PROPER VENTING When planning your installation, it will be necessary to select the proper length of vent pipe installations. For vertical installations, determine the length of vent pipe required by meas- uring the distance from the appliance flue outlet to the ceiling, the ceiling thickness, the vertical rise in the attic or second story, and allow for suffi-...
- Page 18 35-DVRS31NB(N)-2 Installation Instructions Cont. itch Pitch Rise (in/ft) Rise (m) 0/12 - 6/12 12”(1ft) .30m 7/12 - 9/12 18”(1.5ft) .46m 10/12 - 12/12 24”(2ft) .61m 13/12 - 16/12 36”(3ft) .91m 17/12 - 24/12 48”(4ft) 1.22m Fig 18-A N O T E ALWAYS CHECK YOUR LOCAL CODES BEFORE INSTALLING VENTING.
- Page 19 35-DVRS31NB(N)-2 Installation Instructions Cont. Venting Chart Maximum Venting Lengths 45’ Maximum Total Venting : Restrictor Setting #3 35’ Maximum Vertical Vent : 20’ ** Maximum Horizontal Vent : ** Min 7’ vertical vent rise required for max horizontal vent Maximum Elbows Total Elbows in vent Restrictor Max Horizontal permitted...
-
Page 20: Wiring Schematics
35-DVRS31NB(N)-2 WIRING SCHEMATICS INSTALLATION NOTE The SIT Control Module is powered by 120V with an internal transformer for the valve. This is pre-wired to the factory installed electrical box for the electrician. Some jurisdictions may require you install a service switch in the factory supplied electrical box or a remote location. -
Page 21: Gas Connections
35-DVRS31NB(N)-2 GAS CONNECTIONS Before connecting the appliance to the gas supply line, double check that the appliance you have purchased is designed for the gas type you are using. The gas type markings are located on the certification label and also on the appliance’s gas valve. Adequate clearance for proper installation and checking of the gas connections must be provided. -
Page 22: Checking Inlet/Outlet Gas Pressures, Adjusting Pilot And Convertible Pilot Orifice
35-DVRS31NB(N)-2 CHECKING INLET AND OUTLET GAS PRESSURE 1. Remove the surround. 2. The pressure test taps are located on the valve. The taps are located in the gas valve front face. The inlet is marked ‘IN’ and the outlet is marked ‘OUT’. See Figure below. 3. -
Page 23: Adjusting Primary Air
35-DVRS31NB(N)-2 ADJUSTING THE PRIMARY AIR Your fireplace includes an air shutter located under the door of the fireplace on the lower, right side. This may be used to adjust the primary air to achieve the ideal flame. To increase air flow to the burner, loosen the wingnut and slide the air shutter toward the left side of the appliance. -
Page 24: Contemporary Panel Part List & Installation Instructions
35-DVRS31NB(N)-2 Contemporary Panels PANELS DETAIL Back Side Fig 23-A Fig 23-B ITEM NO. PART NUMBER DESCRIPTION QTY. 311-6351-FB REAR PANEL 311-6352-FB SIDE PANEL 2 (L & R) 750-1015 BAFFLE... - Page 25 35-DVRS31NB(N)-2 35-DVRS31N Contemporary Panel Installation Instructions Remove burner cover and place to the Angle the large contemporary panel (back) into the side to be re-installed at the end. fireplace. Make sure the 45° cut-out is to the back side of the panel. Push back flat against the fireplace. Slide one of the “keyed”...
-
Page 26: Door Removal, Surround Clip Installation, Surround Installation & Removal
35-DVRS31NB(N)-2 NOTE: Do not remove any components while the appliance is hot. Door Removal Release the bottom latches located on the left and right bottom of door. To release pull forward then press down. Fig 25-A Remove the door by pulling the bottom out to 30 degrees and lift upward to release the 2 latches at the top of the door. -
Page 27: Glass Bead Installation, Final Installation Check And Initial Operation
Silhouette Log Set Installation (Optional) Your Brigantia Fireplace is approved for use with the Optional Silhouette Log Set. The logs come in White, Black, and Grey. Each set comes with 2 logs and you can install a max of 4 logs in your fireplace in any color combination you wish. -
Page 28: Safety Barrier Installation
35-DVRS31NB(N)-2... -
Page 29: Lighting Instructions On Rating Plate
35-DVRS31NB(N)-2 LIGHTING INSTRUCTIONS ON RATING PLATE... -
Page 30: Dynamic Start Advantage
35-DVRS31NB(N)-2 DYNAMIC START ADVANTAGE This fireplace comes standard with the Dynamic Start Advantage. This new electronic ignition system is the latest in fireplace technology. It helps to create a better draft, better flame appearance, less condensa- tion on the glass, and years of carefree operation. How the system works: When starting a solid fuel wood burning fireplace you build a fire. -
Page 31: First Fire And Lighting Instructions (Caution)
35-DVRS31NB(N)-2 FINAL INSTALLATION CHECK Each Brigantia Fireplace is checked and tested at the factory prior to being packaged and shipped to our dealers and finally installed in your home. Archgard recommends that before leaving this unit with the customer, the installer must ensure that the appliance is firing correctly and that the electrical system is in working order. -
Page 32: Remote Control Setup And Operation
35-DVRS31NB(N)-2 REMOTE CONTROL SETUP AND OPERATION I M P O R T A N T The Proflame II Transmitter is an integrated part of the Proflame II System, which consists of these elements: • Proflame II Transmitter, to be used in conjunction with: •... - Page 33 35-DVRS31NB(N)-2 REMOTE CONTROL SETUP AND OPERATION HANDHELD REMOTE DISPLAY Continuous Pilot on Demand Not for use on this unit Fig. 30-A W A R N I N G THE TRANSMITTER AND RECEIVER ARE RADIO FREQUENCY DEVICES. PLACING THE TRANSMITTER IN OR NEAR METAL ENCLOSURES MAY REDUCE THE SIGNAL RANGE OPTIONAL HANDHELD REMOTE Fig.
- Page 34 35-DVRS31NB(N)-2 REMOTE CONTROL SETUP AND OPERATION INITIALIZING THE SYSTEM FOR HANDHELD REMOTE OPERATION Connect IFC Control Module to AC power supply. A single “beep” will indicate the presence of power. NOTE: This will initiate Pilot Start-up in Manual Mode. The pilot will spark repeatedly and ignite if gas has been supplied to the unit if the main power switch is in the “ON”...
- Page 35 35-DVRS31NB(N)-2 REMOTE CONTROL SETUP AND OPERATION TEMPERATURE INDICATION DISPLAY With the system in the “OFF” position, press the Thermostat Key and the Mode Key at the same time to switch between Fahrenheit (F) or Celsius (C). Verify on the LCD screen the correct designation is visible. Display in Fahrenheit Display in Celsius Fig.
- Page 36 35-DVRS31NB(N)-2 REMOTE CONTROL SETUP AND OPERATION ROOM THERMOSTAT (TRANSMITTER OPERATION) The Remote Control can operate as a room thermostat. The thermostat can be set to a desired temperature to control the comfort level in a room. • To activate this function: •...
- Page 37 35-DVRS31NB(N)-2 REMOTE CONTROL SETUP AND OPERATION Continuous Pilot on Demand / Intermittent Pilot (CPI/IPI) Selection With the system in “OFF” position press the Mode Key to index to the CPI mode icon. Pressing the UP Arrow Key will activate the Continuous Pilot Ignition mode (CPI). Pressing the Down Arrow Key will return to IPI. A single “beep”...
- Page 38 35-DVRS31NB(N)-2 REMOTE CONTROL SETUP AND OPERATION KEY LOCK This function will lock the keys to avoid unsupervised operation. • To activate this function, press the MODE and UP Keys at the same time. • To deactivate this function, press the MODE and UP Keys at the same time.
-
Page 39: Troubleshooting, Service Under Warranty
35-DVRS31NB(N)-2 TROUBLESHOOTING A T T E N T I O N TROUBLESHOOTING MUST BE PERFORMED BY A QUALIFIED SERVICE TECHNICIAN Pilot will not light /Stay lit Restore power to fireplace Electrical power interrupted or disconnected Replace batteries if depleted ... - Page 40 Relight the fireplace to restart the cycle. SERVICING UNDER WARRANTY Before servicing, read the terms and conditions of the Brigantia warranty at the back of the manual. Contact the authorized Brigantia dealer where you purchased the appliance from and provide them with details of the problem, along with the initial installation information.
-
Page 41: Maintenance And Cleaning The Appliance
35-DVRS31NB(N)-2 MAINTENANCE CAUTION: Do not conduct maintenance on the appliance while it is operating or while it is still hot. Always verify proper operation after servicing. Cleaning and Routine Maintenance The exterior painted surfaces, glass, and metal plated trims may be cleaned with a soft, non-abrasive cloth and water or a suitable, mild, non-abrasive cleaner. -
Page 42: Conversion Instructions
35-DVRS31NB(N)-2 CONVERSION KIT INSTRUCTIONS W A R N I N G The conversion kit shall be installed by a qualified service agency in accordance with the manufacturers instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explo- sion or productions of carbon monoxide may result, causing property damage, personal injury or loss of life. - Page 43 35-DVRS31NB(N)-2 CONVERSION KIT INSTRUCTIONS, cont. CONVERT THE GAS VALVE COMPLETE THE CONVERSION Turn on the gas and electrical supplies and check for leaks at all connections. Turn on the fireplace so the burner is on. Test inlet and outlet pressure. Visually check pilot flame. Flame should envelope top of the flame sensor and extend forward onto the burner.
-
Page 44: Replacement Parts List
35-DVRS31NB(N)-2 REPLACEMENT PARTS LIST Item # Item Description Unit 200-0035-08 Owner’s Manual 308-6060 SIT Proflame II Dynamic Start Advantage with Continuous Pilot on Demand 308-6022 SIT Pro Flame II Handheld Transmitter 308-6027 SIT 885 Gas Valve c/w Step Motor (0.885.009) 308-6012 Module Main Wiring Harness (5 wire) 305-0060... -
Page 45: Frequently Asked Questions
Q. How do I care for my plated trims? A. Brigantia recommends a cleaning with a damp cloth. DO NOT use chemical cleaners as they may harm the finish, and void your warranty. NOTE: If the top louvers, or top overlay starts to discolor, check the door gasket seal and replace if necessary. -
Page 46: Warranty, Warranty Registration Card
This Limited Warranty is made by Archgard Industries, hereinafter referred to as “Brigantia”. Brigantia warrants to the original purchaser of an Brigantia gas burning fireplace (s) that the product will be free of defects in materials and workmanship under normal use and ser- vice, for a “lifetime”. - Page 47 POSTAGE WARRANTY REGISTRATION BRIGANTIA FIREPLACES 7116 BEATTY DRIVE MISSION, B.C. CANADA V2V 6B4 FOLD DOWN AT LINE FOLD DOWN AT LINE & TAPE CLOSED Model # : Serial #: Date Installed: Name: Address: yyyy City: State/Prov: ZIP: Phone: ( _____ ) Dealer's Name &...
- Page 48 ARCHGARD FIREPLACES 7116 Beatty Drive Mission, B.C. V2V 6B4 Canada Website: www.archgard.com...
