WARNING: If the information in this manual is
not followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
- Do not store or use gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance
• Do not touch any electrical switch; do not use any
phone in your building
• Leave the building immediately
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas suppliers
instructions
• If you can not reach your gas supplier, call the fire
department
- Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Archgard Fireplace Products
7116 Beatty Dr
Mission, BC V2V 6B4
Canada
24-DVRS25NB-2
24-DVRS25NBN-2

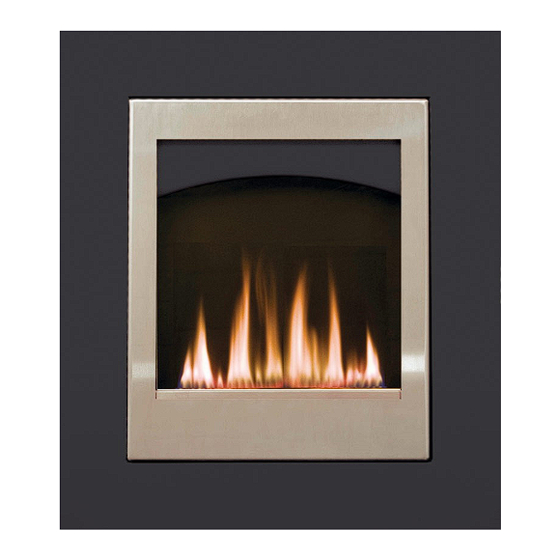

Direct Vent Gas Fireplace
SERIAL NUMBERS 300308 AND HIGHER
U
SERS'
O
PERATION and
M
AINTENANCE
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
Gas Fireplace Efficiency Rating
74.96%
Based on CSA P.4.1-15
Heater
I
NSTALLATION
M
ANUAL
200-0324-07
July 11 2019
Advertisement
Table of Contents
Related Manuals for Brigantia 24-DVRS25NB-2
Summary of Contents for Brigantia 24-DVRS25NB-2
- Page 1 24-DVRS25NB-2 24-DVRS25NBN-2 Direct Vent Gas Fireplace Heater SERIAL NUMBERS 300308 AND HIGHER SERS’ NSTALLATION PERATION and AINTENANCE ANUAL This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Rating Plate Caution and Safety Instructions Appliance Certification, Installation Codes and Specifications Appliance Dimensions and Framing Dimensions Installation Instructions 9 - 11 Clearance to Combustibles, Mantle Clearances, Nailing Flanges Venting Instructions 13 - 17 Wiring Schematics Gas Connections Checking Inlet/Outlet gas pressures, Adjusting Pilot and Convertible Pilot Orifice Contemporary Panels Component Removal - Door Removal, Surround Clip Installation... - Page 3 INTRODUCTION Congratulations on choosing an Brigantia fireplace! The 24-DVRS25NB(N)-2 is one of the most advanced direct vent fireplace heaters available. It is solidly designed using the latest technology and manufactured to the highest quality. It is our aim to provide you with an appliance for many trouble-free years of reliable service.
-
Page 4: Rating Plate
24-DVRS25NB(N)-2 RATING PLATE... - Page 5 24-DVRS25NB(N)-2 Installation Checklist This standard installation checklist is to be used by the installer in conjunction with, not instead of, the instructions contained within this installation manual. Customer: Date Installed: Install Address: Location of Fireplace: Installer: Appliance Install: IF NO, WHY NOT? Standoffs and side nailing flanges are installed.
-
Page 6: Caution And Safety Instructions
24-DVRS25NB(N)-2 Safety Information Caution FOR YOUR SAFETY - Do not install or operate your 24-DVRS25NB(N)-2 without reading and understanding this manual. Any installation or operational deviation from this instruction manual voids the warranty and may prove haz- ardous. • This appliance must be installed by a qualified gas installer and the installation must conform to the installation codes •... -
Page 7: Appliance Certification, Installation Codes And Specifications
24-DVRS25NB(N)-2 APPLIANCE CERTIFICATION This appliance was listed by QAI Laboratories Inc to the following USA and Canadian gas appliance standards. - ANSI Z21.88-2009/CSA 2.33-2009 Vented Gas Fireplace Heaters - CAN/CGA-2.17-M91(R2009) Gas-Fired Appliances for Use at High Altitudes - CSA P.4.1-15 Testing method for measuring annual fireplace efficiency. - CSA C22.2 No.3 –... -
Page 8: Appliance Dimensions And Framing Dimensions
24-DVRS25NB(N)-2 APPLIANCE DIMENSIONS Surround Installed Surround Removed... -
Page 9: Installation Instructions
24-DVRS25NB(N)-2 Framing Dimensions Construct the opening to dimensions shown: The following section describes in detail the requirements for framing for the 26 1/2” wide x 39 1/2” model 24-DVRS25NB(N)-2. high X 5 1/2” deep 10” Note: Framing should be constructed 254 mm The bottom of the as required by local building codes... - Page 10 24-DVRS25NB(N)-2 Installation Instructions Cont. Install the inside portion of the wall thimble and seal the entire inside with a high temperature sili- cone sealant. This is critical to prevent cold drafts. See figure 4 Install the nailing flanges provide by screwing them to the side of the outer shell using the hole required for the facing material.
- Page 11 999-DV-HTC is required. Electrical Requirements The Brigantia 24-DVRS25NB(N)-2 requires 120V for the operating system. There is a factory installed electrical box to accommodate the connections. (see wiring diagram pg. 18) The fireplace comes complete with a battery back-up system that will operate the fireplace for a limited time in the event of a power outage.
-
Page 12: Clearance To Combustibles, Mantle Clearances, Nailing Flanges
24-DVRS25NB(N)-2 Nailing Flanges Install the nailing flanges provided, by screwing them to the side of the outer shell using the appropriate holes for the facing material. Place the fireplace into the framed opening and secure the nailing flanges to the wall. Mantle Clearances Room Ceiling Clearance to Combustibles... -
Page 13: Venting Instructions
24-DVRS25NB(N)-2 Installation Instructions Cont. VENTING Clearance to combustibles The following clearances must be maintained around the vent pipe: Vertical runs: 1” Horizontal runs: 2” on top, 1” sides and bottom IMPORTANT: This appliance venting system is a sealed system (DV), which means that all combus- tion air is supplied from outdoors and the combustion products are exhausted to the outdoors. - Page 14 24-DVRS25NB(N)-2 Installation Instructions Cont. Horizontal Wall Vent Terminations When the termination is to be attached to vinyl siding apply a bead of non-hardening mastic around the The position of the horizontal vent termination outside edge to form a seal between the standoff must be positioned in such a way as to meet all and the terminal.
- Page 15 24-DVRS25NB(N)-2 Installation Instructions Cont. Pitch (Ratio) ‘X’ Vertical Cap Installations Always maintain a 1” clearance around the vent pipe (vertical) and on horizontal venting 2” clearance on the 0/12 - 2/12 4” top of the vent, when passing through ceilings, walls, roofs, enclosures, attic rafters or any combustible sur- 2/12 - 7/12 5 ½”...
- Page 16 24-DVRS25NB(N)-2 Installation Instructions Cont. Figure 22 – Vent Termination Locations Horizontal Installation with local installation codes and the requirements of The horizontal run must have a 1/4” rise per foot and must meet the gas supplier. all local and national building codes, and must not be easily blocked or obstructed.
- Page 17 24-DVRS25NB(N)-2 Installation Instructions Cont. Venting Chart Maximum Total NG Venting Length Restrictor Maximum total venting allowed is 45’. Maxi- Setting #3 mum vertical vent is 35’. Maximum horizontal vent is 20’. Minimum 7’ vertical vent rise re- quired for maximum 20’ horizontal vent run. Venting Examples Example A: 3ft vertical rise / 1 90˚...
-
Page 18: Wiring Schematics
24-DVRS25NB(N)-2 WIRING SCHEMATICS INSTALLATION NOTE The SIT Control Module is powered by 120V with an internal transformer for the valve. This is pre-wired to the factory installed electrical box for the electrician. Some jurisdictions may require you install a service switch in the factory supplied electrical box or a remote location. -
Page 19: Gas Connections
24-DVRS25NB(N)-2 GAS CONNECTIONS Before connecting the appliance to the gas supply line, double check that the appliance you have purchased is designed for the gas type you are using. The gas type markings are located on the certification label and also on the appliance’s gas valve. Adequate clearance for proper installation and checking of the gas connections must be provided. -
Page 20: Checking Inlet/Outlet Gas Pressures, Adjusting Pilot And Convertible Pilot Orifice
24-DVRS25NB(N)-2 CHECKING INLET AND OUTLET GAS PRESSURE 1. Remove the surround. 2. The pressure test taps are located on the valve. The taps are located in the gas valve front face. The inlet is marked ‘IN’ and the outlet is marked ‘OUT’. See Fig.1. 3. -
Page 21: Contemporary Panels
24-DVRS25NB(N)-2 Contemporary Panels Caution: Handle contemporary Panels with care. Place side panels (2) and (3) in the firebox with notches facing forward as shown above. Place rear panel (1) into the back of the firebox. Insert the top arch by carefully sliding one end, into one of the notches on the left or right side to get it aligned with the other notch. -
Page 22: Component Removal - Door Removal, Surround Clip Installation
24-DVRS25NB(N)-2 Component Removal NOTE: Do not remove any components while the appliance is hot. Door Removal Release the latch located on the bottom of door. Pull forward and down Remove the door by pulling the bottom out to 30 de- grees and lift upward to release the 2 latches at the top of the door. -
Page 23: Safety Barrier Installation
Silhouette Log Set Installation (Optional) Your Brigantia Fireplace is approved for use with the Optional Silhouette Log Set. The logs come in White, Black, and Grey. Each set comes with 2 logs and you can install a max of 2 logs in your fireplace in any color combination you wish. -
Page 24: Final Installation Check And Initial Operation
24-DVRS25NB(N)-2... - Page 25 24-DVRS25NB(N)-2 FINAL INSTALLATION CHECK Each Brigantia Gas Fireplace is checked and tested at the factory prior to being packaged and shipped to our dealers and finally installed in your home. Brigantia recommends that before leaving this unit with the customer, the installer must ensure that the appliance is firing correctly and that the electrical system is in working order.
-
Page 26: Lighting Instructions On Rating Plate
24-DVRS25NB(N)-2 LIGHTING INSTRUCTIONS ON RATING PLATE... -
Page 27: Dynamic Start Advantage
24-DVRS25NB(N)-2 DYNAMIC START ADVANTAGE This fireplace comes standard with the Dynamic Start Advantage. This new electronic ignition system is the latest in fireplace technology. It helps to create a better draft, better flame appearance, less condensa- tion on the glass, and years of carefree operation. How the system works: When starting a solid fuel wood burning fireplace you build a fire. - Page 28 24-DVRS25NB(N)-2 FIRST FIRE When operated for the first few times, the appliance will emit some odor and fumes. This is due to the heat from the appliance evaporating the oils and solvents used in fabricating the appliance. Close off the room to the rest of the house and open all windows. Keep the room well ventilated, as smoke alarm may sound.
-
Page 29: Remote Control Setup And Operation
24-DVRS25NB(N)-2 REMOTE CONTROL SETUP AND OPERATION The Proflame II Remote provides for controlling the following hearth appliance functions: Main Burner ON/OFF Main Burner flame modulation (6 levels) Choice of Continuous Pilot on Demand or intermittent pilot (CPI/IPI) Thermostat and SMART thermostat function Comfort fan speed modulation (6 levels) Variable lights (6 levels) The Proflame Remote uses a streamline design with a simple button layout and informative... - Page 30 24-DVRS25NB(N)-2 REMOTE CONTROL SETUP AND OPERATION, cont. Continuous Pilot on Demand Not available on this unit ATTENTION • TURN OFF THE MAIN GAS SUPPLY DURING INSTALLATION OR MAINTENANCE OF THE RECEIVER DEVICE • TURN OFF MAIN GAS SUPPLY TO THE APPLIANCE PRIOR TO REMOVING OR REINSERTING THE BATTERIES •...
- Page 31 24-DVRS25NB(N)-2 REMOTE CONTROL SETUP AND OPERATION, cont.
- Page 32 24-DVRS25NB(N)-2 REMOTE CONTROL SETUP AND OPERATION, cont. This function is disabled when in SMART Thermostat Mode and does not operate in the first two minutes of operation during the Dynamic Start Advantage. Note: When the fireplace is started in Smart Thermostat mode, the fan will come on 5min after ignition and shut down 12min after fire is turned off...
- Page 33 24-DVRS25NB(N)-2 REMOTE CONTROL SETUP AND OPERATION, cont.
- Page 34 24-DVRS25NB(N)-2 REMOTE CONTROL SETUP AND OPERATION, cont. Continuous Pilot on Demand / Intermittent Pilot (CPI/IPI) Selection With the system in “OFF” position press the Mode Key to index to the CPI mode icon. Pressing the UP Arrow Key will activate the Continuous Pilot on Demand Ignition mode (CPI). Pressing the Down Arrow Key will return to IPI.
- Page 35 24-DVRS25NB(N)-2 REMOTE CONTROL SETUP AND OPERATION, cont. Automatic Safety Shut-Off This system will execute an automatic turn OFF command after a 24hr continuous main burner flame ignition. This allows the system to verify correct safety functions. Diagnostic Indication Information: LOW BATTERY CONDITION (Less than 4V): Remote Control - Battery Icon will appear on LCD remote control display.
-
Page 36: Maintenance And Cleaning The Appliance
All service work under warranty must be conducted by a qualified Archgard service technician. Before servicing, read the terms and conditions of the Brigantia warranty at the back of the manual. Contact the authorized Brigantia dealer where you purchased the appliance from and provide them with details of the problem, along with the initial installation information (from the front of this manual). -
Page 37: Conversion Kit Instructions
24-DVRS25NB(N)-2 CONVERSION KIT INSTRUCTIONS IMPORTANT: This fireplace is Natural gas ready. If converting to LP gas, follow instructions below WARNING: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturers instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or productions of carbon mon- oxide may result, causing property damage, personal injury or loss of life. - Page 38 24-DVRS25NB(N)-2 CONVERSION KIT INSTRUCTIONS CONT. VALVE CONVERSION...
- Page 39 24-DVRS25NB(N)-2 CONVERSION KIT INSTRUCTIONS CONT. Complete the Conversion Fill out and attach conversion label to the fireplace near the valve Change Rating Plate to show new fuel configuration Reinstall the Burner, burner cover and glass media by reversing the removal process. Turn on the gas and electrical supplies.
-
Page 40: Replacement Parts List
24-DVRS25NB(N)-2 REPLACEMENT PARTS LIST Item # Item Description Unit 200-0324-07 Owner’s Manual 308-6060 SIT Proflame II Dynamic Start Advantage with Continuous Pilot on Demand 308-6024 Wall Mount Remote 308-6022 SIT Pro Flame II Handheld Transmitter 308-6017 SIT 885 Gas Valve c/w Step Motor 308-6012 Module Main Wiring Harness (5 wire) 305-0060... -
Page 41: Frequently Asked Questions
Q. How do I care for my gold/nickel plated trims. A. Brigantia recommends a cleaning with a damp cloth. DO NOT use chemical cleaners as they may harm the finish, and void your warranty. NOTE: If the top louvers, or top overlay starts to discolor, check the door gasket seal and replace if necessary. -
Page 42: Warranty
This Limited Warranty is made by Archgard Industries, hereinafter referred to as “Brigantia”. Brigantia warrants to the original purchaser of an Brigantia gas burning fireplace (s) that the product will be free of defects in materials and workmanship under normal use and ser- vice, for a “lifetime”. -
Page 43: Warranty Registration Card
POSTAGE WARRANTY REGISTRATION BRIGANTIA FIREPLACES 7116 BEATTY DRIVE MISSION, B.C. CANADA V2V 6B4 FOLD DOWN AT LINE FOLD DOWN AT LINE & TAPE CLOSED Model # : Serial #: Date Installed: yyyy Name: Address: City: State/Prov: ZIP: Phone: ( _____ ) Dealer's Name &... - Page 44 ARCHGARD FIREPLACES 7116 Beatty Drive Mission, B.C. V2V 6B4 Canada Website: www.archgard.com...
