WARNING: If the information in this manual is
not followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use
any phone in your building.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

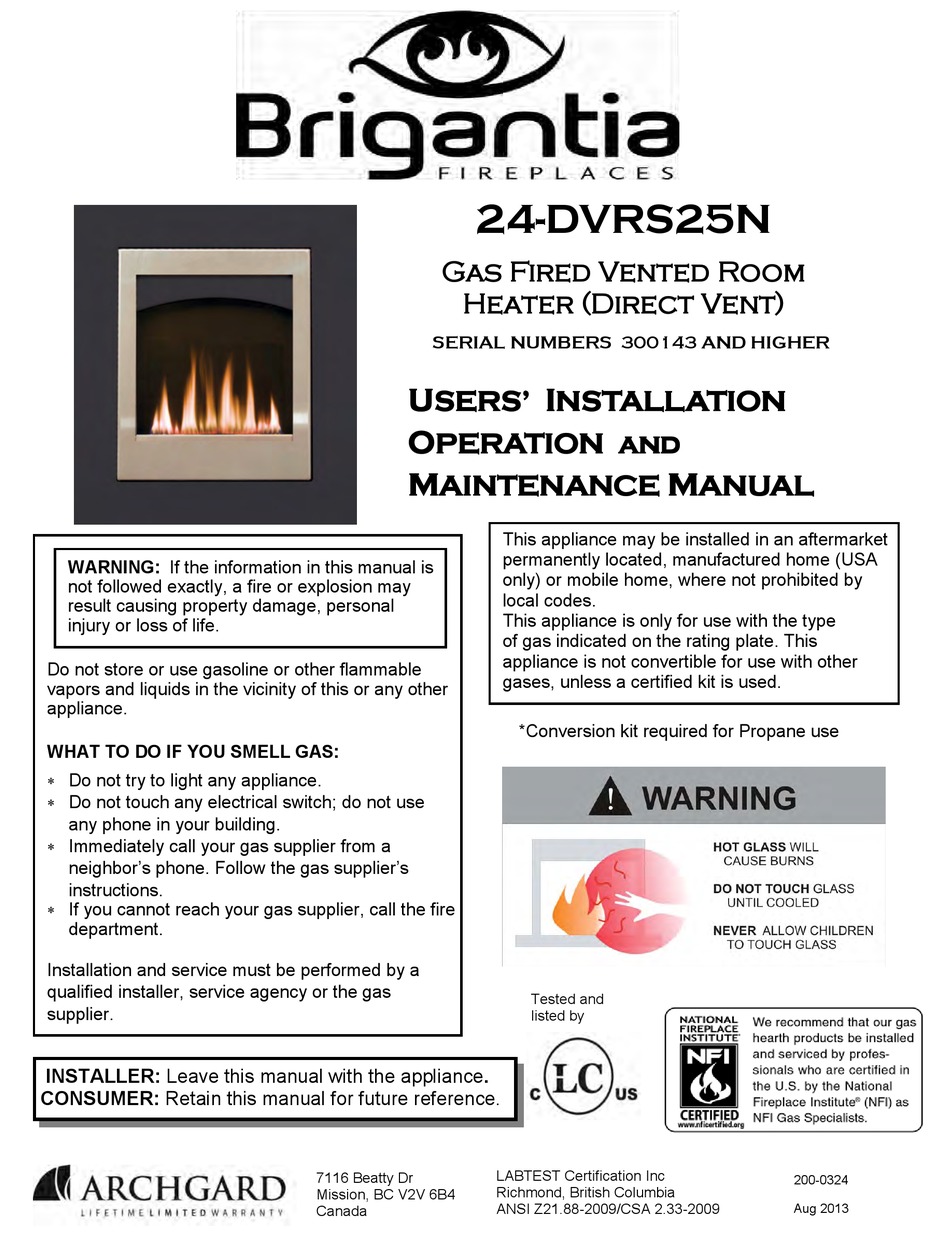

24-DVRS25N
Gas Fired Vented Room
Heater (Direct Vent)
SERIAL NUMBERS 300143 AND HIGHER
U
SERS'
O
PERATION and
M
AINTENANCE
7116 Beatty Dr
Mission, BC V2V 6B4
Canada
I
NSTALLATION
M
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
*Conversion kit required for Propane use
Tested and
listed by
LABTEST Certification Inc
Richmond, British Columbia
ANSI Z21.88-2009/CSA 2.33-2009
ANUAL
200-0324
Aug 2013
Advertisement
Table of Contents
Related Manuals for Brigantia 240DVRS25N
Summary of Contents for Brigantia 240DVRS25N
- Page 1 24-DVRS25N Gas Fired Vented Room Heater (Direct Vent) SERIAL NUMBERS 300143 AND HIGHER SERS’ NSTALLATION PERATION and AINTENANCE ANUAL This appliance may be installed in an aftermarket permanently located, manufactured home (USA WARNING: If the information in this manual is only) or mobile home, where not prohibited by not followed exactly, a fire or explosion may local codes.
- Page 2 STATE OF MASSACHUSETTS REQUIREMENTS 5.08: Modifications to NFPA-54, Chapter 10 (2) Revise 10.8.3 by adding the following additional requirements: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:...
- Page 3 Optional Accessories Check with your Authorized Brigantia Dealer for a full complement of decorative accessories to suit your home’s décor and your tastes. Electronic Control System The 24-DVRS25N uses a gas control valve that is operated by a Multifunction Remote Control.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Caution and Safety Instructions Appliance Certification, Installation Codes and Specifications Rating Plate Appliance Dimensions and Framing Dimensions Installation Instructions Clearance to Combustibles Venting Instructions Aeration Adjustment Gas Connections Conversion Kit Instructions Final Installation Check and Initial Operation First Fire and Lighting Instructions (CAUTION) Lighting Instructions on Rating Plate Remote Control Setup and Operation... - Page 5 24-DVRS25N CAUTION FOR YOUR SAFETY - Do not install or operate your Brigantia 24-DVRS25N without reading and understanding this manual. Any installation or operational deviation from this instruction manual voids the Archgard Industries Warranty and may prove hazardous. This appliance must be installed by a qualified gas installer and the installation must conform to the installation codes.
- Page 6 24-DVRS25N APPLIANCE CERTIFICATION This appliance was listed by LABTEST Certification Inc to the following USA and Canadian gas appliance standards. - ANSI Z21.88-2009/CSA 2.33-2009 Vented Gas Fireplace Heaters - CAN/CGA-2.17-M91, Gas-Fired Appliances for Use at High Altitudes -CSA P.4.1-09 testing method for measuring annual fireplace efficiency. The listing label is attached to the appliance on the bottom right side of the appliance.
-
Page 7: Rating Plate
24-DVRS25N RATING PLATE DO NOT REMOVE THIS LABEL NG / NATURAL # de série Serial # LP / PROPANE NE PAS ENLEVER CETTE ÉTIQUETTE 24-DVRS25N MODEL / MODÈLE: LISTED VENTED GAS FIREPLACE HEATER and GAS-FIRED APPLIANCES FOR USE AT HIGH ALTITUDES. RADIATEUR VENTILE, CIRCULATEUR DU TYPE VENTILATEUR. - Page 8 24-DVRS25N APPLIANCE DIMENSIONS Surround Installed Surround Removed...
-
Page 9: Installation Instructions
24-DVRS25N Framing Dimensions Construct the opening to dimensions shown: The following section describes in detail the requirements for framing for the 26 1/2” wide x 39 1/2” model 24-DVRSE25N. high X 5 1/2” deep 10” 254 mm Note: Framing should be constructed Unit must be min 4”... - Page 10 24-DVRS25N Installation Instructions Cont. Install the inside portion of the wall thimble and seal the entire inside with a high temperature sili- cone sealant. This is critical to prevent cold drafts. See figure 4 Install the nailing flanges provide by screwing them to the side of the outer shell using the hole required for the facing material.
-
Page 11: Nailing Flanges
24-DVRS25N Nailing Flanges Install the nailing flanges provided, by screwing them to the side of the outer shell using the appropriate holes for the facing material. Place the fireplace into the framed opening and secure the nailing flanges to the wall. Mantle Clearances Clearance to Combustibles Minimum measurements below are from the edge... -
Page 12: Electrical Requirements
999-DV-HTC is required. Electrical Requirements The Brigantia 24-DVRS25N requires 120v for the operating system. There is a factory installed electrical box to accommodate the connections. (see wiring diagram pg. 36) The fireplace comes complete with a battery back-up system that will operate the fireplace for a limited time in the event of a power outage. - Page 13 24-DVRS25N Installation Instructions Cont. VENTING Clearance to combustibles The following clearances must be maintained around the vent pipe: Vertical runs: 1” Horizontal runs: 2” on top, 1” sides and bottom IMPORTANT: This appliance venting system is a sealed system (DV), which means that all combus- tion air is supplied from outdoors and the combustion products are exhausted to the outdoors.
- Page 14 24-DVRS25N Installation Instructions Cont. Horizontal Wall Vent Terminations When the termination is to be attached to vinyl siding apply a bead of non-hardening mastic around the The position of the horizontal vent termination outside edge to form a seal between the standoff must be positioned in such a way as to meet all and the terminal.
- Page 15 24-DVRS25N Installation Instructions Cont. Pitch (Ratio) ‘X’ Vertical Cap Installations Always maintain a 1” clearance around the vent pipe (vertical) and on horizontal venting 2” clearance on the 0/12 - 2/12 4” top of the vent, when passing through ceilings, walls, roofs, enclosures, attic rafters or any combustible sur- 2/12 - 7/12 5 ½”...
- Page 16 24-DVRS25N Installation Instructions Cont. Figure 22 – Vent Termination Locations Horizontal Installation Do not install above a meter/regulator assembly within 3 The horizontal run must have a 1/4” rise per foot and must meet feet (90 cm) horizontally from the centerline of the meter/ regulator.
- Page 17 24-DVRS25N Installation Instructions Cont. Venting Chart Maximum Total NG Venting Length Restrictor Maximum total venting allowed is 45’. Maxi- Setting #3 mum vertical vent is 35’. Maximum horizontal vent is 20’. Minimum 7’ vertical vent rise re- quired for maximum 20’ horizontal vent run. Venting Examples Example A: 3ft vertical rise / 1 90˚...
- Page 18 24-DVRS25N WIRING SCHEMATICS INSTALLATION NOTE The SIT Control Module is powered by 120V with an internal transformer for the valve. This is pre-wired to the factory installed electrical box for the electrician. Some jurisdictions may require you install a service switch in the factory supplied electrical box or a remote location.
-
Page 19: Gas Connections
24-DVRS25N GAS CONNECTIONS Before connecting the appliance to the gas supply line, double check that the appliance you have purchased is designed for the gas type you are using. The gas type markings are located on the certification label and also on the appliance’s gas valve. Adequate clearance for proper installation and checking of the gas connections must be provided. - Page 20 24-DVRS25N CHECKING INLET AND OUTLET GAS PRESSURE 1. Remove the surround. 2. The pressure test taps are located on the valve. The taps are located in the gas valve front face. The inlet is marked ‘IN’ and the outlet is marked ‘OUT’. See Fig.1. 3.
- Page 21 24-DVRS25N Contemporary Panels ITEM # PART NUMBER DESCRIPTION QTY. 311-6381-FB PANEL REAR 311-6382-FBR SIDE PANEL RIGHT 311-6283-FBL SIDE PANEL LEFT 311-6284-FBT PANEL TOP...
-
Page 22: Door Removal
24-DVRS25N Component Removal NOTE: Do not remove any components while the appliance is hot. Door Removal Release the latch located on the bottom of door. To release pull forward then press down. Remove the door by pulling the bottom out to 30 de- grees and lift upward to release the 2 latches at the top of the door. - Page 23 24-DVRS25N FINAL INSTALLATION CHECK Each Brigantia Gas Fireplace is checked and tested at the factory prior to being packaged and shipped to our dealers and finally installed in your home. Brigantia recommends that before leaving this unit with the customer, the installer must ensure that the appliance is firing correctly and that the electrical system is in working order.
-
Page 24: Lighting Instructions On Rating Plate
24-DVRS25N LIGHTING INSTRUCTIONS ON RATING PLATE... - Page 25 24-DVRS25N FIRST FIRE When operated for the first few times, the appliance will emit some odor and fumes. This is due to the heat from the appliance evaporating the oils and solvents used in fabricating the appliance. Close off the room to the rest of the house and open all windows. Keep the room well ventilated, as smoke alarm may sound.
-
Page 26: Remote Control Setup And Operation
24-DVRS25N REMOTE CONTROL SETUP AND OPERATION... - Page 27 24-DVRS25N REMOTE CONTROL SETUP AND OPERATION, cont.
- Page 28 24-DVRS25N REMOTE CONTROL SETUP AND OPERATION, cont.
- Page 29 24-DVRS25N REMOTE CONTROL SETUP AND OPERATION, cont. Note: When the fireplace is started in Smart Thermostat mode, the fan will come on 5min after ignition and shut down 12min after fire is turned off...
- Page 30 24-DVRS25N REMOTE CONTROL SETUP AND OPERATION, cont.
- Page 31 24-DVRS25N REMOTE CONTROL SETUP AND OPERATION, cont. The unit is shipped from the factory with the ability for IPI/CPI selection active. To disable the Continuous Pilot selection ability, cut one of the wires (blue or white) shown in the picture and cap them off to prevent shorting.
- Page 32 24-DVRS25N REMOTE CONTROL SETUP AND OPERATION, cont.
- Page 33 Regularly: Frequent cleaning of the ceramic glass is required. Brigantia recommends using a good quality “gas fireplace” glass cleaner that is available at any hearth retail location. DO NOT CLEAN WHILE HOT.
- Page 34 24-DVRS25N CONVERSION KIT INSTRUCTIONS IMPORTANT: This fireplace is Natural gas ready. If converting to LP gas, follow instructions below WARNING: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturers instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or productions of carbon mon- oxide may result, causing property damage, personal injury or loss of life.
- Page 35 24-DVRS25N CONVERSION KIT INSTRUCTIONS CONT. VALVE CONVERSION...
- Page 36 24-DVRS25N CONVERSION KIT INSTRUCTIONS CONT. Complete the Conversion Fill out and attach conversion label to the fireplace near the valve Change Rating Plate to show new fuel configuration Reinstall the Burner, burner cover and glass media by reversing the removal process. Turn on the gas and electrical supplies.
-
Page 37: Servicing Under Warranty
24-DVRS25N SERVICING UNDER WARRANTY Before servicing, read the terms and conditions of the Brigantia warranty at the back of the manual. Contact the authorized Brigantia dealer where you purchased the appliance from and provide them with details of the problem, along with the initial installation information (from the front of this manual). - Page 38 24-DVRS25N REPLACEMENT PARTS LIST Item # Item Description Unit 200-0324 Owner’s Manual 308-6011 SIT Pro Flame II Electronic Control Module 308-6014 SIT Pro Flame II Handheld Transmitter 308-6017 SIT 885 Gas Valve c/w Step Motor 308-6012 Module Main Wiring Harness (5 wire) 305-0060 Battery Back-up Holder 301-0068...
-
Page 39: Frequently Asked Questions
Q. How do I care for my gold/nickel plated trims. A. Brigantia recommends a cleaning with a damp cloth. DO NOT use chemical cleaners as they may harm the finish, and void your warranty. NOTE: If the top louvers, or top overlay starts to discolor, check the door gasket seal and replace if necessary. - Page 40 24-DVRS25N NOTES...
- Page 41 This Limited Warranty is made by Archgard Industries, hereinafter referred to as “Brigantia”. Brigantia warrants to the original purchaser of an Brigantia gas burning fireplace (s) that the product will be free of defects in materials and workmanship under normal use and ser- vice, for a “lifetime”.
-
Page 42: Warranty Registration
POSTAGE WARRANTY REGISTRATION BRIGANTIA FIREPLACES 7116 BEATTY DRIVE MISSION, B.C. CANADA V2V 6B4 FOLD DOWN AT LINE FOLD DOWN AT LINE & TAPE CLOSED 24-DVRS25N Model # : Serial #: Date Installed: yyyy Name: Address: City: State/Prov: ZIP: Phone: ( _____ ) Dealer's Name &... - Page 43 ARCHGARD FIREPLACES 7116 Beatty Drive Mission, B.C. V2V 6B4 Canada Website: www.archgard.com...
