Start-up
FIG.6
Start-up
Before connecting to the mains supply, be sure that the supply voltage is identical with
the value given on the rating plate.
•
Unscrew the container from the spray gun.
•
Aligning suction tube. (Fig. 2)
If the suction tube is positioned correctly, the container contents can be sprayed without
almost any residue.
When working on lying objects: Turn the suction tube forwards. (Fig. 2 A)
Spraying work when working on overhead objects: Turn the suction tube rearwards. (Fig.
2 B)
•
Set the container on a sheet of paper, pour in the prepared coating material and
screw the container tightly onto the spray gun.
•
Put the machine down only on a level, clean surface. Otherwise the machine could
tip over!
•
Adjust the spray setting on the spray gun.
Three different spray jet settings can be chosen on the spray gun, depending on
the application and target object.
Selecting the Spray Setting

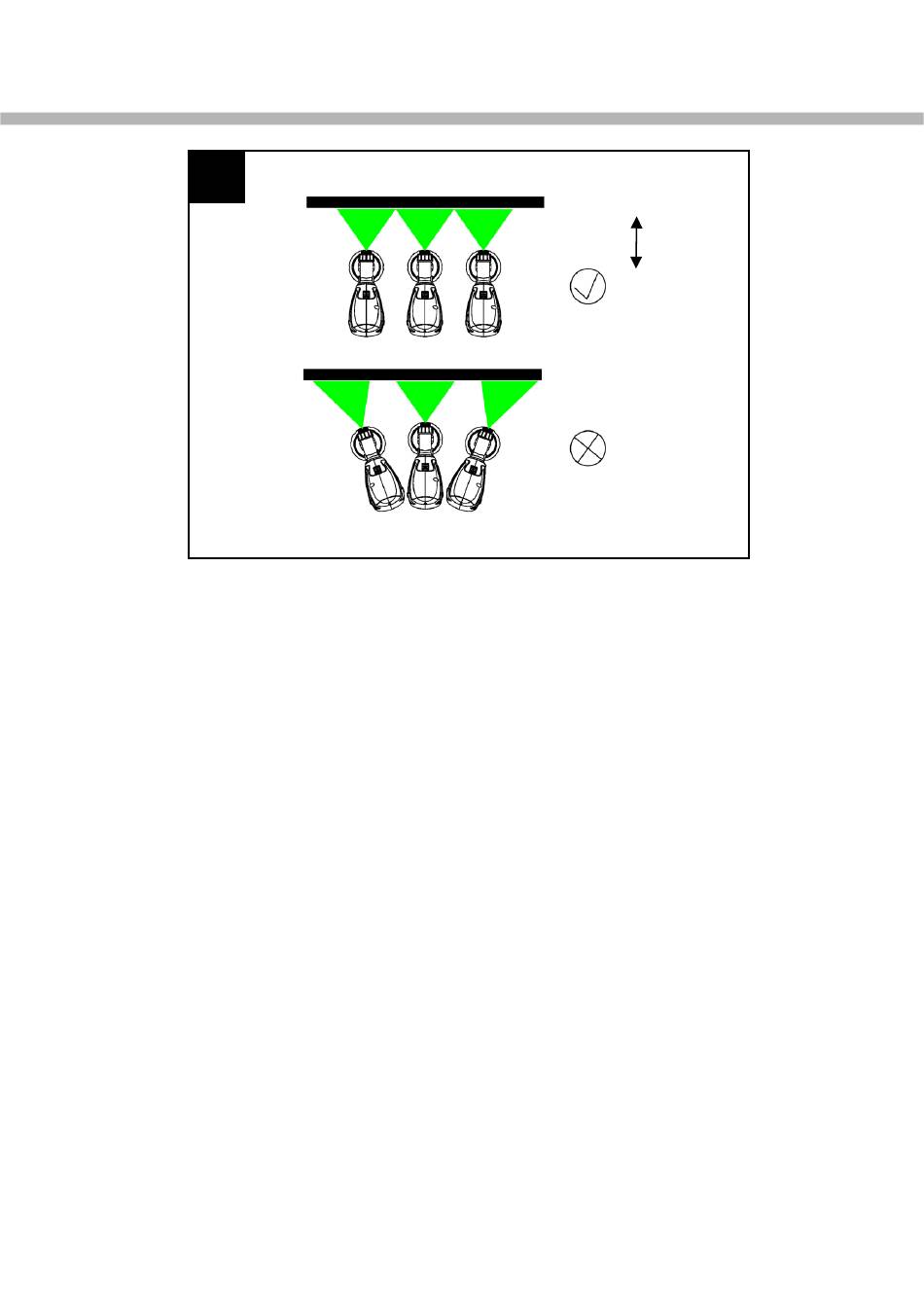

Fig. 3 A = horizontal fat jet
A
B
10-30cm
10
