- Page 1 SPRAY GUN 322789 JS-HH15A Warning! When using electric tools, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock and personnal injury. Read all these instructions before operating this product and save these instructions.
-
Page 2: Table Of Contents
TABLE OF CONTENTS For safe operations Safety Instructions for Spray Guns Description Start-up Spray Technique Maintenance Correction of Malfunctions Environmental protection... -
Page 3: For Safe Operations
For safe operations For safe operations: 1) Work area a. Keep work area clean and well lit. Cluttered and dark areas invite accidents. b. Consider work area environment. Do not expose power tools to rain. Do not use power tools in damp or wet locations. Keep work area well lit. Do not use power tools where there is risk to cause fire or explosion. - Page 4 For safe operations c. Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents. d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
-
Page 5: Safety Instructions For Spray Guns
Safety Instructions for Spray Guns j. If the mains cable has been damaged, it must be replaced with a special mains cable. These can be obtained from the manufacturer or the manufacturer's customer service department. The mains cable may only be replaced by the manufacturer, the manufacturer's customer service department or equally qualified persons. - Page 6 To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine. JS-HH15A Rated voltage 230-240V ~ Rated input power...
- Page 7 Safety Instructions for Spray Guns Wear hearing protection while operating the power tool. The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure.
-
Page 8: Description

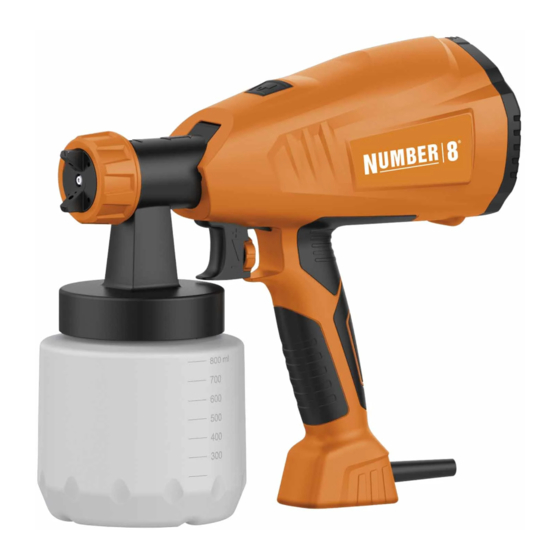

Description FIG.1 Description (Fig. 1) Air Cap Nozzle Union nut Spray gun front part Trigger Release button Spray gun rear part Air filter cover Material volume adjustment Mains lead 11) Container... - Page 9 Description Coating Materials Suitable for Use Water- and solvent-based paints, fnishes, primers, 2-component paints, clear fnishes, automotive fnishes, staining sealers and wood sealer-preservatives. Coating Materials Not Suitable for Use Wall paints (emulsion paints) etc., alkali and acidic paints. Coating materials with a fash point below 55°C.
- Page 10 Description FIG.3 FIG.4 FIG.5...
-
Page 11: Start-Up
Start-up FIG.6 10-30cm Start-up Before connecting to the mains supply, be sure that the supply voltage is identical with the value given on the rating plate. • Unscrew the container from the spray gun. • Aligning suction tube. (Fig. 2) If the suction tube is positioned correctly, the container contents can be sprayed without almost any residue. -
Page 12: Spray Technique
Start-up Fig. 3 B = circular jet Fig. 3 C = vertical fat jet The spray pattern indication can be found on the front part of the sprayer. With the arrowhead towards the boss on the tip. Spray pattern indicator Boss on the tip Adjusting the desired Spray Setting (Fig. - Page 13 Spray Technique ■ Cover screw threads or similar parts of the target object. ■ It is advisable to test the spray gun on cardboard or a similar surface to find the correct setting. Important: Begin spraying outside of the target area and avoid interruptions inside the target area.
- Page 14 Spray Technique 1) Unplug the power plug. Vent the container in case of longer breaks and after the work has been terminated. This can be done by briefly turning open and then closing the container or by pulling the trigger guard and letting the paint into the original paint container.
-
Page 15: Maintenance
Maintenance FIG.9 7, air filter Maintenance Change the air filter if it is soiled (Fig. 9, item 7). WARNING! Never operate the machine without the air filter; dirt could be sucked in and interfere with the function of the machine. -
Page 16: Correction Of Malfunctions
Correction of Malfunctions Correction of Malfunctions Problem Cause Remedy No coating material Nozzle clogged Clean emerges from the nozzle Feed tube clogged Clean Material volume setting Turn to the upside (+) turned too far to the downside (-) Insert Feed tube loose Tighten container No pressure build-up in Thin... -
Page 17: Environmental Protection
Environmental protection Environmental protection The appliance and accessories should be recycled in an environmentally friendly way. Do not dispose of the appliance with household waste. Support environmental protection by taking the appliance to a local collection point or obtain information from a specialist retailer.
