System Overview

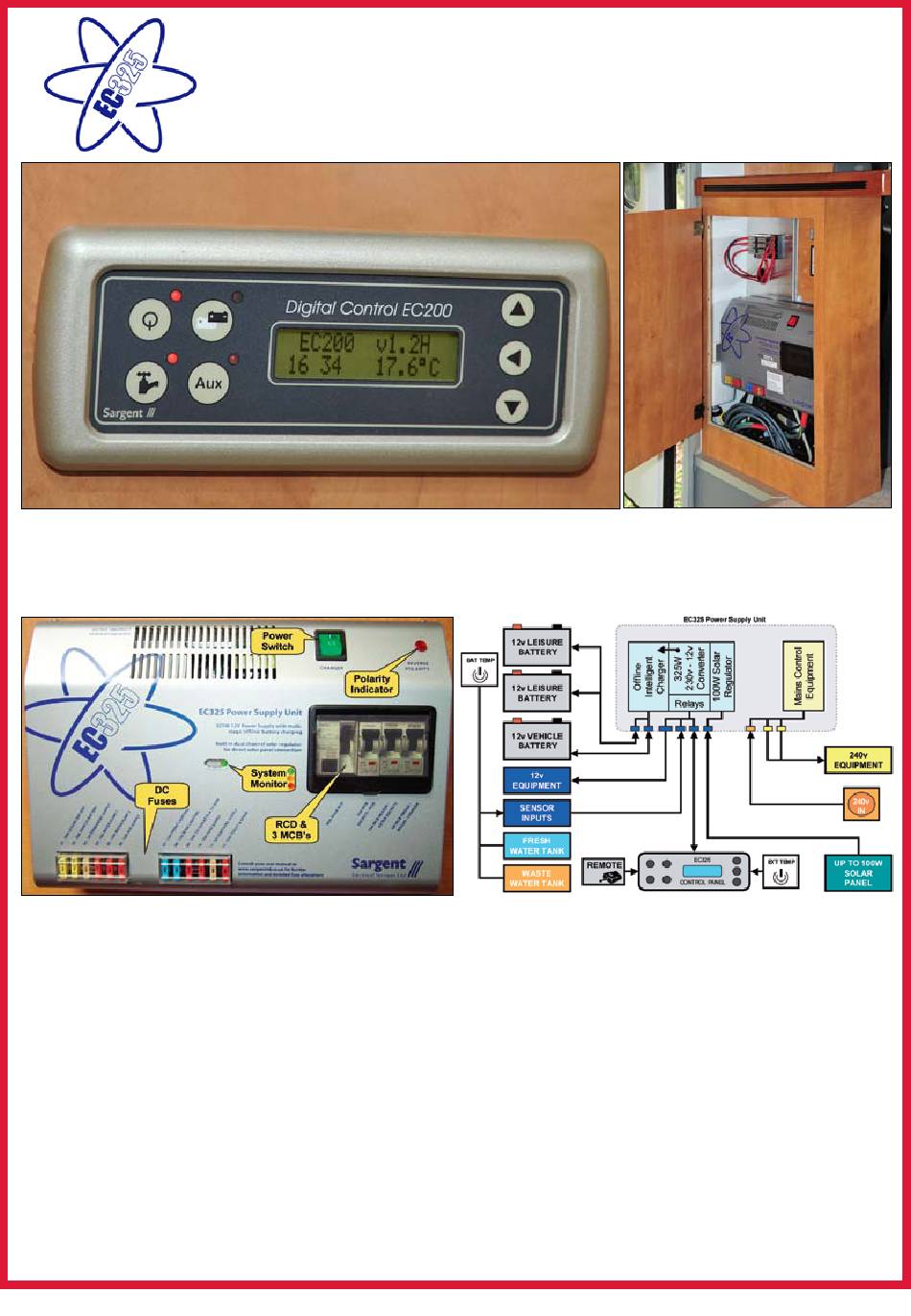

These diagrams show the typical configuration of the EC325 system.

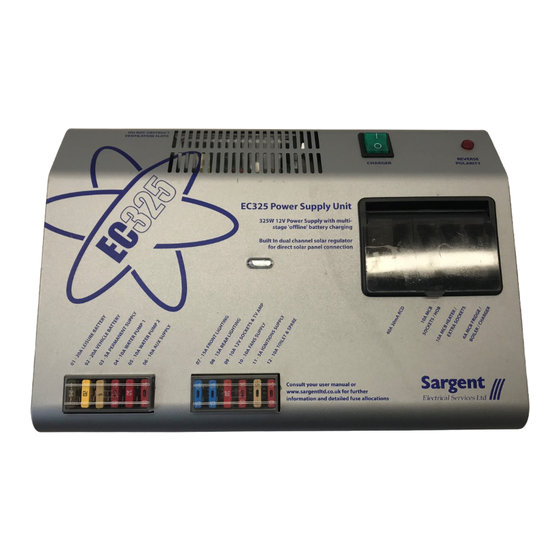

The key component is the EC325 power supply unit (PSU), which is the hub of the system and provides
connectivity to the ancillary components and the EC325 digital control panel.

EC325 Power Control System Overview - Key Features

• 325W (~25A) Power Converter - Converts the 240v mains supply into 12v DC power to run the leisure
equipment and supply the battery charger.
• Intelligent 'offline' Battery Charger - Uses a process of disconnecting the leisure battery from the leisure
equipment during the charging process, which allows the battery charger to charge batteries quicker,
recover heavily discharged batteries and achieve a higher final charge level than traditional battery chargers.
• Built-in dual Solar Regulator - Allows the direct connection of a 20 to 100W solar panel without the need for
additional components. The dual regulator charges both the vehicle and leisure batteries simultaneously.
• System Monitor Circuit - Monitors key components within the power supply to ensure optimum operation.
A simple 'traffic light' indicator shows the power supply status.
• Enhanced Digital Control Panel - With scrolling menu system, battery condition (voltage and current),
water tank levels, tank and battery level warnings with battery protect circuit, alarm clock and programmable
event timer for automatic operation for 12v diesel heater, lighting, alarm system & 240v airconditioner via a relay.
• The key component is the EC325 power supply unit (PSU), which is the hub of the system and provides
connectivity to the ancillary components and the EC325 digital control panel.
Ask us to demonstrate the Sargent EC325 - Power Supply Unit
and see the many innovative features of this revolutionary PSU!
ECU325PSU_4PPBrochure_V3_b9022.indd 1
EC325 - PSU
RV Industries Most Innovative Power Supply Unit
is used in the Wirraway 260, The Motorhome of the Year!
