1 Key Features

·
325W (~25A) Power Converter - Converts the 230V mains supply into 12v DC power to run
the leisure equipment and supply the battery charger.
·
Intelligent 'offline' Battery Charger - Uses a process of disconnecting the leisure battery from
the leisure equipment during the charging process, which allows the battery charger to
charge batteries quicker, recover heavily discharged batteries and achieve a higher final
charge level than traditional battery chargers.
·
Built-in dual Solar Regulator - Allows the direct connection of a 20 to 100W solar panel
without the need for additional components. The dual regulator charges both the vehicle and
leisure batteries simultaneously.
·
System Monitor Circuit - Monitors key components within the power supply to ensure
optimum operation. A simple 'traffic light' indicator shows the power supply status.
·
Enhanced Digital Control Panel - With scrolling menu system, battery condition (voltage and
current), water tank levels, tank and battery level warnings with battery protect circuit, alarm
clock and programmable event timer.

2 System Overview

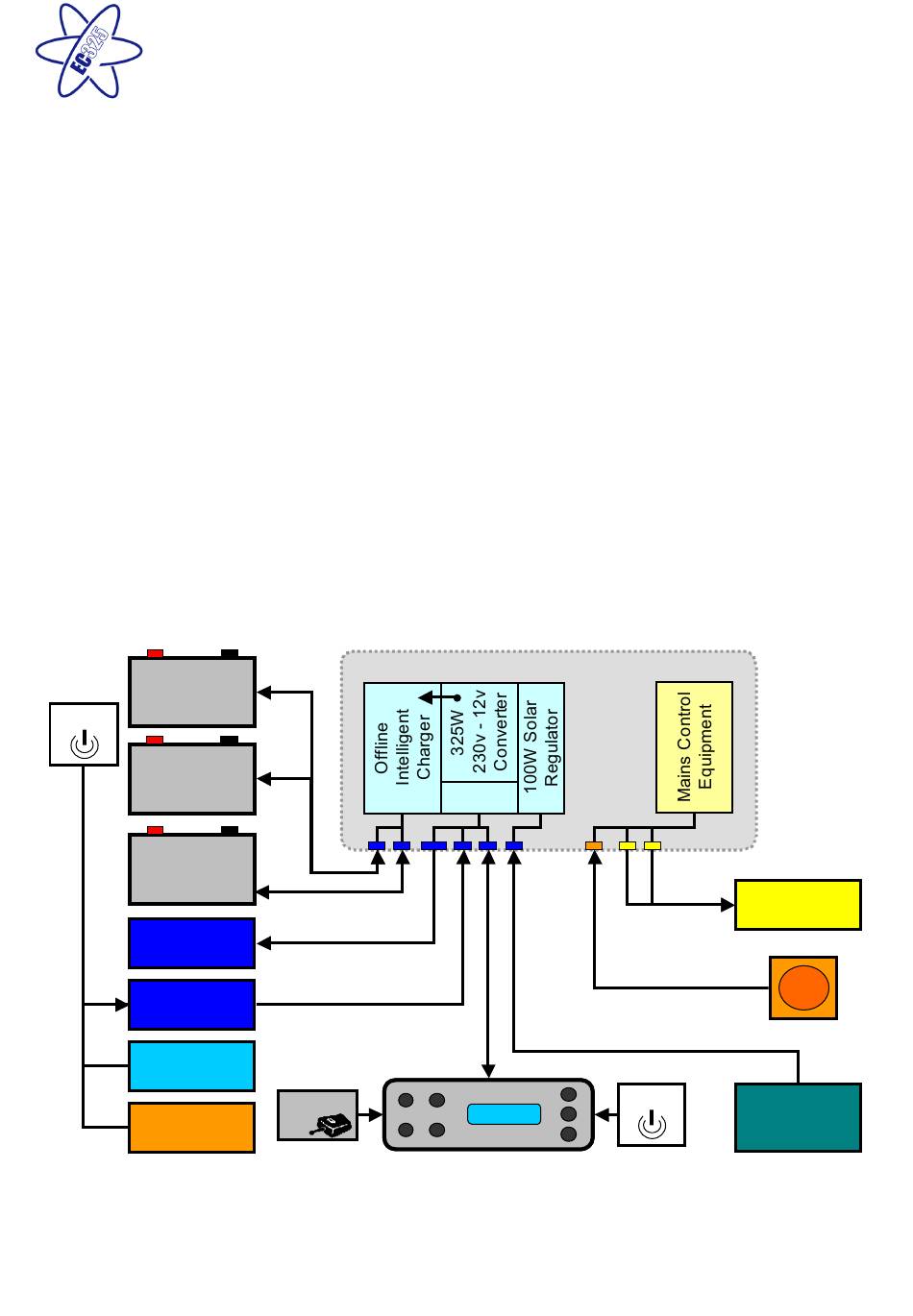

The following diagram shows the typical configuration of the EC325 system. The key component is
the EC325 power supply unit (PSU), which is the hub of the system and provides connectivity to the
ancillary components and the EC325 digital control panel.
12v LEISURE
12v LEISURE
BATTERY
BATTERY
BAT TEMP
BAT TEMP
12v LEISURE
12v LEISURE
BATTERY
BATTERY
12v VEHICLE
12v VEHICLE
BATTERY
BATTERY
12v
EQUIPMENT
SENSOR
INPUTS
FRESH
WATER TANK
WASTE
WATER TANK
Issue 02
EC325 Power Control System
EC200
EC200
Relays
Relays
REMOTE
REMOTE
Page 1 of 16
EC325 Power Supply Unit
EC325
EC325
EXT TEMP
EXT TEMP
CONTROL PANEL
CONTROL PANEL
240v
EQUIPMENT
240v
240v
IN
IN
UP TO 100W
SOLAR
PANEL
12 December 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EC325 and is the answer not in the manual?

Questions and answers

Related Manuals for Sargent EC325

Summary of Contents for Sargent EC325

  • Page 1: Key Features

    The following diagram shows the typical configuration of the EC325 system. The key component is the EC325 power supply unit (PSU), which is the hub of the system and provides connectivity to the ancillary components and the EC325 digital control panel.

  • Page 2: Power Supply Details

    Failure to comply with this warning may lead to equipment damage and will affect the battery charger performance. The EC325 system also incorporates a battery compartment temperature sensor (see photograph), which monitors the battery ambient temperature to allow the charger to adjust the charging current if the battery is very cold or hot.

  • Page 3: System Monitor

    Template Instructions EC325 Power Control System <<Delete before use>> 3.2 Residual Current Device & Miniature Circuit Breakers The Residual Current Device (RCD) is basically provided to protect the user from lethal electric shock. The RCD will turn off (trip) if the current flowing in the live conductor does not fully return down the neutral conductor, i.e.

  • Page 4: Power Converter

    Template Instructions EC325 Power Control System <<Delete before use>> 3.4 Power Converter The EC325PSU contains a power converter that powers the leisure equipment when the mains supply is connected. This module supplies 13.5v DC to the leisure equipment up to a maximum of 25 Amps (325 Watts).
  • Page 5 To prevent over discharge, the EC325 system incorporates a battery protect circuit that warns and then disconnects the batteries when they fall below the following conditions:...

  • Page 6: Control Panel Details

    Template Instructions EC325 Power Control System <<Delete before use>> 4 Control Panel Details 4.1 Layout and Buttons The following diagram shows the control panel layout and button functions. Battery Power Indicator Scroll Select ON / OFF Lamps x4 Up /...

  • Page 7: Vehicle Battery

    Template Instructions EC325 Power Control System <<Delete before use>> 4.2 Menu Functions - Readings section Display Description Options / Notes Main Control Panel display showing The addition of a asterisk (*) EC325 v1.3H model number (EC325), software in the top left of the display version number (v1.3), specification...

  • Page 8: Waste Water

    Template Instructions EC325 Power Control System <<Delete before use>> Display Description Options / Notes Water level in the waste water tank 0% < ½ Full Waste Water (2 measurement levels) 50% >= ½ Full (optional level 0% Full that is not normally fitted by...

  • Page 9: Water Tank Fill

    Template Instructions EC325 Power Control System <<Delete before use>> 4.3 Menu Functions - Settings section Display Description Options / Notes Shows the currently selected pump <INTERNAL> = The internal Pump Select? that will be operated by pressing the pump will be operated by the...

  • Page 10: Set Event Timer

    Template Instructions EC325 Power Control System <<Delete before use>> Display Description Options / Notes Access to set the event timer Please note the event timer Set Event Timer? uses a 24 hour cycle Press the select button (◄) to select HOUR ON...

  • Page 11: Warning Messages

    Template Instructions EC325 Power Control System <<Delete before use>> 4.5 Warning Messages This WARNING display indicates that the You can switch over to the Vehicle Vehicle battery voltage is low (10.9 volts or Leisure battery immediately Battery less). The panel will beep for one minute and...
  • Page 12 Template Instructions EC325 Power Control System <<Delete before use>> F) Check Miniature Circuit Breakers. Locate the MCB’s within the EC325PSU (adjacent to the RCD) and ensure they are all in the ON (up) position. If any MCB’s fail to latch in the on position see section 5.2.
  • Page 13 Other fault Contact your Dealer Fuse blown Replace fuse Turn pump on by pressing the pump button at the EC325 control Pump turned off panel (tap symbol) Pump not Both the internal and external pump feeds are controlled from the working EC325 control panel.

  • Page 14: Declaration Of Conformity

    Template Instructions EC325 Power Control System <<Delete before use>> 6 Technical Data & Approvals 6.1 Outline Specification INPUT 230v 230 Volts / 0 to 16 Amps + / - 10% RCD protected, 3 x MCB outputs of 10, 10 and 6A via 2 x...

  • Page 15: Electrical Connection

    Template Instructions EC325 Power Control System <<Delete before use>> 6.5 Electrical Connection A) Battery Input Connector Function Fuse Wire Colour Leisure battery input 1 BROWN / BLUE Vehicle battery input 1 BROWN / GREEN Battery common earth 1 WHITE / ORANGE...
  • Page 16 Template Instructions EC325 Power Control System <<Delete before use>> D) 12v Output Connector Function Fuse Wire Colour Ignitions YELLOW / GREEN Not Used Radio / Entertainment BROWN / YELLOW Internal Pump GREEN / BLUE External Pump GREEN / WHITE Rear Lights 1...
