HMESW - SERIES
ASSEMBLY INSTRUCTIONS FOR
HMESWK/HMESWF

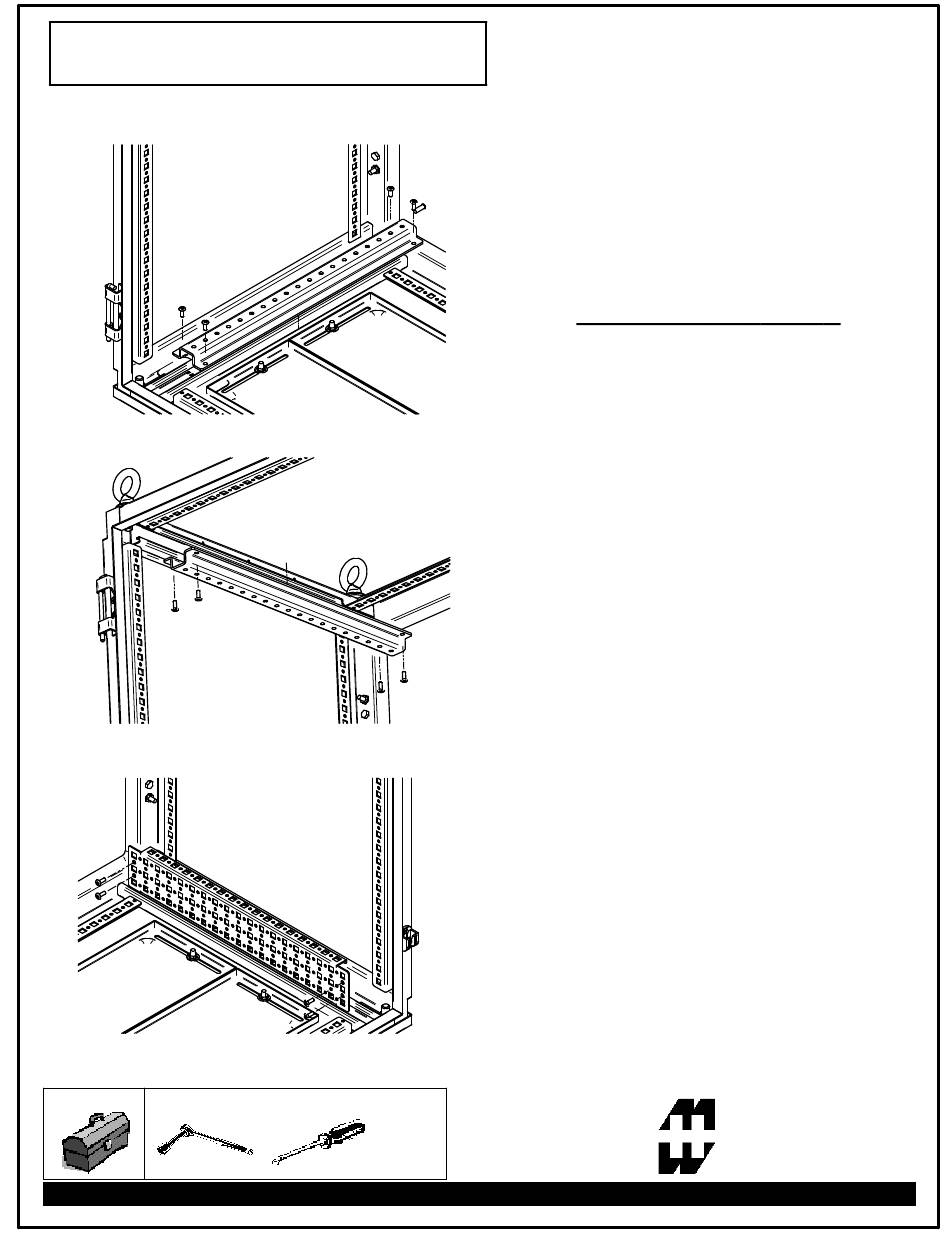

FIG 1. (BOTTOM VIEW)
FIG 1. (TOP VIEW)
7/16" Socket
TOOL BOX
Wrench
FIG 2.
Phillips
Screw Driver
ASSEMBLY INSTRUCTIONS:
A) Install adjustable depth rails in
the top and bottom of the frame. For
the bottom mount the hole closest to
the outside of the frame in the first
hole of the grid system (FIG 1.
bottom view) and secure with four
#12 thread rolling screws. For the
top mount the hole closest to the
outside of the frame to the third hole
on the grid system (FIG 1. top view)
and secure with four #12 thread
rolling screws.
B) Install the grid strap at the very bottom and
the very top of the frames grid system (FIG 2.).
Secure with four #12 thread rolling screws.
PAGE 1 OF 5
BUL86297
REV. C
HAMMOND
MANUFACTURING
TM
Advertisement
Table of Contents
Related Manuals for Hammond Manufacturing HMESW Series
Summary of Contents for Hammond Manufacturing HMESW Series
- Page 1 BUL86297 HMESW - SERIES REV. C ASSEMBLY INSTRUCTIONS FOR HMESWK/HMESWF ASSEMBLY INSTRUCTIONS: A) Install adjustable depth rails in the top and bottom of the frame. For the bottom mount the hole closest to the outside of the frame in the first FIG 1.
- Page 2 BUL86297 HMESW - SERIES REV. C ASSEMBLY INSTRUCTIONS FOR HMESWK/HMESWF C) The depth swing frame/panel will be installed by selecting one of the holes on the adjustable depth rails. Place the brass bushings in the center hole of the frame/panel top and bottom. *NOTE* for swing frame include stainless steel spacer between bushing and depth rail (See detail A).
- Page 3 BUL86297 HMESW - SERIES REV. C ASSEMBLY INSTRUCTIONS FOR HMESWK/HMESWF ITEM DESCRIPTION HME - Swing Frame Assembly HME - Swing Frame Depth Adjustment Rail Brass Bushing 1/4-20 X 1 Hex ZP NUT 1/4-20 Kep ZP HME- Front To Back Grid Strap (3 Row) HME - Swing Frame Latch Bracket...
- Page 4 BUL86297 HMESW - SERIES REV. C ASSEMBLY INSTRUCTIONS FOR HMESWK/HMESWF ITEM DESCRIPTION HME - Swing Frame HME - Swing Frame Depth Adjustment Rail Screw - #12 X 1/2" Pan head Phillips Self Tapping 1/4-20 X 1 Hex ZP Screw 3/8-16 X 2.75 Hex Head HME - Swing Frame Top Bolt Bracket HME - Swing Frame Bottom Bolt...
- Page 5 BUL86297 HMESW - SERIES REV. C ASSEMBLY INSTRUCTIONS FOR HMESWK/HMESWF ITEM DESCRIPTION HME GALV INNER PANEL SCREW 3/8-16 X 1.25" HEX HME - SWING FRAME TOP BOLT BRACKET SCREW - #12 X 1/2" PAN HEAD PHILLIPS SELF TAPPING Brass BUSHING 1/4-20 X 1 HEX ZP NUT 1/4-20 KEP ZP REAR VIEW...
