SOUNDBAR MOUNT
DESIGNED FOR
Sonos Beam™
WSSBM1-B2
INSTRUCTION MANUAL
.

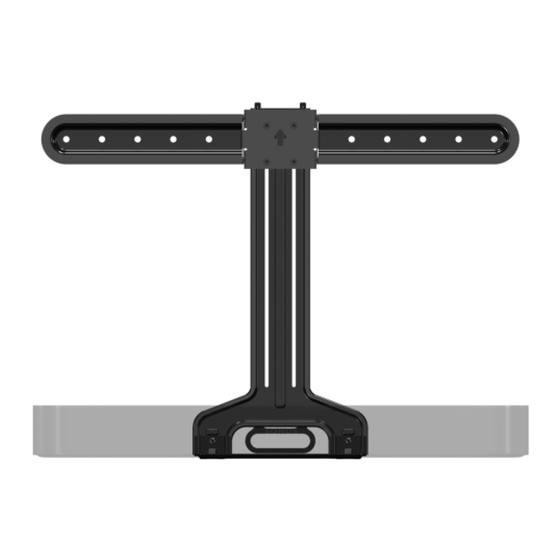

This mount is designed to support Sonos
Beam™ soundbar and works with SANUS and other TV mount brands
®
LANGUAGES
Visit: http://san.us/2767
WE'RE HERE TO HELP
If you have any questions along the way, our install experts are standing by to help.
US:
+31 (0) 495 580 852
1-800-359-5520
Call us at:
UK:
(0) 800 056 2853
/
(EU)
info@sanus.com
sanus.europe@legrand.com
Or, email at:
Advertisement
Table of Contents
Related Manuals for Sanus Sonos Beam WSSBM1-B2
Summary of Contents for Sanus Sonos Beam WSSBM1-B2
- Page 1 DESIGNED FOR Sonos Beam™ WSSBM1-B2 INSTRUCTION MANUAL This mount is designed to support Sonos Beam™ soundbar and works with SANUS and other TV mount brands ® LANGUAGES Visit: http://san.us/2767 WE’RE HERE TO HELP If you have any questions along the way, our install experts are standing by to help.
- Page 2 SUPPLIED PARTS AND HARDWARE Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, DO NOT return the damaged item to your dealer; contact Sanus (see back page). Never use damaged parts! WARNING: CHOKING HAZARD —...
- Page 3 DIMENSIONS TV INTERFACE 23.62in 600mm 7.88in 200mm SPEAKER INTERFACE TOP VIEW - TV MOUNTED 2.27in 57.7mm 14.76in 375mm 1.77in 45mm 1.75in 1.75in 44.5mm 44.5mm 6.00in 152.4mm 4.89in 4.71in 124.2mm 119.5mm FULLY ASSEMBLED MOUNT TOP VIEW SIDE VIEW 26.39in 670.3mm 2.76in 70.2mm 19.37in 492.1mm...
- Page 4 ASSEMBLE AND ATTACH SOUNDBAR MOUNT Assemble the soundbar brackets with 4 screws Line up soundbar bracket and spacers with TVs prethreaded mounting holes DO NOT ATTACH MOUNT TO TOP OF TELEVISION.
- Page 5 Secure TV mount bracket and soundbar mount to TV DO NOT OVERTIGHTEN COULD DAMAGE MONITOR OR HARDWARE Screw Washer Washer Bracket Spacer Ideal Setup Select Screws Screw Washer Washer Spacer Spacer Bracket TV MOUNT Spacer Spacer Mount TV TV MOUNT...
- Page 6 ATTACH SOUNDBAR TO MOUNT Attach shelf bracket to vertical assembly Attach soundbar to shelf bracket Push soundbar bracket up to lock into place Slide up release handle and attach cables (Optional) Leave 1/2”(1.27 cm) to 1”(2.54 cm) gap for microphone performance...
- Page 7 ADJUST SOUNDBAR SHELF UP ADJUST SOUNDBAR SHELF DOWN NOTE: YOU MUST PUSH UP ON THE CAUTION! SUPPORT THE SOUNDBAR BOTTOM OF SOUNDBAR BRACKET TO AS YOU PULL ON THE RELEASE HANDLE UNLOCK THE MOUNT. AND LOWER THE SOUNDBAR BRACKET.
- Page 8 6436 City West Parkway Eden Prairie, MN 55344 USA ©2020 Legrand AV Inc. All rights reserved. Sanus is a division of Legrand. All other brand names or marks are used for identification purposes and are trademarks of their respective owners. 6901-602638-00...
