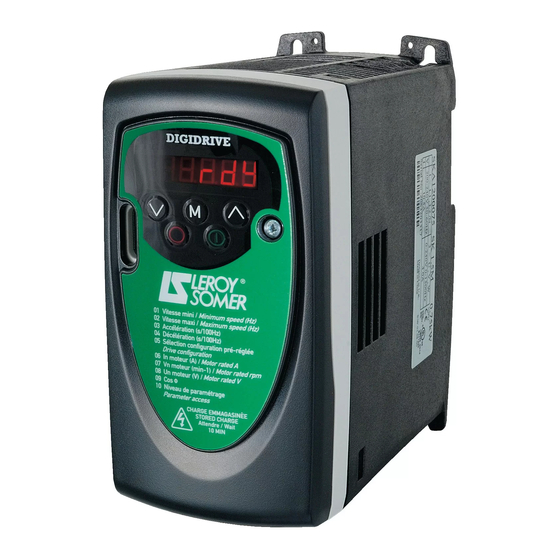

Summary of Contents for Leroy-Somer DIGIDRIVE SK Series
- Page 2 To this end, we operate an Environmental Management System (EMS) which is certified to the International Standard ISO 14001. The electronic variable speed drives manufactured by LEROY-SOMER have the potential to save energy and (through increased machine/process efficiency) reduce raw material consumption and scrap throughout their long working lifetime.
-
Page 3: Table Of Contents
Ground connections ..........................29 11.6 Ground leakage ...........................29 11.7 Use of earth leakage circuit breakers (ELCB)/residual current device (RCD) ........30 Options .........................31 12.1 Top cover kit ............................32 12.2 UL Type 1 Kit ............................32 Digidrive SK Technical Data Issue Number: a www.leroy-somer.com... -
Page 4: Technical Data
SKA12 SKA12 SKA12 SKA12 SKBD200110 SKBD200150 SKCD200220 00025 00037 00055 00075 Minimum braking resistor value (Ω) Recommended braking resistor value (Ω) Resistor peak power rating (kW) Maximum braking current (A) 14.8 14.8 Digidrive SK Technical Data www.leroy-somer.com Issue Number: a... -
Page 5: Digidrive Sk 400V Units
Table 1-8 Cooling fan 1.2T 1.5T 2.5T 4.5T 5.5T 3.5T MODEL SKB34 SKB34 SKB34 SKB34 SKB34 SKC34 SKC34 SKC34 00037 00055 00075 00110 00150 00220 00300 00400 Cooling fan fitted (feet /minute) Air flow /minute) Digidrive SK Technical Data Issue Number: a www.leroy-somer.com... -
Page 6: Derating Curves And Losses
'hot'. It is important that operating within these de-rating curves is observed. Figure 2-1 Digidrive SK Size A 0.25kW derating curve Output current (A) 3kHz 6kHz 12kHz 18kHz Ambient Temperature ( Digidrive SK Technical Data www.leroy-somer.com Issue Number: a... - Page 7 Figure 2-2 Digidrive SK Size A 0.37kW derating curve Output current (A) 3kHz 6kHz 12kHz 18kHz Ambient Temperature ( Figure 2-3 Digidrive SK Size A 0.55kW derating curve Output Current (A) 3kHz 6kHz 12kHz 18kHz Ambient Temperature (EC) Digidrive SK Technical Data Issue Number: a www.leroy-somer.com...
-
Page 8: Drive Losses
Table 2-2 Digidrive SK size A 0.37kW losses Loss (W) Ambient Temperature (°C) 3kHz 6kHz 12kHz 18kHz Table 2-3 Digidrive SK size A 0.55kW losses Loss (W) Ambient Temperature (°C) 3kHz 6kHz 12kHz 18kHz Digidrive SK Technical Data www.leroy-somer.com Issue Number: a... - Page 9 EMC filters Line chokes Supply types Options data and losses levels design installation lengths data specification Table 2-4 Digidrive SK size A 0.75kW losses Loss (W) Ambient Temperature (°C) 3kHz 6kHz 12kHz 18kHz Digidrive SK Technical Data Issue Number: a www.leroy-somer.com...
-
Page 10: Drive Voltage Levels
DC bus will never fall through point 2 and power down save parameters will not be saved. Low DC bus operation voltage levels (Pr 6.10 enabled) >425VDC - normal operation <330VDC - LoAC operation <230VDC - UV trip Digidrive SK Technical Data www.leroy-somer.com Issue Number: a... -
Page 11: Input Voltage
230V single phase supply (at a very much reduced output power) is possible on frame sizes B & C. On products without a DC bus choke (up to 4kW), the maximum supply capacity connected to the drive without using external line chokes will be 5kA short circuit current. Digidrive SK Technical Data Issue Number: a www.leroy-somer.com... -
Page 12: Dc Bus Design
Inrush Inrush Frame Voltage Rating Resistor in series Resistance Current (kW) (Ω) (Ω) 0.25 17.9 0.37 17.9 0.55 17.9 0.75 17.9 0.37 17.9 0.55 17.9 0.75 17.9 17.9 17.9 11.9 11.9 11.9 Digidrive SK Technical Data www.leroy-somer.com Issue Number: a... -
Page 13: Mechanical Installation
If the installation is going to be subjected to heavy shock and vibration, then it is recommended that the drive is surface mounted rather than DIN rail mounted Digidrive SK Technical Data Issue Number: a www.leroy-somer.com... - Page 14 If the installation is going to be subjected to heavy shock and vibration, then it is recommended that the drive is surface mounted rather than DIN rail mounted Digidrive SK Technical Data www.leroy-somer.com Issue Number: a...
- Page 15 Figure 5-3 Size C mounting dimensions Dimension 9.45 10.16 10.4 0.41 81.1 3.94 91.9 3.62 9.61 Holesize 4 x M4 Size C is not DIN rail mountable. Digidrive SK Technical Data Issue Number: a www.leroy-somer.com...
-
Page 16: Minimum Mounting Clearances
EMC filters Line chokes Options data and losses levels design installation lengths data specification types Minimum mounting clearances Figure 5-4 Minimum mounting clearances Drive size B (≤0.75kW) 0.39 0.39 3.94 B (≥1.1kW) Digidrive SK Technical Data www.leroy-somer.com Issue Number: a... -
Page 17: Emc Filters
SKCD200220 FS6514-24-07-LL 18.5 0.91 2.0 FS6514-14-07 11.8 0.75 1.7 137.2 3.5M/TL SKCD200220 FS6514-14-07-LL 11.8 0.74 1.6 18.3 SKC3400220 FS6514-14-07 11.8 0.75 1.7 137.2 3.5T to 5.5T FS6514-14-07-LL 11.8 0.74 1.6 18.3 SKC3400400 Digidrive SK Technical Data Issue Number: a www.leroy-somer.com... -
Page 18: Conformity
SKA1200055 and 1.5M SKA1200075 2M/TL to SKBD200110 to 2.5M/L SKBD200150 2M/TL to SKBD200110 to 2.5M/L SKBD200150 SKB3400037 to 1T to 2.5T SKB3400150 3.5M/TL SKCD200110 3.5M/TL SKCD200110 3.5T to SKC3400220 to 5.5T SKC3400400 Digidrive SK Technical Data www.leroy-somer.com Issue Number: a... - Page 19 There is some risk of disturbance to other equipment, and in this case the user and supplier of the drive system must jointly take responsibility for correcting any problem which occurs. Digidrive SK Technical Data Issue Number: a www.leroy-somer.com...
- Page 20 FS6514-14-07 (10.23in) (11.35in) (2.55in) (1.77in) (0.78in) (9.60in) (12.12in) (3.70in) (0.34in) (0.17in) 260mm 288.5mm 65mm 45mm 20mm 244mm 308mm 94mm 8.7mm 4.5mm FS6514-14-07-LL (10.23in) (11.35in) (2.55in) (1.77in) (0.78in) (9.60in) (12.12in) (3.70in) (0.34in) (0.17in) Digidrive SK Technical Data www.leroy-somer.com Issue Number: a...
-
Page 21: Line Chokes
Line chokes can be used to attenuate transient interference from the mains supply which could affect the drive. Table 7-1 Characteristics Current Inductance Digidrive SK ratings Seff reference 4.5A/16mH 0.5M to 1.2M Consult LEROY-SOMER 7.3A/1mH 1.5M and 2M/TL Consult LEROY-SOMER 19A/0.5mH 2.5M/TL and 3.5M/TL Consult LEROY-SOMER 1T to 3.5T 9 ST 2.5... -
Page 22: Motor Cable Lengths
The capacitive loading of the drive by the motor cable means that the cable length limits shown in table 8-1 must be observed. Failure to do so can result in spurious OI.AC tripping of the drive. If longer cable lengths are required, consult LEROY-SOMER. -
Page 23: General Data
1 octave/minute Duration: 15 minutes in each of 3 mutually perpendicular axes. 9.10.3 Bump Standard: IEC68-2-29: Test Eb Severity: 18g, 6ms, half sine Number of bumps: 600 (100 in each direction of axes) Digidrive SK Technical Data Issue Number: a www.leroy-somer.com... -
Page 24: Frequency Accuracy
Power ratings Condition Max SPL measurement (dBA) All ratings None contributed by drive (no fan). ≤0.75kW None contributed by drive (no fan). ≥1.1kW rd mode, fan on All ratings rd mode, fan on Digidrive SK Technical Data www.leroy-somer.com Issue Number: a... -
Page 25: I/O Specification
- AC supply applied to drive with drive in tripped condition. Operation of contact CLOSED - AC supply applied to drive with drive in a 'ready to run' or 'running' condition (not tripped) Digidrive SK Technical Data Issue Number: a www.leroy-somer.com... -
Page 26: Drive Reset
If both the run forward and run reverse terminals are closed, the drive will stop under the control of the ramp and stopping modes set in Pr 30 and Pr 31 Digidrive SK Technical Data www.leroy-somer.com Issue Number: a... -
Page 27: Sample/Update Times
Time for drive to respond to a run command 4.1ms 5.62ms 5.02ms Time for the drive to respond to a stop command 2.82ms 3.94ms 3.31ms Time for the drive to respond to a step change in analog input voltage 7.93ms Digidrive SK Technical Data Issue Number: a www.leroy-somer.com... -
Page 28: Supply Types
To ensure that the motor and cable are protected against overload, the drive must be programmed with the correct motor rated voltage. Digidrive SK Technical Data www.leroy-somer.com Issue Number: a... -
Page 29: Fuses
The drive is provided with two earth terminals to facilitate this. The purpose is to prevent a safety hazard occurring if the connection is lost. WARNING Digidrive SK Technical Data Issue Number: a www.leroy-somer.com... -
Page 30: Use Of Earth Leakage Circuit Breakers (Elcb)/Residual Current Device (Rcd)
Type B - detects AC, pulsating DC and smooth DC fault currents • Type AC should never be used with drives • Type A can only be used with single phase drives • Type B must be used with three phase drives Digidrive SK Technical Data www.leroy-somer.com Issue Number: a... -
Page 31: Options
SM-Keypad Plus keypad display to IP54 (NEMA 12) with additional help key Keypad LED keypad display option SK-Keypad Remote Remote panel mounting LED display to IP54 (NEMA 12) with additional function key Digidrive SK Technical Data Issue Number: a www.leroy-somer.com... -
Page 32: Top Cover Kit
1 x Conduit entry kit • 1 x Top Cover • 4 x Side Cover Digidrive SK size C • 1 x Conduit entry kit • 1 x Top Cover • 5 x Side Cover Digidrive SK Technical Data www.leroy-somer.com Issue Number: a...
