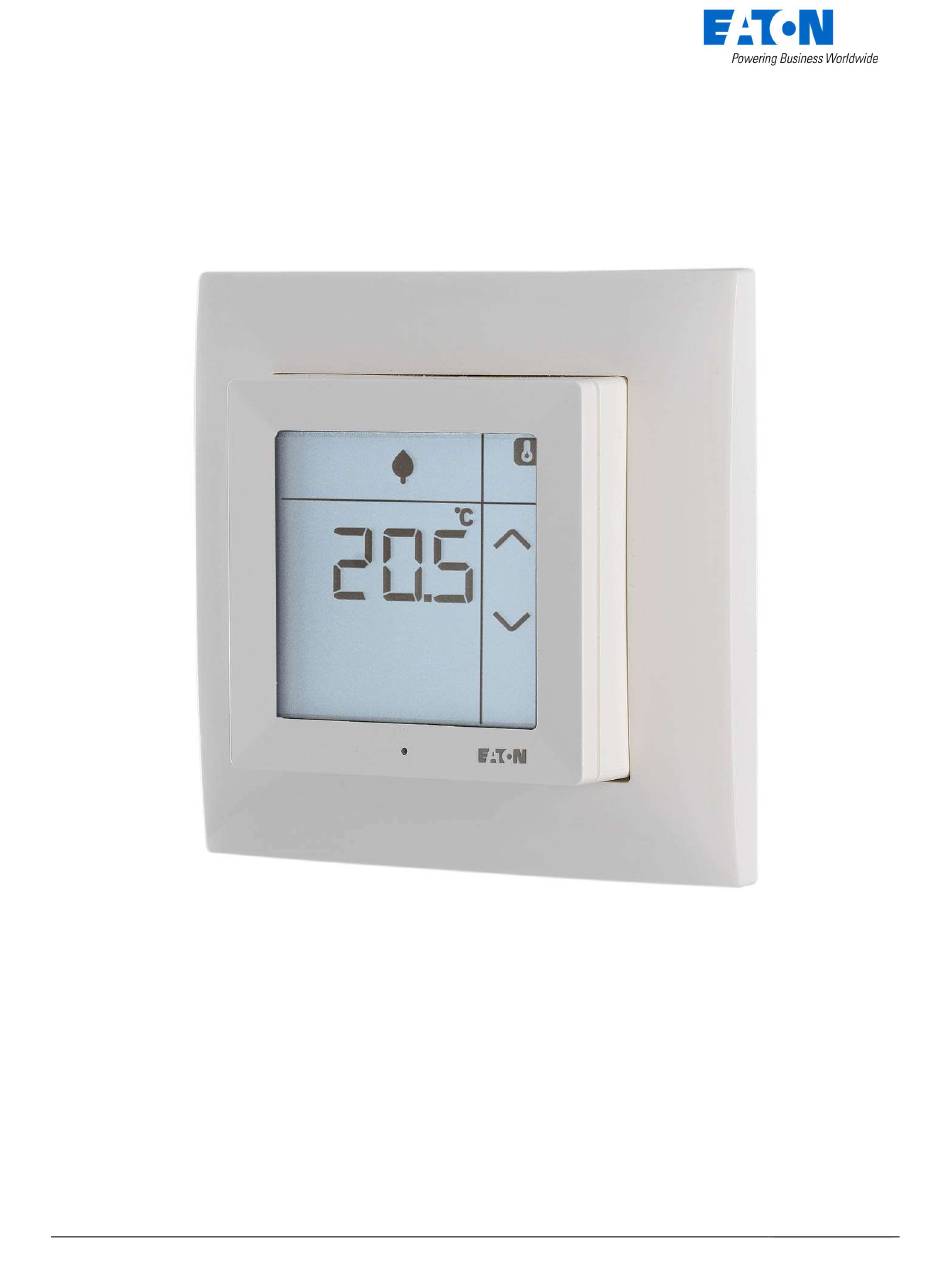

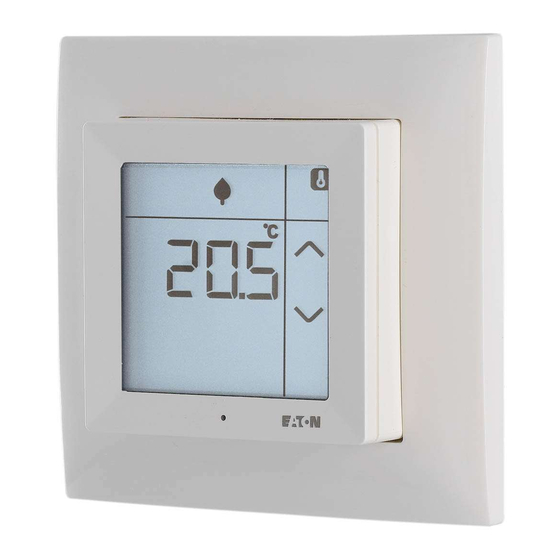

- Page 1 Room Controller Touch Temperature Regulation User manual (For software version 2.0 or higher) xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN...
- Page 2 QR kód. Voor andere talen en meer informatie over xComfort ga naar www.eaton.nl/xcomfort of www.xcomfort.nl of maak gebruik van de QR-code xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN ii | P a g e...
-
Page 3: Table Of Contents
3.4.3 (Optional) Edit the humidity setpoint ..................17 3.4.4 (Optional) Edit/set the current time and date ................18 3.4.5 (Optional) Edit/set the monthly clock correction factor ............20 xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN iii | P a g e... - Page 4 Room Controller Touch – Temperature regulation - User manual 2.0_EN iv | P a g e...
-
Page 5: Introduction
Room Controller Touch with software version 2.0 or higher. Note: The software version is displayed during power-up of the Room Controller Touch, e.g. Display ‘123’ -> Version: 1.23. xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN P a g e... - Page 6 Please contact a suitably qualified electrical engineer for assembly, installation and basic configuration of the device, as well as for its disposal. Faulty installation or configuration may pose a danger to property and persons. xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN P a g e...
-
Page 7: Room Controller Touch
Units of measurement Settings Weekly program timer activity status Touch button Day of the week Floor temperature (regulation active) Program timer switch time Low-battery indicator xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN P a g e... -
Page 8: Child Protection
In cleaning mode, the Room Controller Touch will ignore any touching activity on the display. The display will then show the remaining time in seconds until the Room Controller Touch switches back to normal operation. xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN P a g e... -
Page 9: Replacing The Batteries
‘Off’ will appear on the display. This can be overruled by pressing the ‘Off’. The Room Controller Touch will then immediately return to normal operation. xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN P a g e... -
Page 10: Operation Mode
(Optional) Edit the week program (Optional) Edit the humidity setpoint (Optional) Edit the time and date (Optional) Edit the clock correction factor xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN P a g e... -
Page 11: Basic Functions
Note: To permanently change the setpoint temperature, see ‘Edit functions – change the pre- defined temperature setpoint’. xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN P a g e... -
Page 12: Change The Setpoint Temperature (Operation Mode)
(if enabled) to automatically switch between the different setpoint temperatures at a set time. Note: Manually changing the active setpoint temperature (operation mode) will deactivate the week program. Start Step 1 xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN P a g e... -
Page 13: Show The Current Level Of Humidity
3.2.7 (Optional) Show the floor temperature This function is available if, during installation, the external temperature sensor input is configured to be used as a floor temperature sensor. xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN P a g e... -
Page 14: Show The Time And The Day Of The Week
2-pole pushbutton. The touch button on the left controls the ON/UP (short/long press) function while the one on the right handles the OFF/DOWN function. xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN 10 |... -
Page 15: Enhanced Functions
If the week program is activated (ON), the device will switch to the correct operation mode in accordance with the week program for the current time. Start Step 1 Step 2 Deactivated (OFF) Activated (ON) Step 3 Timeout xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN 11 | P a g e... -
Page 16: Optional) Select The Heating And/Or Cooling Mode
If both actuators are connected all modes are available. Start Step 1 The currently active mode is shown (Show mode) Step 2 Control mode (Select mode) Sensor mode xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN 12 | P a g e... -
Page 17: Edit Functions
(dead zone) to prevent continuous switching between heating and cooling. This dead zone value can be configured during installation. The default value is 3 K. Start Step 1 xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN 13 | P a g e... -
Page 18: Optional) Edit The Week Program Timer
Any changes to the week program should therefore be made on the intelligent device. xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN 14 | P a g e... - Page 19 The day of the week and the trigger point are flashing Enter program edit Select the day of the The selected day of the week is flashing week xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN 15 | P a g e...
- Page 20 The minutes are flashing Step 2 (change) Changing the time (hours) Change the time (hours) Step 1 (select) The hours are flashing Step 2 (change) xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN 16 | P a g e...
-
Page 21: Optional) Edit The Humidity Setpoint
Either if the humidity level is above or if it is below the setpoint. The ventilation icon is displayed when the ON command has been sent. Select the humidity Enter edit mode Change xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN 17 | P a g e... -
Page 22: Optional) Edit/Set The Current Time And Date
The time and date are used for the execution of the week program. The time and date need to be set correctly in order for the week program to function properly. Select the clock Enter edit mode xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN 18 | P a g e... - Page 23 Month Year Change Use the arrow keys to Once changed, the changed value will change start flashing Leave edit mode Timeout or xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN 19 | P a g e...
-
Page 24: Optional) Edit/Set The Monthly Clock Correction Factor
Touch does not receive the time and date from another device. Select the clock Enter edit Press edit > 5 Sec Change Leave edit xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN 20 | P a g e... - Page 25 © Eaton Industries (Austria) Eugenia 1 3943 Schrems Austria www.xcomfort.com www.eaton.eu/xcomfort xComfort Room Controller Touch – Temperature regulation - User manual 2.0_EN 21 | P a g e...
