Kramer VIA Connect PLUS Quick Start Manual

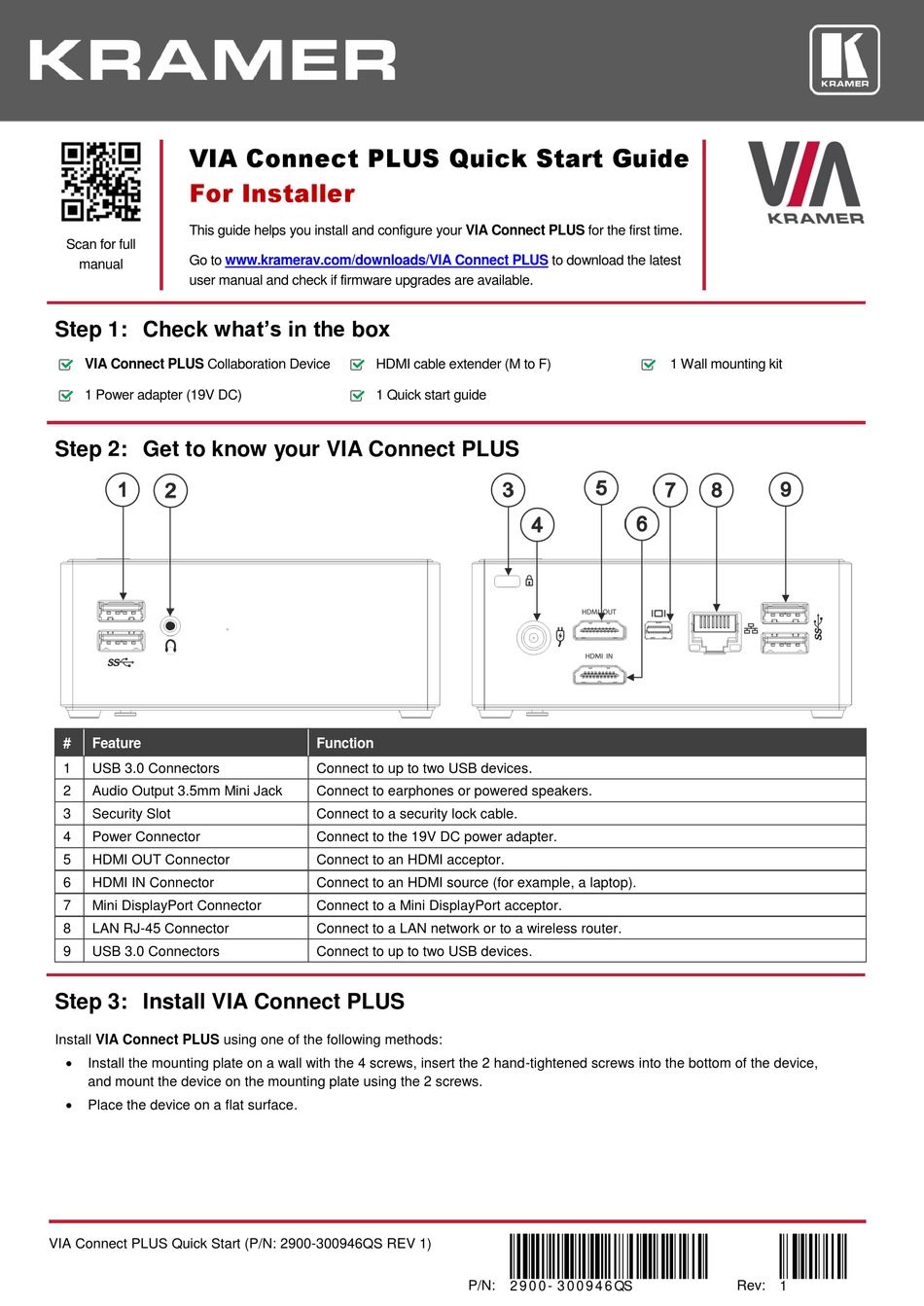

VIA Connect PLUS Quick Start Guide
For Installer
This guide helps you install and configure your VIA Connect PLUS for the first time.
Scan for full
Go to
manual
user manual and check if firmware upgrades are available.
Step 1: Check what's in the box

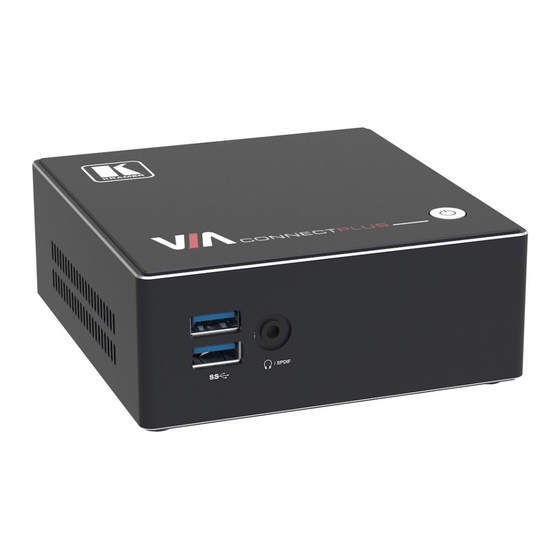

VIA Connect PLUS Collaboration Device
1 Power adapter (19V DC)
Step 2: Get to know your VIA Connect PLUS
# Feature
1 USB 3.0 Connectors
2 Audio Output 3.5mm Mini Jack
3 Security Slot
4 Power Connector
5 HDMI OUT Connector
6 HDMI IN Connector
7 Mini DisplayPort Connector
8 LAN RJ-45 Connector
9 USB 3.0 Connectors
Step 3: Install VIA Connect PLUS
Install VIA Connect PLUS using one of the following methods:

Install the mounting plate on a wall with the 4 screws, insert the 2 hand-tightened screws into the bottom of the device,
and mount the device on the mounting plate using the 2 screws.

Place the device on a flat surface.
VIA Connect PLUS Quick Start (P/N: 2900-300946QS REV 1)
www.kramerav.com/downloads/VIA Connect PLUS
HDMI cable extender (M to F)
1 Quick start guide
Function
Connect to up to two USB devices.
Connect to earphones or powered speakers.
Connect to a security lock cable.
Connect to the 19V DC power adapter.
Connect to an HDMI acceptor.
Connect to an HDMI source (for example, a laptop).
Connect to a Mini DisplayPort acceptor.
Connect to a LAN network or to a wireless router.
Connect to up to two USB devices.
to download the latest
P/N: 2 9 0 0 - 3 0 0 9 4 6 QS
1 Wall mounting kit
Rev: 1
