Technical Specifications
Power Supply
6...30VDC PELV
Power Consumption
typ. 49mW, max. 95mW
Total Power Loss
max. 95mW
Safety Protection
IP30
Ambient Temperature
-20...70°C / -4...158°F
Humidity
95% r.H. (non condensing)
Dimensions
90x90x16mm /
3.54x3.54x0.63" (LxWxH)
This device is free of main-
Maintenance & Cleaning
tenance and may only be
cleaned with a dry cloth.
Connection
Wire Conductor cross-section
0.25...0.8mm° / AWG18...AWG23
5mm / 0.2"
Exposed Wire Length
Push-In-Technology
To make connection, insert the
wire; to remove the wire twist
and pull at the same time.
Need Help?
loxone.com/support
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com
Touch
Pure
Tree

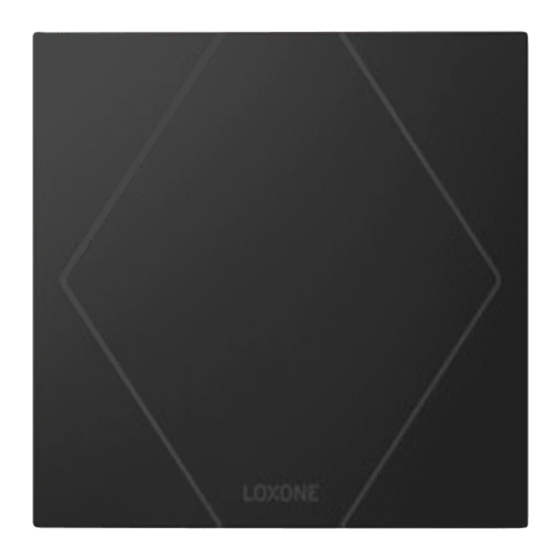

Part No: 100396 (White)
Part No: 100398 (Anthracite)
