BELLSYSTEM PRACTICES SECTION 503-200-109
AT&TCo Standard Issue 2, January 1976
TELEPHONE SETS
881A105, 881A106, 881A107, 881A108, 881B105, 881B106,
881B107, AND 881B108
1. GENERAL
1.01
This section provides identification, installation,
and connection information for the DESIGN
LINE* telephone sets (Candlestick *_) (Fig. 1).
*Trademark AT&TCo.
**Registered Trademark of American Telecommunication
Corporation.
Warnlng: Telephone apparatus or wiring
shah not be instalIed in location where
minimum separation from other wiring as
specitied in Section 460-300-149 cannot be
maintained.
1.02 This section is reissued to:
• Add information for the 881B105, 106, 107,
and 108 modular telephone sets
• Change Fig. 7 and 8
• Add Fig. 9 and 10.
1.03 The customer's premises must be properly
wired with an appropriate connecting block
or jack in order to accept the D4BU-29 plug-ended
mounting cord or 225A adapter furnished with each
telephone set.
2. IDENTIFICATION !i!!_
2.01 The 881A105, 881A106, 881A107, and 881A108 .......
(rotary dial) equipped telephone sets are
new DESIGN LINE telephone sets being made

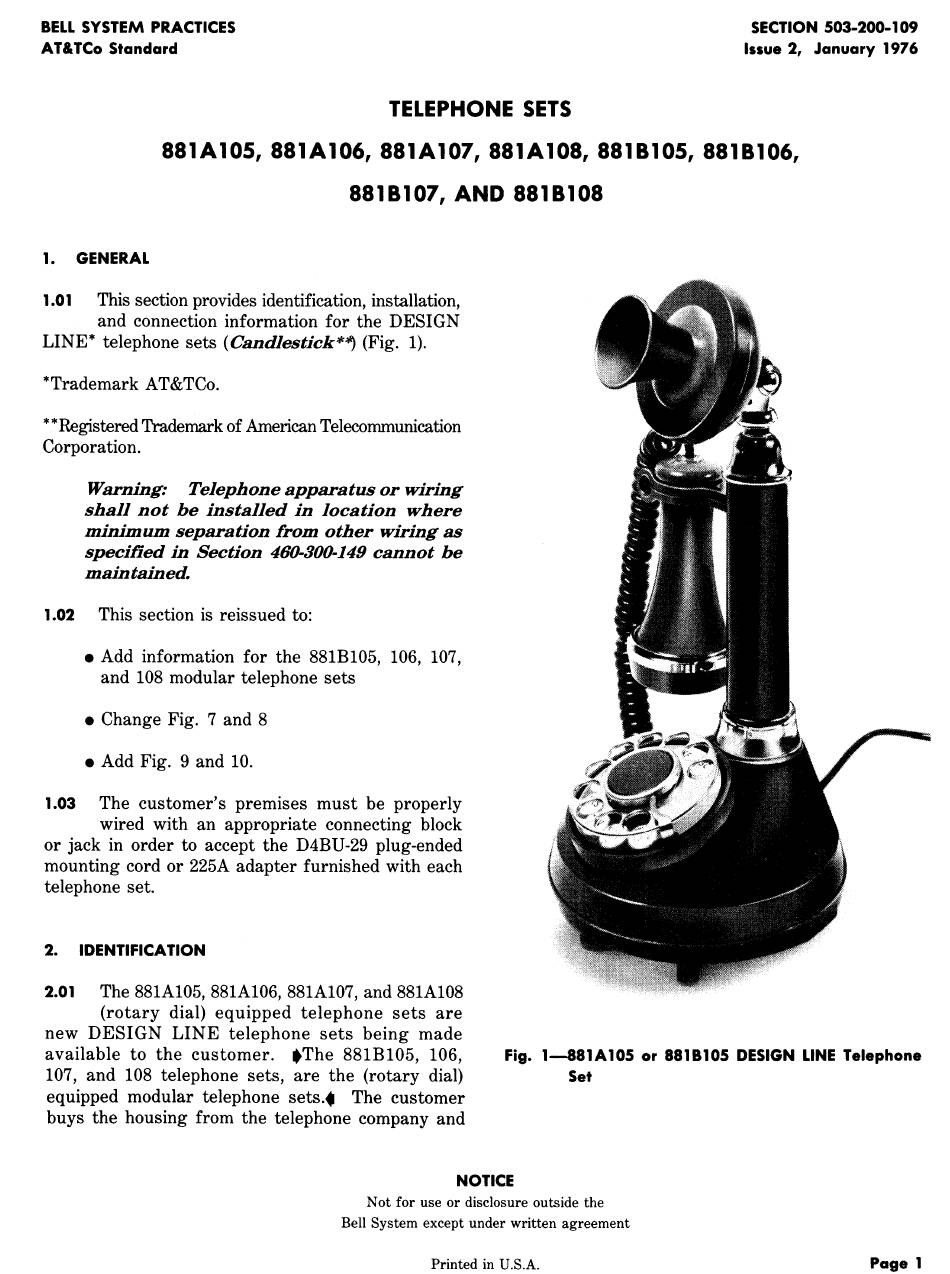

available to the customer. SThe 881B105, 106, Fig. I--881A105 or 881B105 DESIGN LINE Telephone
107, and 108 telephone sets, are the (rotary dial) Set
equipped modular telephone sets.Q The customer
buys the housing from the telephone company and
NOTICE
Not for use or disclosure outside the
Bell System except under written agreement
Printed in U.S.A. Page 1
