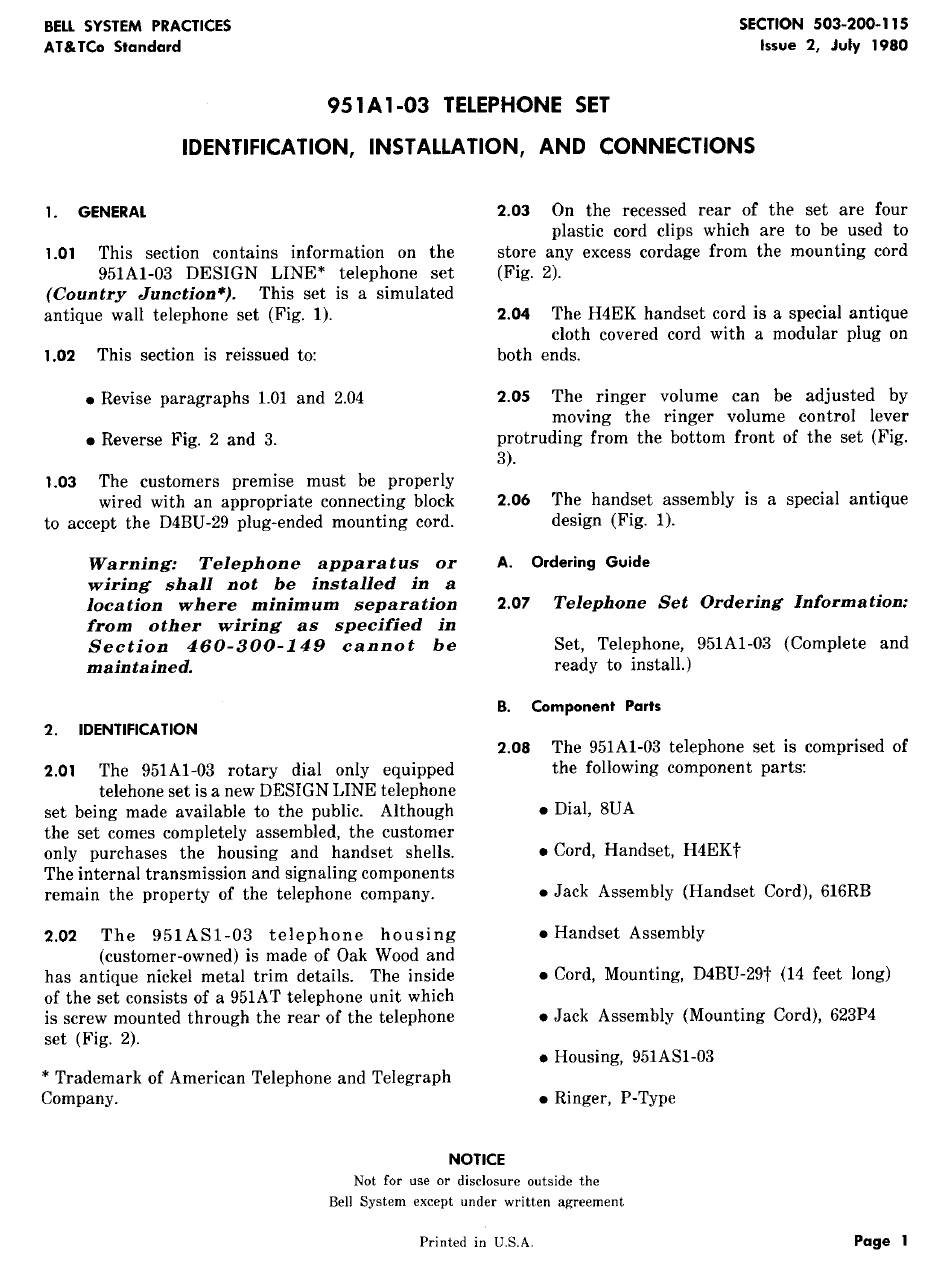

BELLSYSTEM PRACTICES SECTION 503-200-115
AT&TCo Standard Issue 2, July 1980
951A1-03 TELEPHONE SET
IDENTIFICATION, INSTALLATION, AND CONNECTIONS
1. GENERAL 2.03 On the recessed rear of the set are four
plastic cord clips which are to be used to
1.01 This section contains information on the store any excess cordage from the mounting cord
951A1-03 DESIGN LINE* telephone set (Fig. 2).
(Country Junction*). This set is a simulated
antique wall telephone set (Fig. 1). 2.04 The H4EK handset cord is a special antique
cloth covered cord with a modular plug on
1.02 This section is reissued to: both ends.
. Revise paragraphs 1.01 and 2.04 2.05 The ringer volume can be adjusted by
moving the ringer volume control lever
e Reverse Fig. 2 and 3. protruding from the bottom front of the set (Fig.
3).
1.03 The customers premise must be properly
wired with an appropriate connecting block 2.06 The handset assembly is a special antique
to accept the D4BU-29 plug-ended mounting cord. design (Fig. 1).
Warning: Telephone apparatus or A. Ordering Guide
wiring shah not be installed in a
location where minimum separation 2.07 Telephone Set Ordering Information:
from other wiring as specified in
Section 460-300-149 cannot be Set, Telephone, 951A1-03 (Complete and
maintained, ready to install.)
B. Component Parts
2. IDENTIFICATION
2.08 The 951A1-03 telephone set is comprised of
2.01 The 951A1-03 rotary dial only equipped the following component parts:
telehone set is a new DESIGN LINE telephone
set being made available to the public. Although • Dial, 8UA
the set comes completely assembled, the customer
only purchases the housing and handset shells. • Cord, Handset, H4EKt
The internal transmission and signaling components
remain the property of the telephone company. • Jack Assembly (Handset Cord), 616RB
2.02 The 951AS1-03 telephone housing • Handset Assembly
(customer-owned) is made of Oak Wood and
has antique nickel metal trim details. The inside • Cord, Mounting, D4BU-29t (14 feet long)
of the set consists of a 951AT telephone unit which
is screw mounted through the rear of the telephone • Jack Assembly (Mounting Cord), 623P4
set (Fig. 2).
e Housing, 951AS1-03
* Trademark of American Telephone and Telegraph
Company. • Ringer, P-Type
NOTICE
Not for use or disclosure outside the
Bell System except under written agreement
Printed in U.S.A.
Page 1
