ZyXEL Communications IES-708-22 Specifications

768/1152 ports, 17 Vertical Slots
with a Maximum Configuration of
1 MSC Card and 16 Line Cards
Multi-service interfaces including
ADSL2/2+, G.SHDSL.BIS, VDSL2 ,
VOIP (SIP & H.248), Fiber-based FE
and E1 IMA
10G Ethernet Uplinks to Provide
Non-blocking Network Interfaces
Comprehensive QoS to Enhance
Triple Play Users' Experience (SR,
WRR)
Field Proven IGMP v1, v2 Snooping
and Proxy for IPTV Deployment
(512 Multicast Groups)
Flexible ACL, VLAN-aware DHCP
and Anti-IP/MAC Address Spoofing
to Prevent Malicious Attack
DHCP Option 82 and PPPoE IA
Features Support Versatile IP
Address Assignment
12.5U High Capacity
Multi-Service
Access Node
IES-6000
Future Proof Next Generation Multi-Service
IP Access Solution
Benefits
Future Proof Architecture
As the flagship of ZyXEL's MSAN product portfolio, the IES-6000 is equipped with non-blocking Gigabit
backplane, failover-enabled Management Switch Cards (MSC), dual input power modules and various high-
port density multi-purpose line cards. With comprehensive IP-centric firmware features, the IES-6000 is a
high-capacity system that facilitates Telco/ISP to deliver high-quality residential or business user services
experience at competitive CAPEX/OPEX as well as satisfying its current and future infrastructural
requirements of reliability, flexibility and scalability.
Easy & Reused Logistics

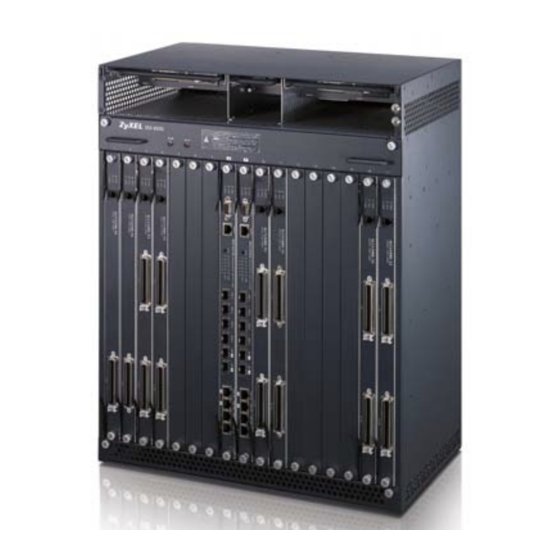

The IES-6000 is a 12.5 U-height, 17-slot chassis-based multi-service access node capable of adopting the
same line cards as those for IES-5005/5000 systems. The MSC1024G control card with eight 1G uplinks is
designed to plug into slot 8 and/or slot 9, while the remaining slots are available for equipping various line
cards. The new MSC1224G control card is with two 10G and six 1G Ethernet uplinks to support even larger
bandwidth requirement. The variety of line cards are including 48-port or 72-port ADSL2+ line cards that
provide subscribers with asymmetric transmission bandwidth up to 25 Mbps/2.4 Mbps; 48-port SHDSL.bis
line cards with symmetric transmission bandwidth of 5.69 Mbps per port; 24-port and 48-port VDSL2 line
cards that offer up profile 30a (100/100 Mbps) high-speed connectivity per port over copper wires; 48-port
VoIP line card that supports either H.248 or SIP protocol, 20-port fiber-based Fast Ethernet line card that
supports 100 Mbps transmission speed per port and 8-port E1 IMA card.
Advanced Triple Play and Mass Deployment Functionality
The IES-6000 inherits all the Layer 2 and Layer 3 QoS, security and multicast functionalities from the IES-
5000/5005, while the following new features are added to satisfy the requirements for massive field
deployments: (1) IP bridge functionality that alleviates the Layer 2 access network deployment restrictions
resulted from MAC address table limitation and security attack issues; (2) ARP Proxy which minimizes the
ARP broadcast requests to all subscribers; (3) TACACS+ mechanism to support remote authentication with
TACACS+ servers; (4) VLAN-aware DHCP snooping which adds VLAN information into DHCP snooping
tables; (5) DHCP option82 sub-option2 for providing remote client ID information to DHCP servers for
flexible IP address assignment. (6) Cluster management feature that is able to reduce the OPEX of multiple
MSAN maintenance.
