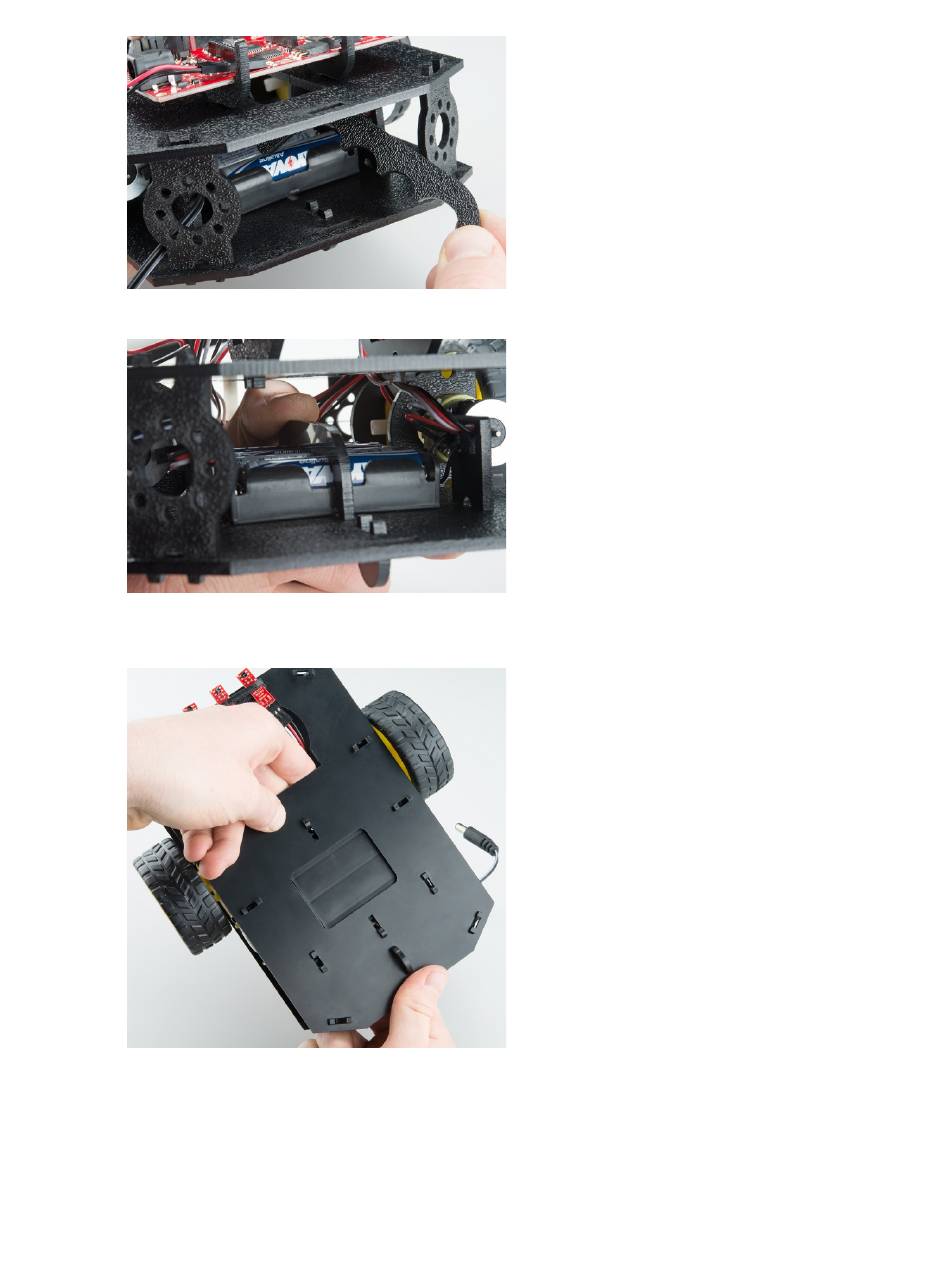

Insert the Battery Pack Clip (H) on top of the battery pack.
Twist and position the clip so that it rests on top of the battery pack.
Push the clip down into the vertical slots in the Bottom Chassis Plate so it
snaps in place.
Route the barrel jack cable out of the left side of the RedBot and up to the
Mainboard. If you have a motor encoder (SIK), make sure that the cable
does not interfere with the magnet or the hall effect sensor.
Plug the barrel jack cable into the connector labeled V_IN.
