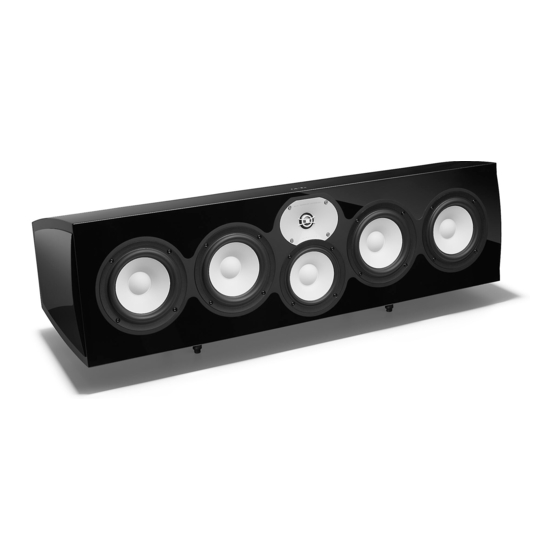

Center channel loudspeaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
C426Be Center Channel Loudspeaker
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REVEL PERFORMA Be4 C426Be and is the answer not in the manual?

Questions and answers

Related Manuals for Harman REVEL PERFORMA Be4 C426Be

Summary of Contents for Harman REVEL PERFORMA Be4 C426Be

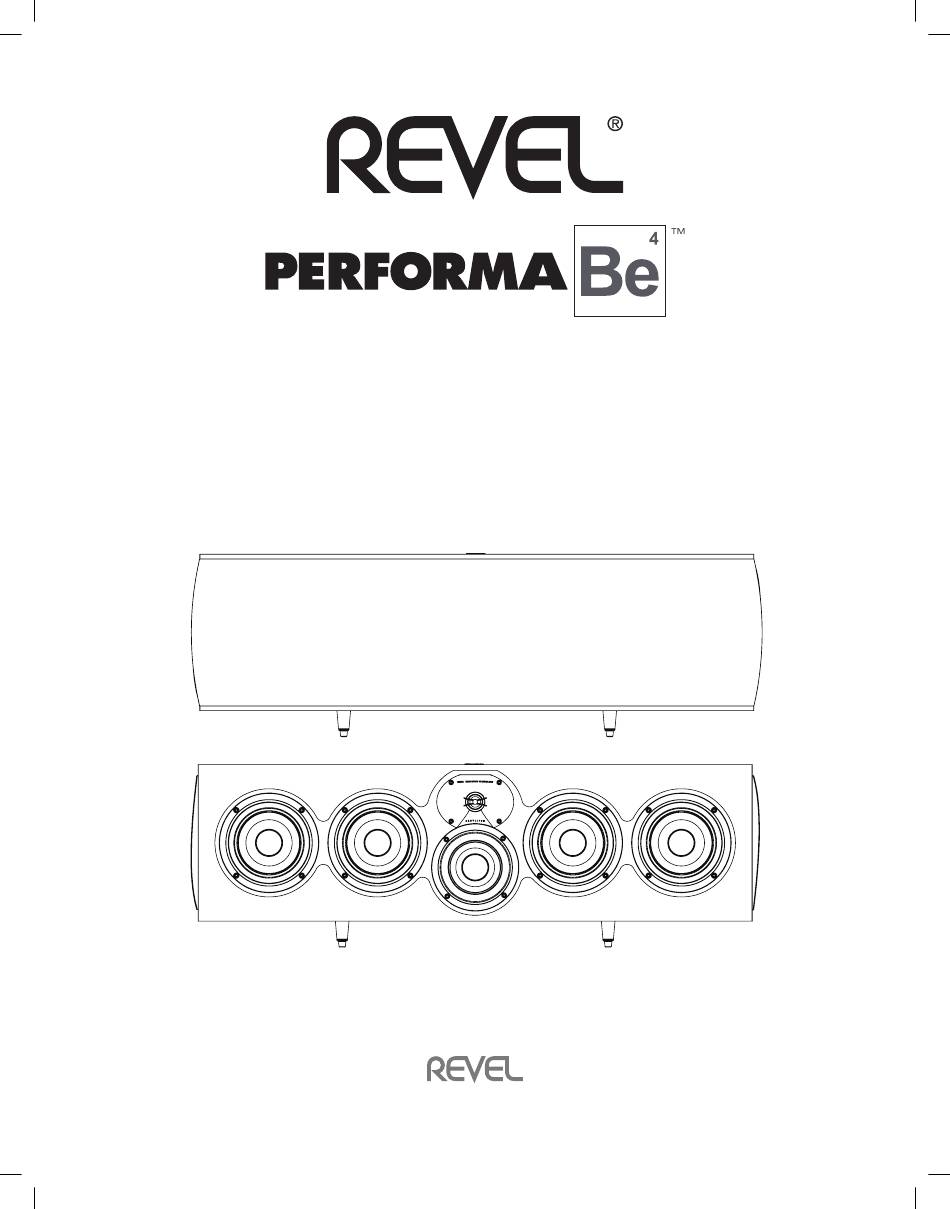

  • Page 1 C426Be Center Channel Loudspeaker Owner’s Manual...

  • Page 2: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS electrical and electronic equipment consists of the crossed-out wheeled bin, as shown below. 1. Use only attachments/accessories specified by the manufacturer. 2. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

  • Page 3: Unpacking The C426Be

    UNPACKING THE C426Be Unpack the C426Be in the order of the illustrations below. Step 1 Step 2 Step 3 Step 6 Step 5 Step 4 Revel PerformaBe C426Be Loudspeaker Owner’s Manual...

  • Page 4: About Revel Performabe Loudspeakers

    ABOUT REVEL PERFORMABe LOUDSPEAKERS C426Be OVERVIEW 1" Beryllium Enclosure with FEATURE HIGHLIGHTS Dome Tweeter 1"-Thick Panels with Acoustic and Extensive • Beryllium Dome Tweeter Lens Waveguide Internal Bracing • 5th-generation Acoustic Lens Waveguide • Deep Ceramic Composite (DCC™) Cone Midrange and Woofers •...

  • Page 5: Loudspeaker Placement

    LOUDSPEAKER PLACEMENT ADJUSTABLE FEET We recommend that you remove all obstructions between the loudspeaker and the primary C426Be loudspeakers include two sets of adjustable feet, one short and one long that let listening position. For instance, a coffee table between the loudspeaker and the primary you angle the loudspeaker up or down so it is aiming towards listeners’...

  • Page 6: Making Connections

    MAKING CONNECTIONS C426Be CONNECTIONS The C426Be features gold-plated binding posts that allow single-wire connection. CAUTION: Never make or break connections unless all system components are C426Be powered off. Connector Panel OBSERVE PROPER POLARITY Connect the amplifier’s positive (+) terminal to the positive (+) terminal on the loudspeaker; Amplifier connect the amplifier’s negative (–) terminal to the negative (–) terminal on the loudspeaker.

  • Page 7: Single-Wired Connection

    C426Be SINGLE-WIRED CONNECTION Note: Do not remove the shorting straps between the speaker terminals. Single-wired connections are the most common. These are made between one pair of C426Be input terminals and one power amplifier output channel as shown below. Do NOT Remove Shorting Straps...

  • Page 8: Bi-Amped Connections

    C426BE BI-AMPED CONNECTIONS CAUTION: Remove the shorting straps before making bi-amped connections. Failure Note: When making bi-amped connections, both power amplifier channels to do so may cause damage to some power amplifiers. must receive identical input signals from the associated preamp/processor. If the associated preamp/processor only has one connector for the center channel, a “Y”...

  • Page 9: Optimizing Performance

    OPTIMIZING PERFORMANCE CARING FOR YOUR LOUDSPEAKERS PORT PLUGS GRILLES Revel PerformaBe loudspeakers include a pair of foam port plugs, which are pre-inserted Revel PerformaBe speakers feature grilles with a magnetic attachment method that into the rear ports,and can be used to adjust the loudspeaker’s low-frequency performance eliminates unsightly attachment hardware from the speaker baffle, so if you decide to use in certain installation situations.

  • Page 10: Limited Warranty

    LIMITED WARRANTY Revel loudspeakers are warranted against defects. The duration of a warranty depends on the laws in the country in which it was purchased. Your local Revel retailer can help you determine the duration and coverage of your warranty. For more information please visit: REVELSPEAKERS.COM Please visit REVELSPEAKERS.COM for additional language support on the user manual.
  • Page 12 8500 Balboa Boulevard, Northridge, CA 91329 USA © 2019 HARMAN International Industries, Incorporated. All rights reserved. Revel and the Revel logo are trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. All Rights Reserved. Features, specifications and appearance are subject to change without notice.
