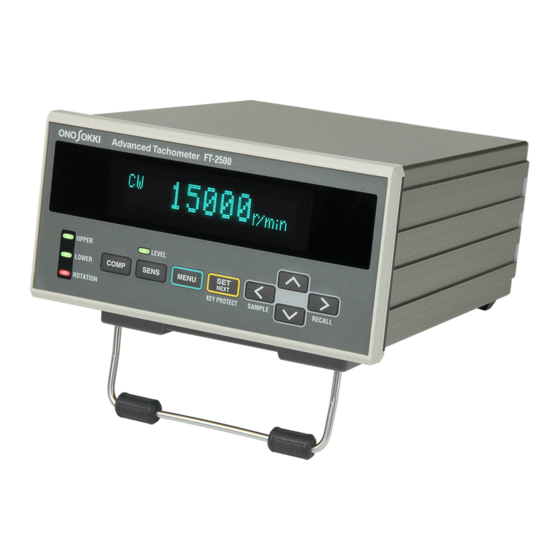

Advanced Tachometer
FT- 2500

Advertisement

loading

Related Manuals for ONOSOKKI FT-2500

Summary of Contents for ONOSOKKI FT-2500

  • Page 1 Advanced Tachometer FT- 2500...
  • Page 2 • In C,D, and E mode, the FT-2500 follows up the acceleration/deceleration condition owing to the internal high speed processing function. • In C mode, the FT-2500 predicts the peak value which it should be and calculates the rotational < SENS > key speed even if the maximum peak has been lost.
  • Page 3 Some installation conditions may give adverse influence against the noise tolerance. Parts name Manufacturer Model name • Separate the power supply cable of the FT-2500 from the power line which is connected to high-power Line filter Schaffner Holding AG FN9222R-3-06 load.
  • Page 4 (Note) The applications described below are provided as examples which we have had experience of the measurement in the past. However, accurate measurement of rotational speed may not be performed depending on the rotational condition or matching between the sensor and the FT-2500. For more information, please contact your nearest distributor.
  • Page 5 The FT-2500 can measure the rotational speed of an engine by the sound and The rotational speed of an engine can be measured by clamping a sensor to the vibration related to the movement of the pistons.

  • Page 6: System Configurations

    Output side Rotating direction RS-232C determination output Upper/lower-limit judgment output LAN (Ethernet option) FT-0251 UPPER Advanced Tachometer RS-232C cable (2m) FT-2500 AX-5022 LOWER Analog output for Analog output monitoring Pulse output ※ External display equipment FFT analyzer Recorder ※ PLC : Programmable Logic Controller...

  • Page 7: Specifications

    2.2 to 3.2mA (25°C) Calibration function Outputting ZERO/FULL calibration signal current line drive *Power supply for constant current line drive is output only when MI or NP series is connected with the FT-2500. • SIG output Output content The external sensor signal which was reshaped to a waveform (analog output...
