Description of Panels

3.1

Front Panel

Eventys AX series

3.1.1
No.
1
Composite
2
Keys
© Vanderbilt 2017

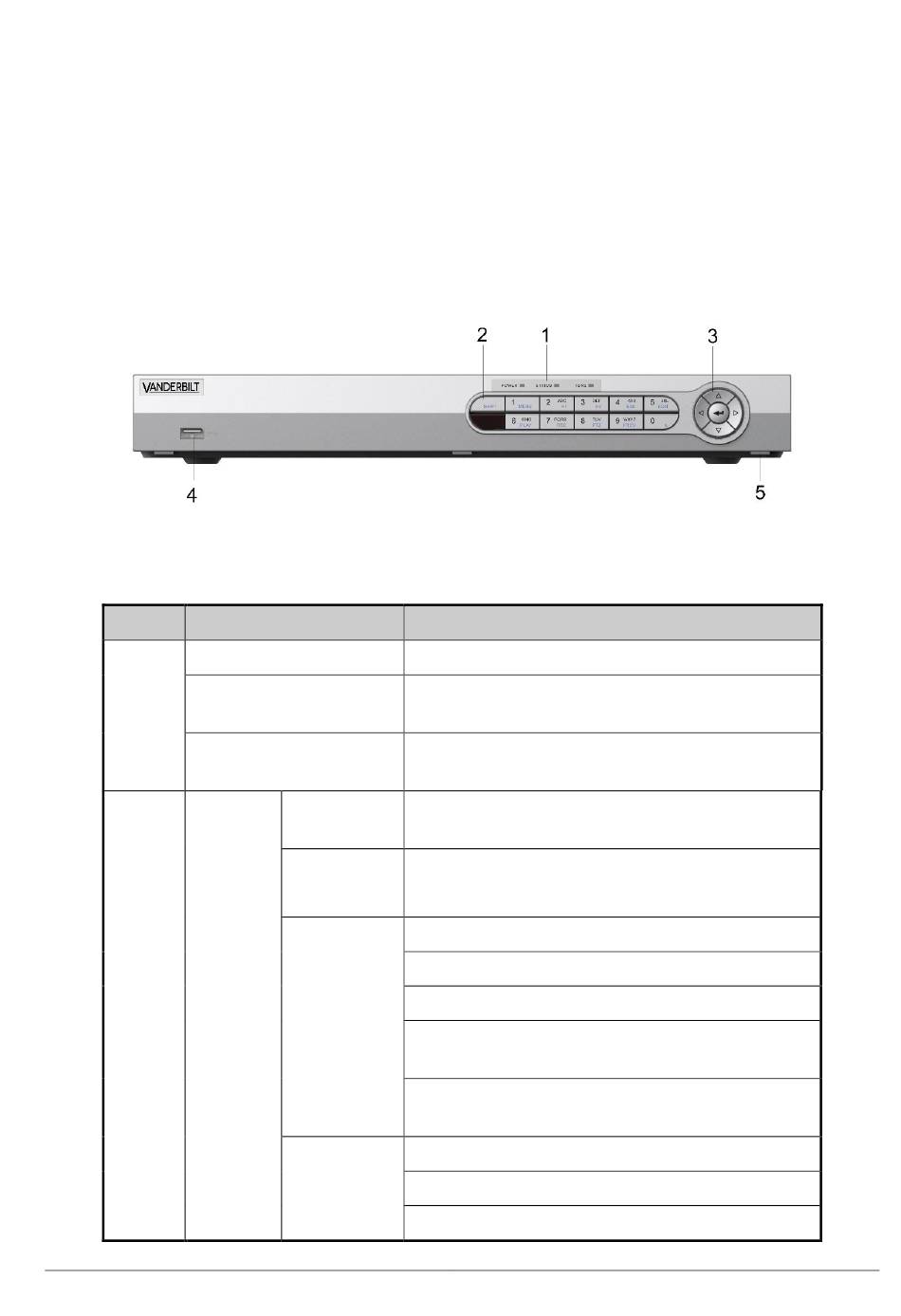

Figure 3-1 Eventys AX DVR
Description of Front Panel
Table 3. 1
Name Function Description
POWER Turns yellow when the device is running.
Flickers red when data is being read from or written to HDD,
STATUS
and turns yellow when the SHIFT function is realized.
Flickers yellow when network connection is functioning
Tx/Rx
properly.
Switches between the numeric or letter input and functions
SHIFT
of the composite keys.
Enters numeral "1";
1/MENU
Accesses the main menu interface.
Enters numeral "2";
Enters letters "ABC";
Uses the F1 button to select all items in a list field;
2/ABC/F1
Turns on/off PTZ light in PTZ Control mode, and use it to
zoom out the image;
Switches between main and spot video output in live view
or playback mode.
Enters numeral "3";
Enters letters "DEF";
3/DEF/F2
Uses the F2 button to change the tab pages;
