2. Install the HDD in the HDD rack using the provided screws. Fasten the screws on the
button to fix the HDD.
3. Connect one end of the data cable to the DVR motherboard and the other end to the
HDD.
4. Connect the power cable to the HDD.
5. Re-install the DVR cover and fasten screws.
© Vanderbilt 2017

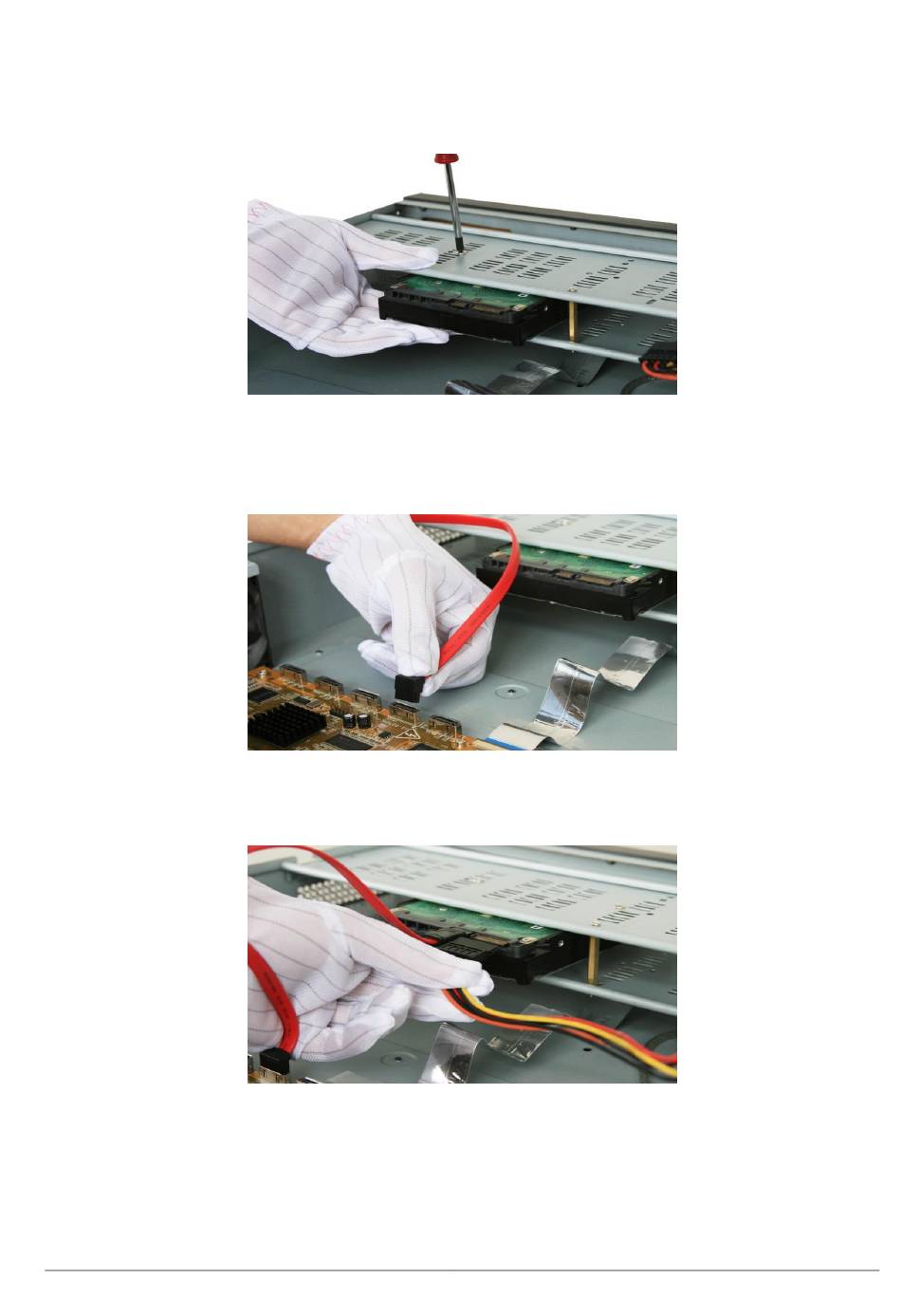

Figure 4-2 Install the HDD
Figure 4-3 Connect the data cable
Figure 4-4 Connect the power cable
