Rear Panel

Eventys AX series

3.2.2
No.
Name
1
VIDEO IN
2
AUDIO IN
3
AUDIO OUT
4
VGA
5
HDMI
6
USB Port
7
Network Interface
8
RS-485 Interface
9
Power Supply
10
Power Switch
11
GND
12
VIDEO OUT
13
Alarm In/Out
© Vanderbilt 2017

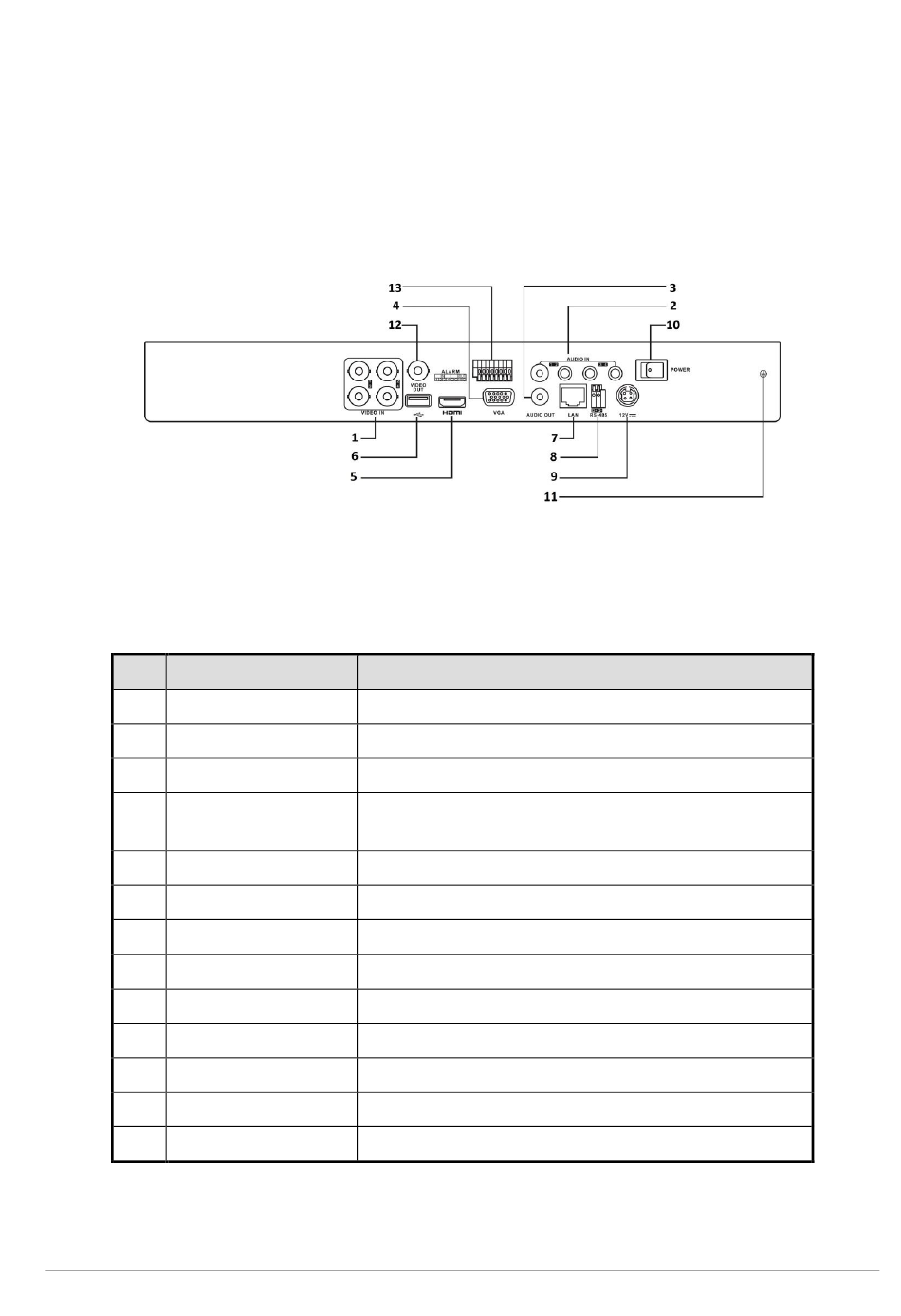

Figure 3-2 Eventys AX4 DVR
Description of Rear Panel Interfaces
Table 3. 2
Description
BNC interface for TVI and analog video input.
RCA connector
RCA connector.
DB15 connector for VGA output. Display local video output and
menu.
HDMI video output connector.
Universal Serial Bus (USB3.0) port for additional devices.
Connector for network
Connector for RS-485 devices.
12VDC power supply.
Switch for turning on/off the device.
Ground
BNC connector for video output.
Connector for alarm input and output.
Description of Panels
