4G Router User Manual V1.0
Thank you for purchasing the 4G LTE Mobile WiFi. This device brings you a high speed
wireless network connection. This document will help you understand your Mobile WiFi so you
can start using it right away. Please read this document carefully before using your Mobile
WiFi.
Getting to Know Your Mobile WiFi
Note: The Mobile WiFi function descriptions and illustrations in this document are for your
reference only. The product you have purchased may vary.

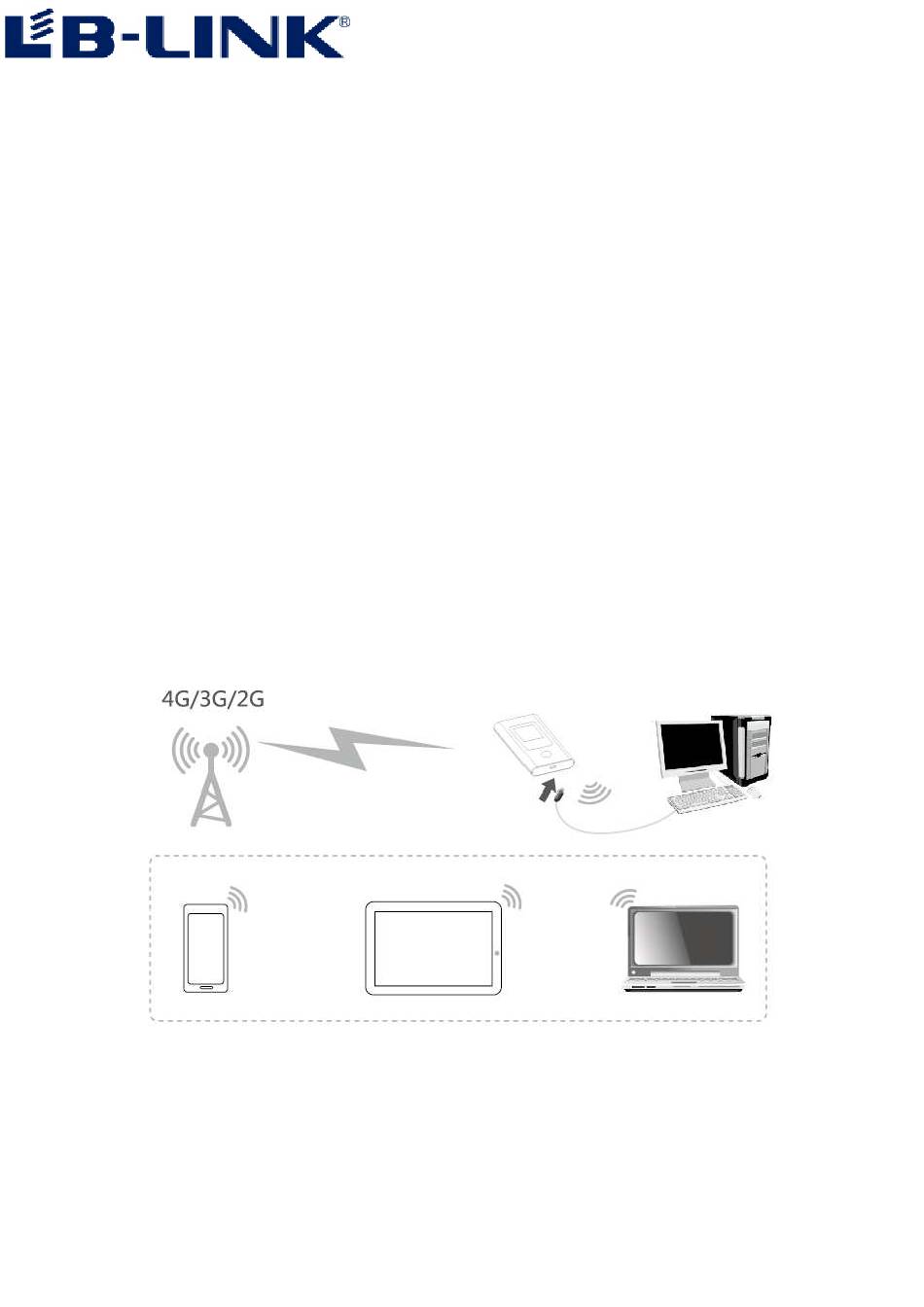

Application
Wi-Fi devices (such as smartphones, tablet computers, and game consoles) or computers can
all access the Internet through Mobile WiFi. The specific connection procedure depends on the
operating system of the Wi-Fi device or computer. Establish a connection according to your
device's specific instructions.
To access the Internet through a USB port connection, install the driver according to the
instructions.
Access 4G/3G/2G Internet by PC
Note:
The PC will automatically install the driver after the device is connected to the PC via
USB cable, if not, please click "My computer" to open the CDROM and manually install the
driver.
When the installation can not be completed, please check the anti-virus and security software
first, you should turn off those anti-virus and security software and try it again.
Advertisement
Table of Contents
Related Manuals for LB-Link 4G LTE
Summary of Contents for LB-Link 4G LTE
- Page 1 4G Router User Manual V1.0 Thank you for purchasing the 4G LTE Mobile WiFi. This device brings you a high speed wireless network connection. This document will help you understand your Mobile WiFi so you can start using it right away. Please read this document carefully before using your Mobile WiFi.
-
Page 2: System Request
After install the driver successfully, if the device can not able to be identified by the PC, please check if the “auto-play” function of computer is on by following steps: Windows7: Open the “start Menu->Control Panel->Hardware and Sound->Auto Play”, check “using Auto Play for all media and devices”... - Page 3 1. Click Start-> Control Panel->Network and Internet->Network and sharing Center-> Connect Network 2. Select the SSID from the WIFI list and click connect 3. Enter the correct WIFI password and click “OK” 4. After a while, when “connected” shows next to the WIFI account, then wireless network connection been established.
-
Page 4: Android Mobile
IOS(For the sample of iPhone) 1. Click setting->WIFI , Click WIFI switch to turn on the WiFi 2. Find the right SSID name from the List, click the connect 3. Enter the correct wifi passport and click “add” 4. After a while, WiFi connect successfully Android Mobile 1. - Page 5 3. Enter the wifi password and click connect 4. After a while, when “connected” shows next to the WIFI account, then wireless network connection been established. Operating Instructions Install SIM card Please install the SIM card, Micro SD card and battery according to the following pictures:...
-
Page 6: Charging The Battery
Refer to the above picture while install the SIM card, please open the battery cover first, insert the SIM card according to the direction of the arrow. It’s same for installing Micro SD card. Tips: Please use the Micro SD card which support by this device. Un-authorized Micro SD card will cause the lost or destroy of the data. - Page 7 Key descriptions Number Item Description Power button Turn on/off Wake up the device LCD display Display the device status Micro USB Charging or connect to PC Reset Press three seconds to restore the factory setting LCD Display ICON Description Unread message Massage box is full number of connected WiFi devices battery capacity...
-
Page 8: Management Guide
TD-SCDMA/WCDMA 3G network TD-LTE/LTE FDD 4G network roaming network SD card inserting Management Guide Log in Web management page Please log in web management page according to the following steps. 1. Make sure the WIFI connection is proper. 2. Open the browser, and enter http://192.168.0.1 in the address box, if the IP address conflicts with other IP addresses on the network, the IP address of the Mobile WiFi automatically changes. - Page 9 PIN code management The user can lock the USIM card via PIN code to protect the device been used by un-known device; the default PIN and PUK code is provided by the operator. The user can see the current PIN code state and the remaining enter times for the PIN and PUK code. The user need enter the old PIN code to unlock the USIM code.
- Page 10 Message function Receive and send message SD card sharing Log in admin page, select “more”, and you will see the SD card sharing page Searching the network...
-
Page 11: Accessory List
When you select “manual” to searching the network, will pop up a list of the searched network. The user can select a workable network, and the device will be registered to the selected network. Accessory list List Accessory name Quantity 4G wifi device main unit Battery USB cable... - Page 12 Do not use the device at the hot place or flammable gas station. Please use the original setting battery. Please do not keep you device where nearby flammable liquids, gases or explosive objects. Do not store the device in high temperatures, otherwise will shorten the life of electronic device, damage batteries or melting accessories.
