LB-Link BL-WDR3750 Quick Installation Manual

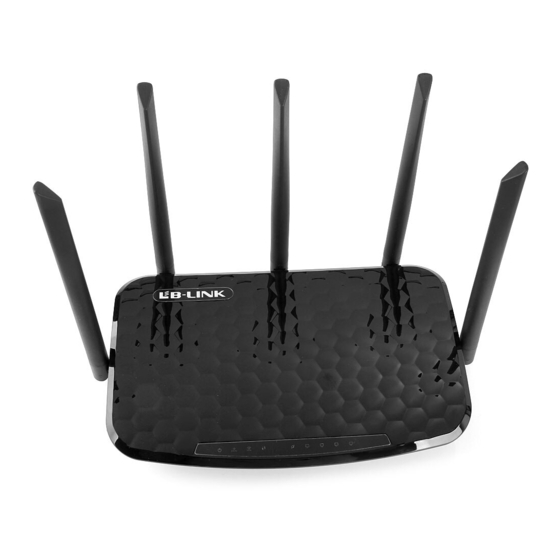

750mbps wireless dual band 11ac router
Hide thumbs

Advertisement

Table of Contents

Quick Installation Guide

Model:BL-WDR3750
750Mbps Wireless Dual Band 11AC Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BL-WDR3750 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LB-Link BL-WDR3750

Summary of Contents for LB-Link BL-WDR3750

  • Page 1: Quick Installation Guide

    Quick Installation Guide Model:BL-WDR3750 750Mbps Wireless Dual Band 11AC Router...
  • Page 2 1.Connecting the device Note: Please use wired network connections only to configure the Router. Connect the WAN port on your Router to the Modem's LAN port with an Ethernet cable. （If Modem is not available, please connect the incoming cable to the WAN port of the router directly）. Internet Cable/DSL Modem Wireless N Router...
  • Page 3 To enable the touter, please make sure the indicator lights work as same as it shows below. Power:solid light 2.4G WLAN:Flashing 5G WLAN:Flashing WPS:Trigger Flashing WAN:might appears either flashing or solid depending on the connection of the corresponding port. LAN:might appears either flashing or solid depending on the connection of the corresponding port.
  • Page 4 2.Configuring the device Note: First of all, please configure your computer's IP address to automatically obtain, if not clear, please refer to FAQ3. Login Open your web browser,input 192.168.16.1 192.168.16.1 in the address field and press Enter. User name:admin Password: admin User name: admin Password:...
  • Page 5 Configuration for DHCP The page will appear automatically. Select DHCP DHCP Static PPPoE W i r el e s s S e t t i n g s Please create an unique and memorable account for the wireless network. You 2.4G Network Name(SSID) B-LINK-2.4G_XXXXXX might be able to keep default settings as...
  • Page 6 Configuration for PPPoE The page will appear automatically. Select PPPoE DHCP Static PPPoE W A N S e t t i n g s Enter the Username and Password Username provided by your ISP. P a s s w o r d Se v i c e N a m e ( o p t i o n a l ) Create a unique and easy-to-remember W i r e l e s s S e t t i n g s...
  • Page 7 3.Troubleshooting FAQ1: What should I do if I forget the user name and password? (How to restore the router 's configuration to its factory default settings.) Answer: If you forget the user name and password, the only way to solve this problem is to reset the router.
  • Page 8 For Windows XP OS Click Network Connections Right-click Local Area Connection Click Properties Double-click Internet Protocol (TCP/IP)
  • Page 9 For Windows XP OS Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK Click OK...
  • Page 10 For Windows 7 OS Go to Start > Control Panel, you will then see the following page. Click View network status and tasks Click Change adapter settings Right-click Local Area Connection Click Properties...
  • Page 11 For Windows 7 OS Double-click Internet Protocol Version 4 (TCP/IPv4) Click OK Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK...
  • Page 12 For Windows 7 OS Click OK...
  • Page 13 For Windows 8 OS Press the Keyboard WIN( to popup the menu on the Win8 Desktop, then select Control Panel Click View network status and tasks Click Change adapter settings...
  • Page 14 For Windows 8 OS Right-click Ethernet Click Properties Double-Click Internet Protocol Version4(TCP/Ipv4)
  • Page 15 For Windows 8 OS Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK Click OK...
  • Page 16 Shenzhen BILIAN Electronic CO.,Ltd.All the products and product names mentioned here are the trademarks or registered trademarks of their respective holders,Specifications are subject to change without notice. Copyright © 2012 All Rights Reserved. http://www.lb-link.cn Ver 1.0...
