Dispensing system

Advertisement

Quick Links

USER GUIDE
Primo Cappuccino
6 Station
Dispensing System
READ AND SAVE THESE INSTRUCTIONS
NOTICE TO INSTALLER: Please leave this booklet with the machine.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Primo Cappuccino 6 Station and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Curtis Primo Cappuccino 6 Station

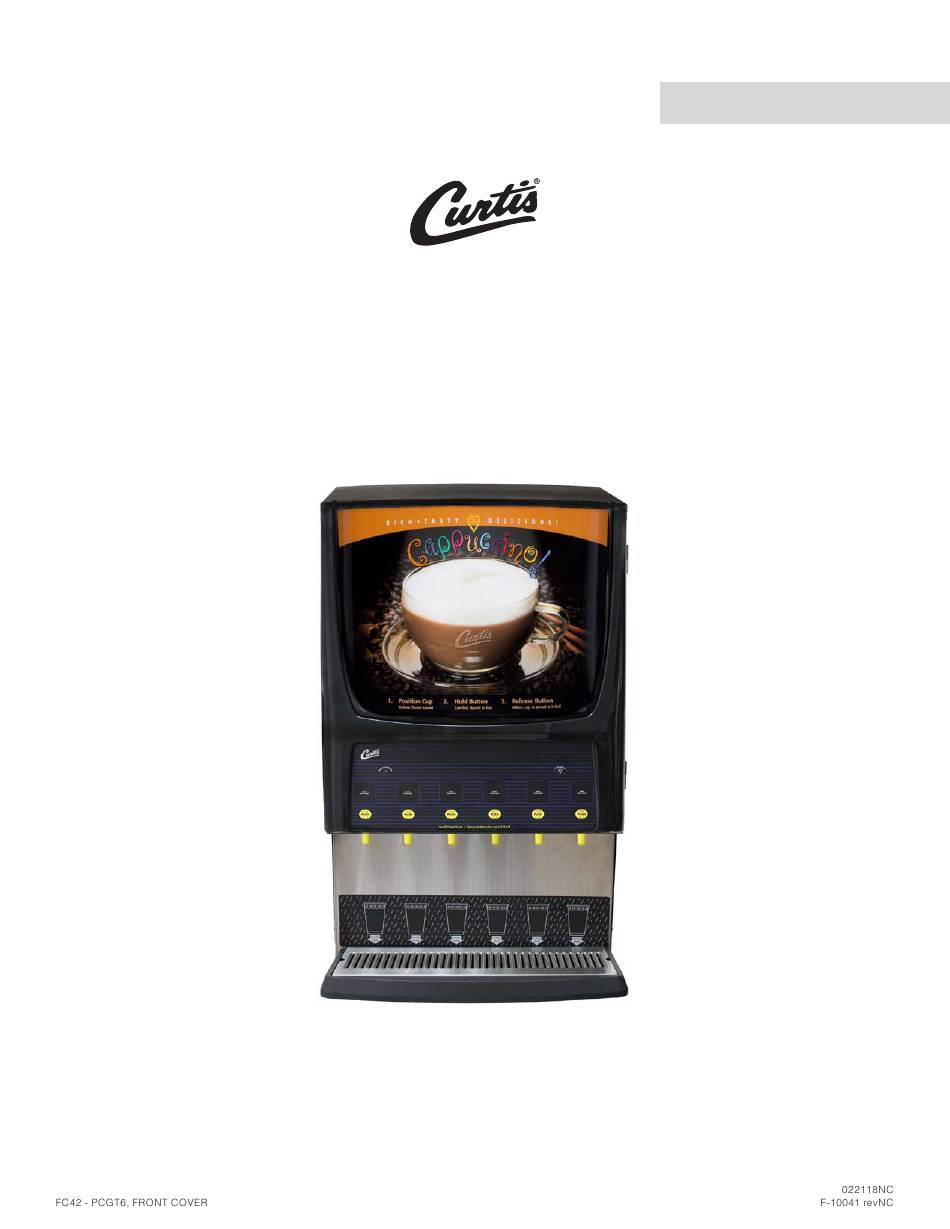

  • Page 1 USER GUIDE Primo Cappuccino 6 Station ™ Dispensing System READ AND SAVE THESE INSTRUCTIONS NOTICE TO INSTALLER: Please leave this booklet with the machine.
  • Page 2: Table Of Contents

    ............................................................................................................................................EC7 ..............................Contact Information Wilbur Curtis Co., Inc. 6913 Acco Street | Montebello, CA 90640 US Phone: 323-837-2300 | Toll Free: 800-421-6150 Email: csrassistance@wilburcurtis.com | Web: www.wilburcurtis.com . - 4:00 . PT Email: techsupport@wilburcurtis.com 022118NC...
  • Page 3: Fs42

    KEY FEATURES/SPECIFICATIONS/SYSTEM REQUIREMENTS FS42 Key Features • G3 Digital Control Module - Provides precise control over all critical blending and dispensing functions. • Factory Pre-Set - For out-of-the-box operation. • 80°F (27°C) to 204°F (96°C) to create the perfect hot or cold beverage. 5.3 gal/hr 6 Station 1 PH...
  • Page 4: Is2

    INSTRUCTIONS could result in personal injury or void the warranty. • This appliance is designed for commercial use. Any service other than cleaning and preventive maintenance should be performed by an authorized Wilbur Curtis service technician. • serviceable parts inside.
  • Page 5 IMPORTANT SAFEGUARDS CE Requirements • This appliance must be installed in locations where it can be overseen by trained personnel. • • This appliance is not suitable for outdoor use. • • • This appliance must not be cleaned by water jet. •...
  • Page 6: Ii2

    INSTALLATION INSTRUCTIONS WARNING: WARNING: Improper electrical connection may result in an electric shock hazard or damage the unit. This appliance must be properly grounded. NOTICE: DO NOT connect this appliance to a hot water supply. The water inlet valve is not rated for hot water.
  • Page 7: Ii22

    INSTALLATION INSTRUCTIONS II22 Installation Leveling WARNING: Use the leveling legs to level the dispenser only. Do not use them to adjust dispenser height. Do not extend them higher than necessary. Position the dispenser on the counter top. Level it left to right and front to back by turning the bottom of the Style may vary legs.
  • Page 8 INSTALLATION INSTRUCTIONS II22 Setting Up 120/220 Volt Units for 220-240 Volt Operation Style may vary WARNING: Do not connect the power cord to the power supply until instructed to do so. Remove the top and left side covers to expose the terminal block.
  • Page 9 INSTALLATION INSTRUCTIONS II22 Connecting the Wiring (Units That Come from the Factory Without a Power Cord Attached...cont.) 18 Feed the power cable into the unit. The unit may be Power wired for connection directly to a junction box or for use cable with a power plug that connects to an electrical outlet meeting the SPECIFICATIONS.
  • Page 10 INSTALLATION INSTRUCTIONS II22 Power Up the Unit 24 Turn on the water supply valve. 25 Make sure that the circuit breaker supplying power to the dispenser is on. 26 Turn the toggle switch on the back of the dispenser to correct volume, the heating element(s) will turn on automatically.
  • Page 11: Oi33

    OPERATING INSTRUCTIONS OI33 Dispensing WARNING - TO AVOID SCALDING, AVOID SPLASHING. Keep body parts clear of the spout during dispensing. Do not remove the cup during dispensing. The G3 dispenser is factory preset for optimal performance. The unit should be ON. Open the front panel.
  • Page 12: Ci19

    CLEANING INSTRUCTIONS CI19 Spout Cleaning - Every 3 or 4 Hours Make sure power is ON. Place a container under the dispense spout to catch the rinse water. water running from the spout runs clear. Cleaning the Exterior - Daily WARNING: HOT SURFACES - To avoid injury, allow the dispenser to cool before cleaning.
  • Page 13: Ci20

    CLEANING INSTRUCTIONS CI20 Cleaning The Whipper Plate Assembly CAFEPC and PCGT Series - Weekly or As Needed The dispenser should be OFF. Turn the dispenser off by turning the rear toggle switch to the OFF position. Remove the dispensing spout from the whipper Mounting chamber.
  • Page 14 PROGRAMMING GUIDE PG12 CURTIS Ready to Dispens To enter programming mode: With unit ON, press and hold Entering STOP/WASH button for 10 CURTIS Programming mode Ready to Dispens seconds. While pressing STOP/WASH, Washing... “Washing...Select Station” Select Station appears on the display.
  • Page 15 100% 70 gm next menu. *Approximate Banner Name - changes the banner name that appears on the display (the factory default is CURTIS to access. Press to choose the letter to change. Then press repeatedly to change the letter. Press...
  • Page 16 PROGRAMMING GUIDE PG12 Programming Options (cont.) 1, 2 Dispense Total - when accessed, displays the total dispense cycles on the unit. It cannot be reset. The display returns to the previous screen automatically after a few seconds. Press to continue to the next menu.
  • Page 17 ROUGH-IN DRAWINGS RD48 PCGT6 24.54 in [62.3 cm] 20.86 in [53.0 cm] 23.68 in [60.1 cm] 34.78 in [88.3 cm] 6.17 in [15.7 cm] 13.94 in 8.38 in [35.4 cm] [21.3 cm] CUP CLEARANCE DISPENCE BUTTON HEIGHT 43.38 in [110.2 cm] LIFT DOOR MODELS MODEL PCGT6300 SHOWN...
  • Page 18 ILLUSTRATED PARTS LIST IP81 PCGT6 - Door Assemblies - Exploded View PCGT6 MISCELLANEOUS PCGT6300 PCGT6, ILLUSTRATED PARTS/RECOMMENDED PARTS 122619D...
  • Page 19 DESCRIPTION DOOR, COVER PCGT6 WC-10012 SMART MEMBRANE ENCODER PCGT6 CA-1180K3 1 (REPLACES CA-1170-105 & CA-1107) WC-39350-02 LABEL, PANEL FLAVOR PCGT’S CURTIS DOOR, COVER PCGT6300 WC-4932 2 CA-1180K4 2 GAS, SPRING 40LBS PCGT5300 (REPLACES CA-1170-106 & CA-1107) WC-4933 2 RECEPTACLE QUICK RELEASE GAS SPRING...
  • Page 20 ILLUSTRATED PARTS LIST IP81 PCGT6 - Exterior - Exploded View PCGT6, ILLUSTRATED PARTS/RECOMMENDED PARTS 122619D...
  • Page 21 ILLUSTRATED PARTS LIST IP81 PCGT6 - Exterior - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-68159 1 COVER, TOP PCGT5 WC-1200 CORD, 14/3 SJTO 6’ BLK W/PLUG WC-68159-101 2 COVER, TOP PCGT5300 WC-3503 LEG, 3/8”-16 STUD SCREW BUMPER WC-68123 PANEL, SIDE LEFT PCGT3/5 WC-68147...
  • Page 22 ILLUSTRATED PARTS/RECOMMENDED PARTS IP81 Water tanks assembly, see section IP82 Also available as part of canister mixer kit, item 9. PCGT6, ILLUSTRATED PARTS/RECOMMENDED PARTS 122619D...
  • Page 23 ILLUSTRATED PARTS LIST IP81 ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-4525 SCREW, 8-32x1/4PHILLIPS TRUSS HD SS WC-10013 CONTROL MODULE, UPM 120V PCGT6 CA-1030-17 HOSE, EXTRACTOR FAN 17” LONG ALL PC’S HEATSINK, ASSY DV ALPDS/D500AP TCTD/ WC-8556 PTTD CA-1030-13 HOSE, EXTRACTOR FAN 13”...
  • Page 24 ILLUSTRATED PARTS LIST IP82 WC-62059 - Tank Assembly Water Level Probe Detail (Older Units) a Valve must be calibrated when replaced. See instructions with kit. WC-62059 - Tank Assembly - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-62059 TANK, COMPLETE PCGT6 1600W 120V...
  • Page 25 ELECTRICAL SCHEMATICS ES86 Domestic, 6 Station Models...
  • Page 26 TROUBLESHOOTING GUIDE TG23 WARNING: Electric Shock Hazard - Scald and Burn Hazard - IMPORTANT: always check all inlet and Valve Test Procedure Troubleshooting Guidelines ERROR CODES • • • Use this troubleshooting guide along with the appropriate ELECTRICAL SCHEMATIC. • Valve Test Procedure in either direction Water Not Hot Enough...
  • Page 27 TROUBLESHOOTING GUIDE TG23 Water Does Not Heat At All Tank Does Not Fill • Water Not Hot Enough • Ready to Dispens • Heating... ELECTRICAL SCHEMATIC Heating... Water Too Hot (Boiling or Excessive Steaming) IMPORTANT: Over Temp Sensor or Ready to Dispens Over Temp Sensor Error Message Heating...
  • Page 28 TROUBLESHOOTING GUIDE TG23 No Power - Display Not Lit Water Tank Does Not Fill Water Tank Does Not Fill IMPORTANT:...
  • Page 29 TROUBLESHOOTING GUIDE TG23 Water Level Error Message ERROR CODES SPECIFICATIONS Water Flows From Dispenser Spout Constantly No Water Flows From the Spout While “Dispensing...” Appears on the Display PROGRAMMING GUIDE Only Water is Dispensed PROGRAMMING GUIDE...
  • Page 30 TROUBLESHOOTING GUIDE TG23 Product Dispensed Into Cup is Weak IMPORTANT: PROGRAMMING GUIDE Whipper Motor Does Not Run During Dispensing Dispenser Does Not Respond (at all) When Dispense Button is Pushed Dispensing... Dispensing... Dispensing... During Dispensing Manual dispense models: Preset dispense models: PROGRAMMING GUIDE Front Panel Light Not Working ILLUSTRATED PARTS LIST...
  • Page 31 TROUBLESHOOTING GUIDE TG24 Dump Valve Calibration After installing a new dump valve, do not reinstall the dump valve cover and canisters, so that you can perform the calibration steps below: Turn the toggle switch on the back of the unit to the ON position. Wait for the ready light to come on. Place a measuring cup below the spout connected to the dump valve that was replaced.
  • Page 32: Ec7

    ERROR CODES System Fault Messages An error message will appear on the screen in the event of a malfunction under the following conditions: ERROR MESSAGE WARNING DESCRIPTION CAUSE Water Level Error 1-(800)-000-0000 1-(800)-000-0000...
  • Page 33 Return Merchandise Authorization (RMA): All returned equipment must be properly re-packaged in the original carton and received by Curtis within 45 days following the issuance of a RMA. NO UNITS OR PARTS WILL BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA).
