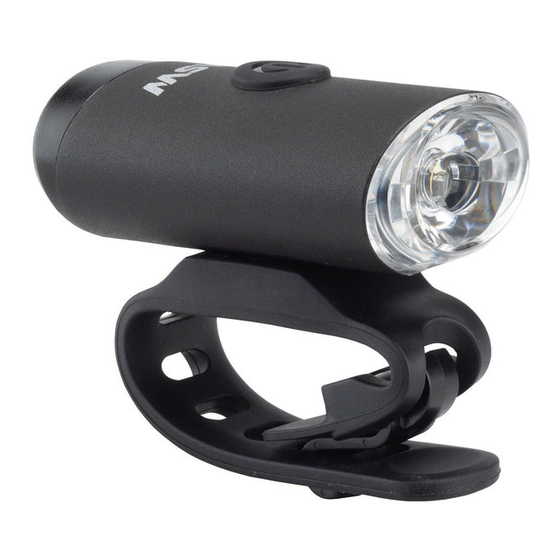

TIGER MOTH 100 HEADLIGHT
Thank you for your purchase! At MSW
accessories makes a good bike ride great. Tiger Moth 100 is MSW's handy
USB rechargeable headlight. Keep it on your bike mounted to the handlebars,
or easily remove it for safe storage in a commuter backpack or bag. Be seen
on your rides!
WARNING: Cycling can be dangerous. Bicycle products should be
installed and serviced by a professional mechanic. Never modify your bicycle
or accessories. Read and follow all product instructions and warnings
including information on the manufacturer's website. Inspect your bicycle
before every ride. Always wear a helmet. For more information, please visit
www.mswbike.com/safety

COMPATIBILITY AND INTENDED USE

WARNING: Ensure that the Tiger Moth 100 Headlight is placed an
adequate distance away from any rotating components of the bicycle or
bicycle wheels and is not obstructed by any components, accessories, or
cargo.

COMPONENTS - HEADLIGHT

Light
USB cable

INSTALLATION

Install the bracket onto your handlebar.
Ø18~48mm
≤Ø23mm
≤Ø23mm
360° ROTATABLE BRACKET
360°

TO SWITCH MODES

Press the button for 1.5 seconds to turn ON or OFF.
Off
Press
MODE MEMORY FUNCTION: When you turn the light on, it lights
Press
up in the last lighting mode you used.
6400 WEST 105TH STREET // BLOOMINGTON, MN 55438 // 1-855-883-6563 // WWW.MSWBIKE.COM
196351 5/19 | 85-001105_INST_A
we believe having essential
®
≥Ø23mm
≥Ø23mm
Low Beam
High Beam
Pulsating
Flashing
4 hrs
1.5 hrs
7 hrs
18 hrs

BATTERY CAPACITY INDICATOR

Double click to show the remaining capacity with different modes.
Constant: 100–50%
Slow flash: 49–25%
Fast flash: 24–0%
Double Click

LOW BATTERY INDICATOR

Less than 25% battery remaining
In constant mode: circular flashing
In flashing mode: pulsed constant lighting

CHARGING

1. Open the rubber cover at the bottom of the light.
2. Plug in provided micro USB cable then plug into USB port.
Charging: Light ON
Fully charged: Light OFF
Open

SPECIFICATIONS

Size: 54 x 29.5 x 24.5mm
Weight: 36.5g
100 Lumen LED: 3 watt white LED
Battery: Rechargeable lithium-ion polymer
Charging: 5V/0.5A, 2H
Accessories: Micro USB cable

ONGOING MAINTENANCE

Periodically make sure your light is securely mounted and in working order.
Inspect mounting brackets for damage.
Micro USB
