Page 1: Quick Installation Guide
ZyAIR B-120 Wireless LAN PC Card Quick Installation Guide Version 2.00 September 2003... -
Page 2: About Your Zyair

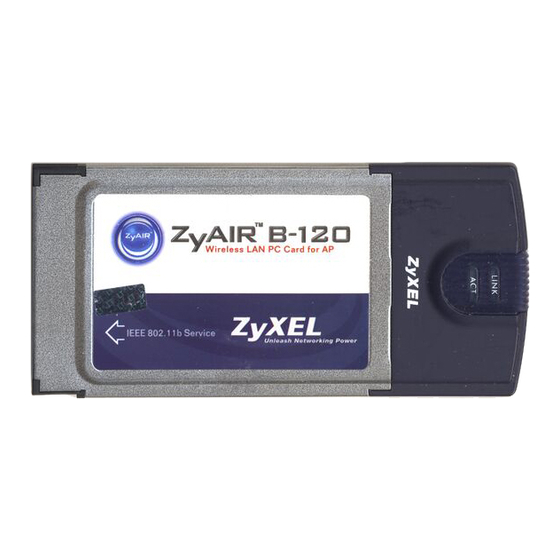

About Your ZyAIR The ZyAIR is an IEEE 802.11b compliant wireless LAN PC card that fits into any type II PCMCIA slot. Its maximum 11 Mbps data rate, which gives Ethernet equivalent speed, is ideal in the corporate or home environment. Users enjoy the wireless mobility within the coverage area. - Page 3 ZyAIR Utility and Hardware Installation The installation procedures are similar for all supported Windows versions. Windows XP screen shots are shown unless otherwise specified. DO NOT insert the ZyAIR at this point. 1. Insert the support CD into the CD-ROM drive on your computer.
- Page 4 2. Click Next to accept the default file location or click Browse to select an alternate folder. 3. Windows 2000/XP: Click Finish to complete the installation. Windows 98 SE/Me: Click Finish to restart the computer.
- Page 5 4. Locate an available PCMCIA slot on the computer. 5. With the pin connectors facing the slot and the LED side facing up, slide the ZyAIR into the slot. The LEDs turn on if the ZyAIR is properly inserted. Never bend, force or twist the ZyAIR into the slot.
- Page 6 2. When a Connect to Wireless Network window displays, click Advanced. 3. In the Wireless Network Connection Properties window, clear the Use Windows to configure my wireless network settings check box. Click OK.
-
Page 7: Accessing The Zyair Utility
Accessing the ZyAIR Utility 1. After you install the ZyAIR Utility and insert the ZyAIR, an icon appears in the system tray. If the ZyAIR Utility icon displays, the ZyAIR is installed 2. Double-click on the ZyAIR Wireless LAN Utility icon in the system tray to open the ZyAIR Wireless LAN Utility program. -
Page 8: Troubleshooting
COLOR STATUS Blue Blinking LINK Blue Blinking PROBLEM Windows does not Make sure the ZyAIR is inserted into the computer PCMCIA slot auto-detect the properly and then restart your computer. Check the LEDs on ZyAIR. the ZyAIR. Perform a hardware scan by clicking Start, Settings, Control Panel and double-clicking Add/Remove Hardware. - Page 9 PROBLEM Install the ZyAIR in another computer. If the error persists, you may have a hardware problem. In this case, you should contact your local vendor. Cannot start the Make sure the ZyAIR is properly inserted and the LINK LED ZyAIR Wireless blinks.
