Summary of Contents for Opel mobile CandyBar
-
Page 2: Table Of Contents
Table of Contents Safety Information ................3 Overview of the phone ..............6 Quick Setup Guide ................9 Keypad Functions (Predictive text) ..........12 Phonebook/Calls ................13 Phonebook Settings ..............15 Call History ................... 16 Messages ..................18 Camera ..................19 FM Radio .................. -
Page 3: Safety Information
Safety Information Read this entire manual carefully before you start using the device. This will take you a few minutes, but it will save you time later and will allow you to enjoy all the features on your device. THIS MODEL MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES Your mobile device is a radio transmitter and receiver. - Page 4 Use only Opel Mobile accessories or chargers that came with this phone Be careful when handling the battery. The lithium-ion battery can be put into use immediately after being unpacked. Use only the Opel Mobile battery that came with the...
- Page 5 device. We recommend charging the battery as soon as possible once the phone has been switched on. Immediately stop using the battery charger if you smell an odour or overheats or a crack appears in the casing. In case you notice the cable, or the plug have suffered any damage, discontinue using it and contact sales support line as soon as possible for advice.
-

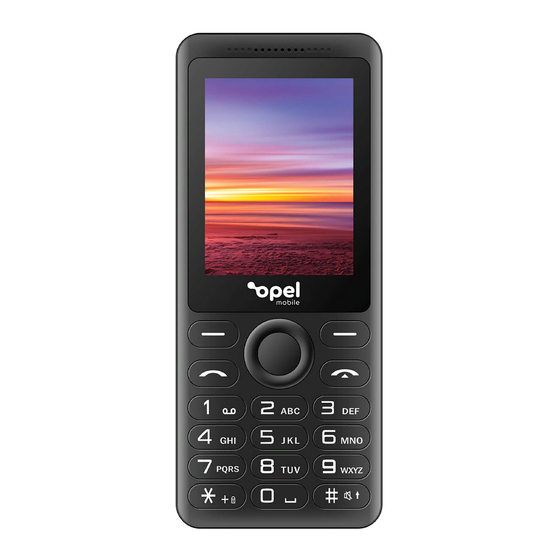

Page 6: Overview Of The Phone
Overview of the phone... - Page 8 1. Ear speaker 2. Up key/Shortcut key - User profiles, FM radio, Calculator, Alarm 3. Menu/ok/options/select key 4. Left key/Shortcut key - Camera 5. Answer call/Call key 6. Down key/Shortcut key - Calendar 7. Number keypad/letter keypad 8. Star key/+ key/Unlock keypad key 9.
-
Page 9: Quick Setup Guide
Quick Setup Guide Installing the SIM card This phone requires a nano size SIM card which is the smallest of the 3 SIM cards available. If you don’t have a nano size SIM card, please contact your SIM card provider to receive a nano sized SIM card. - Page 10 The SIM card tray is located in the lower middle of the phone, place your finger on the SIM tray cover and slide down to unlock. Carefully lift the SIM tray cover so to not bend or break the cover. Insert the nano sized SIM card, making sure the cornered edge of the SIM card is located in the top left corner and the gold plates are facing down on the gold plates of the SIM tray.
- Page 11 To charge your phone, insert the power adaptor into the wall. Then insert the micro USB into the phones USB charging port Turn the power on from the wall We recommend charging the phones battery for at least 4 hours before your first use. *Please note, if your battery goes completely flat, you will need to charge the battery for at least 10 minutes before the phone will be able to be turned on.
-
Page 12: Keypad Functions (Predictive Text)
Keypad Functions (Predictive text) This phone uses predictive text to help you type in names and words quicker and more easily. This function is available when adding new contacts and text messaging. Typing words When typing in words or names using the keypad simply press the letter on the keypad you wish to select. -
Page 13: Phonebook/Calls
Phonebook/Calls Adding new contacts (Please note: if you’re adding a contact to your SIM cards memory, adding photos and selecting ringtones are not possible, this feature is only available if adding contacts to the phones memory.) Select menu using the left menu key or the ok key. Using the cursor, scroll up to phonebook and select ok using the left menu key or the ok key. - Page 14 Answering a phone call To answer an incoming call, simply press the answer call key. Rejecting a phone call To reject an incoming call, simply press the end call/reject call key. Activating Loudspeaker/Handsfree on calls Whilst on a call simply click on H-free using the right back key to turn on handsfree loudspeaker.
-
Page 15: Phonebook Settings
Phonebook Settings To access the phonebook settings, while in the phonebook press options using the options key. Then scroll down using the down key until Phonebook settings is highlighted then click select to open the phonebook settings menu. Preferred storage Selecting ok on preferred storage you can change the preferred storage of your contacts, simply press the up and down key to select your preferred storage and click ok to save. -
Page 16: Call History
Move contacts Similar to copy contacts, this will allow you to move contacts from your SIM to phones or from your phone to SIM. Follow the same process as copy contacts Delete all contacts Selecting ok on delete all contacts will allow you to delete all your contacts on your phone or on your SIM card Press ok on From SIM or From Phone then enter the phones passcode to confirm the deletion. - Page 17 GPRS counter – select ok on GPRS counter. This will show how much data you have used for multimedia messages. If you wish to reset the GPRS counter, select ok on reset counter. Call Settings Select ok on call settings to open the call settings menu. Caller ID –...
-
Page 18: Messages
Messages Write message Select ok on menu and scroll up to messages then click ok. Select ok on write a message. Using the keypad type in the message you wish to send. Once complete click the enter key and select the contact or phone number you wish to send the message to by clicking select on add from phonebook or enter recipients phone number. -
Page 19: Camera
Advanced – Here you can copy the message to your phone, move to your phone, copy all messages, move all messages Details – This will show the phone number of who sent the message and details when it was sent and where the message is saved Delete Messages To delete messages, select menu then select ok on messages. -
Page 20: Fm Radio
FM Radio When using the FM Radio you must insert a pair of headphones to enable the FM Radio Select menu then click ok on FM Radio to open. To search for stations you can use the left and right arrow keys to search manually. To auto search click options then scroll down to auto search. -
Page 21: Organizer
Audio Player Select ok on audio player to open the audio player folder. Within this folder it will show you all your audio recordings, simply press options to choose to play or delete your recordings Sounds Recorder Click ok on sound recorder to open this function Click options to choose to create a new recording, once you have completed recording simply press the stop key and click yes to save. -
Page 22: Settings
Settings Select the menu key and then select ok on settings to open the settings menu. User Profiles – You can choose different user profiles. Simply click options to select a different profile or edit a profile by selecting customize. Within this menu you can change all your volumes and tones for calls, messages, alarms and more. - Page 23 The phone is asking for a PUK code This means you have input the incorrect password 3 times or more. Contact your SIM Card provider to retrieve your PUK code to unlock your phone. SIM card error or no SIM card Ensure you have inserted the SIM card correctly and are using the correct size SIM card.
- Page 24 Mobile Phone wont charge Ensure the power plug is inserted in the wall socket correctly and the wall switch is turned Ensure the wall power socket is working by testing another device or a separate power socket. Ensure you have inserted the micro USB cord into the phone correctly. Ensure there is no dirt or dust accumulated in the phones power socket.
