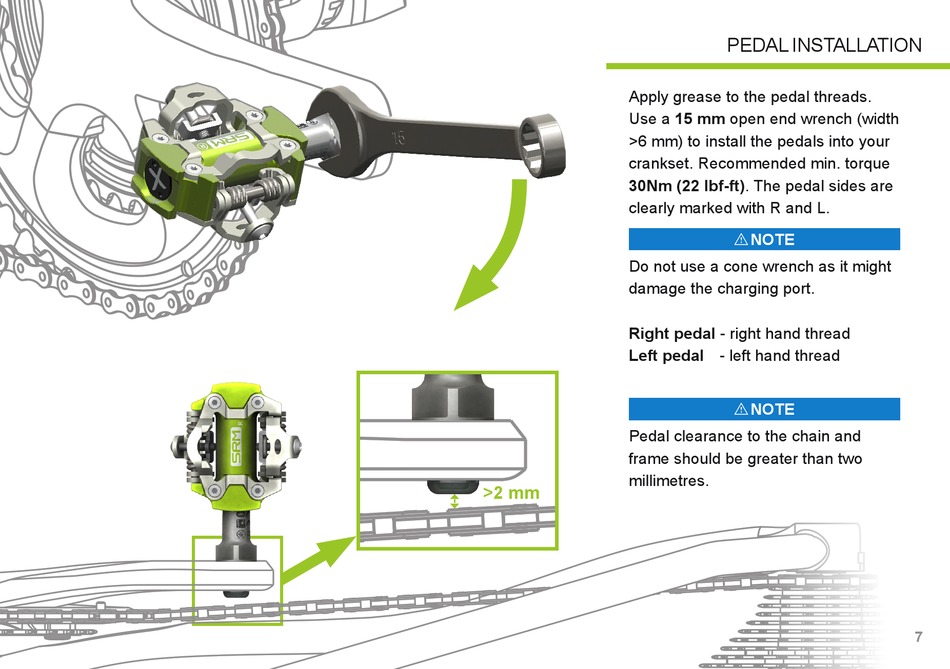

PEDAL INSTALLATION
Apply grease to the pedal threads.
Use a 15 mm open end wrench (width
>6 mm) to install the pedals into your
crankset. Recommended min. torque
30Nm (22 lbf-ft). The pedal sides are
clearly marked with R and L.
I NOTE
Do not use a cone wrench as it might
damage the charging port.
Right pedal - right hand thread
Left pedal - left hand thread
I NOTE
Pedal clearance to the chain and
frame should be greater than two
millimetres.
>2 mm
7
