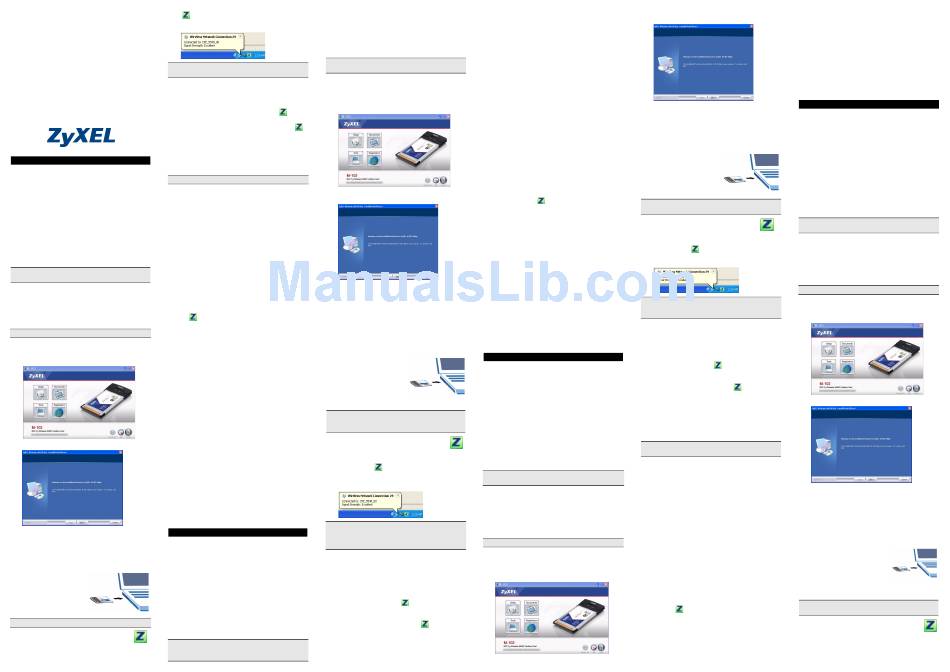

If the
icon on your desktop, you are already connected to a
ZyXEL M-102
wireless network.
802.11g Wireless MIMO CardBus Card
Quick Start Guide
Refer to the User's Guide for how to configure security
settings or connect to a specific wireless network.
Note for Windows XP Users
If you want to use WZC, either disable the ZyXEL utility
Version 2.00
(if you already installed it) or just install the driver.
Edition 1
3/2006
• To disable the ZyXEL utility, right-click the
and select Use Windows Zero Configuration. To
activate the ZyXEL utility again, double-click the
icon and click OK.
• To install the driver only,
1 Locate your computer's card slot. With the pin
connectors facing the slot and the side with lights
English
facing up, slide the M-102 into the slot. The M-102's
lights turn on if it is properly inserted.
About Your ZyXEL M-102
Never bend, force or twist the M-102 into the port.

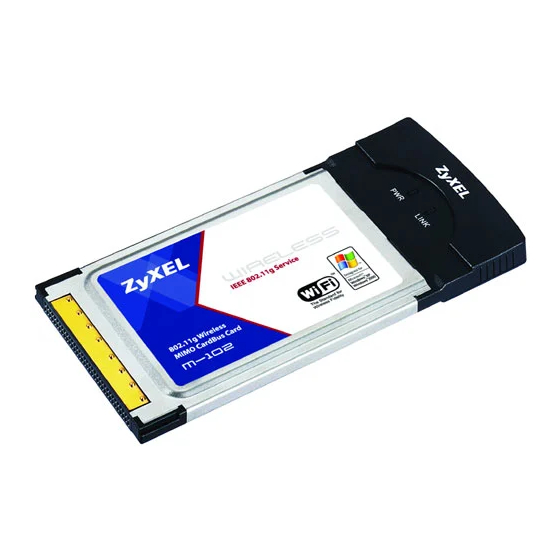

The ZyXEL M-102 is a wireless network card for your
laptop.
2 The Found New Hardware Wizard window
appears. (In Windows XP SP2, select No, not this
Installation Requirements
time and click Next.)
Before installation, make sure you have a computer with
3 Select Install from a list of specific location
the following:
(Advanced) and click Next.
• Pentium II 366MHz or above
4 Insert the included CD into your CD-ROM drive,
• A minimum of 20 MB available hard disk space
select Search removable media (floppy, CD-
• A minimum of 128 MB RAM
ROM...) and then click Next.
• A CD-ROM drive
5 Click Finish in the last wizard screen to complete
• A CardBus slot
the installation.
• Windows 2000 or Windows XP
Troubleshooting
If you have already installed Funk Odyssey Client
• If the M-102 does not fit into a card slot on your com-
software on the computer, uninstall (remove) it.
puter, check your computer specifications to verify
that your computer has a CardBus slot.
Installation
• If the lights on the M-102 are not on after you installed
If you want to use Wireless Zero Configuration (WZC)
the utility and the M-102, make sure the M-102 is
with Windows XP, see
Note for Windows XP
Users.
properly inserted.
The installation procedures are similar for all supported
• If the
Windows versions.
the utility. See the User's Guide for how to uninstall
the utility.
Install the ZyXEL Utility before you insert the M-102.
• If your M-102 does not connect to a wireless network,
1 Insert the included CD into the CD-ROM drive on
make sure there is an available wireless network
your computer. When the following screen displays,
within range (see your User's Guide for details about
click Setup. If the screen does not display, locate
the site survey feature). If wireless security is enabled
and double-click autorun.exe.
for that network, you need to configure security set-
tings in your M-102 (see the User's Guide).
Important Information
Federal Communications Commission (FCC)
Interference Statement
The 802.11g Wireless LAN Adapter has been tested to
the FCC exposure requirements (Specific Absorption
Rate).
The equipment complies with FCC RF radiation
exposure limits set forth for an uncontrolled environment,
under 47 CFR 2.1093 paragraph (d) (2).
2 The following screen displays. Click Next.
This Transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Refer to the User's Guide for general FCC statements.
Procedure to View a Product's Certification(s)
1 Go to www.zyxel.com
2 Select your product from the drop-down list box on
the ZyXEL home page to go to that product's page.
3 Select the certification you wish to view from this
page.
3 Click Next to accept the default file location or click
Browse to select an alternate folder.
Über Ihr ZyXEL M-102
4 Click Install to start installation.
Die ZyXEL M-102 ist eine Drahtlosnetzwerkkarte für
5 Click Finish to restart the computer.
Laptops.
6 Locate your computer's card slot.
Installationsanforderungen
7 With the pin connectors
facing the slot and the
Stellen Sie bitte vor der Installation sicher, dass Ihr
side with lights facing
Computer die folgenden Anforderungen erfüllt:
up, slide the M-102 into
• Pentium II 366MHz oder höher
the slot. The M-102's
• Mindestens 20 MB freier Festplattenspeicher
lights turn on if it is
• Mindestens 128 MB RAM
properly inserted.
• CD-ROM-Laufwerk
Never bend, force or twist the M-102 into the port.
• CardBus-Einschub
After you install the ZyXEL Utility and insert the
• Windows 2000 oder Windows XP
M-102, an icon appears in the system tray
Wenn auf Ihrem Computer das Programm Funk Odyssey
(typically at the bottom of the desktop).
Client installiert ist, muss dieses zunächst deinstalliert
(entfernt) werden.
Installation
icon color is green and/or you see the following
Wenn Sie die Wireless Zero Configuration (WZC) von
Windows XP verwenden möchten, beachten Sie den
Hinweis für Windows
Der Installationsvorgang ist für alle unterstützten
Windows-Versionen ähnlich.
Installieren Sie das ZyXEL-Utility-Programm bevor Sie
die M-102 einsetzen.
1 Legen Sie die mitgelieferte CD in das CD-ROM-
Laufwerk des Computers ein. Wenn das folgende
Fenster erscheint, klicken Sie auf Setup. Wenn
dieses Fenster nicht erscheinen sollte, navigieren
Sie auf der CD zur Datei autorun.exe und klicken
Sie doppelt darauf.
icon
2 Das folgende Fenster erscheint. Klicken Sie auf
Weiter.
3 Klicken Sie auf Weiter, um den vorgegebenen
Zielordner zu bestätigen oder klicken Sie auf
Durchsuchen, um einen anderen Ordner
auszuwählen.
4 Klicken Sie auf Installation, um die Installation zu
icon does not display, uninstall and re-install
starten.
5 Klicken Sie auf Fertigstellen, um den Computer
neu zu starten.
6 Die Karte muss in den Kartensteckplatz des
Laptops eingesetzt werden.
7 Schieben Sie die M-102
dazu mit den Kontakten
zum Steckplatz und den
Lampen nach oben
zeigend in den Steckplatz.
Wenn die M-102 richtig
eingesetzt wurde,
beginnen die Lampen zu leuchten.
Versuchen Sie unter keinen Umständen, die M-102
durch Biegen, Drehen oder Gewaltanwendung in den
Einschub zu schieben.
Nach Installation des ZyXEL Utility und
Einschieben der M-102 erscheint ein Symbol
im Infobereich (normalerweise im unteren
Bereich des Bildschirms).
Wenn die Anzeige
Bildschirms das folgende Symbol angezeigt wird, ist das
Gerät bereit, eine Verbindung zu einem
Drahtlosnetzwerk herzustellen.
Eine Beschreibung, wie die Sicherheitseinstellungen
Deutsch
konfiguriert werden oder die Verbindung zu einem
bestimmten Drahtlosnetzwerk hergestellt wird, finden Sie
im Benutzerhandbuch.
Hinweis für Windows XP-Benutzer
Wenn Sie die WZC verwenden möchten, müssen Sie
entweder das ZyXEL-Utility-Programm deaktivieren
(wenn es bereits installiert wurde) oder nur den Treiber
installieren.
• Um das ZyXEL-Utility-Programm zu deaktivieren,
klicken Sie auf das Symbol
Option Use Windows Zero Configuration. Wenn Sie
das ZyXEL-Programm wieder aktivieren möchten,
klicken Sie doppelt auf das Symbol
Sie auf OK.
• Wenn nur der Treiber installiert werden soll:
1 Die Karte muss in den Kartensteckplatz des
Laptops eingesetzt werden. Schieben Sie den M-
102 dazu mit den Kontakten zum Steckplatz und
den Lampen nach oben zeigend in den Steckplatz.
Wenn die M-102 richtig eingesetzt wurde, beginnen
die Lampen zu leuchten
XP-Benutzer.
2 Das Hardwareupdate-Assistent-Fenster erscheint.
(Wählen Sie bei XP SP2 die Option No, not this
time und klicken Sie auf Next.)
3 Wählen Sie Software von einer Liste oder
bestimmten Quelle installieren (für
fortgeschrittene Benutzer) und klicken Sie
anschließend auf Weiter.
4 Legen Sie die beigelegte CD in Ihr CD-ROM-
Laufwerk ein. Wählen Sie Wechselmedien
durchsuchen (Diskette, CD,...) und klicken Sie
anschließend auf Weiter.
5 Klicken Sie im letzten Fenster des Assistenten auf
Fertigstellen, um die Installation abzuschließen.
Störungsbeseitigung
• Wenn die M-102 in keinen Kartensteckplatz des Lap-
tops passt, prüfen Sie die Spezifikationen des Lap-
tops, ob dieses über einen CardBus-Steckplatz
verfügt.
• Wenn nach dem Einsetzen der M-102 und dem Instal-
lieren des Utility-Programms die Lampen der M-102
nicht leuchten, prüfen Sie noch einmal, ob die M-102
richtig eingesetzt wurde.
• Wenn das Symbol
nicht angezeigt wird, deinstal-
lieren Sie das Utility-Programm und installieren Sie es
erneut. Im Benutzerhandbuch finden Sie eine Be-
schreibung, wie das Utility-Programm deinstalliert
wird.
• Wenn die M-102 keine Verbindung zu einem Drahtlos-
netzwerk herstellen kann, stellen Sie sicher, ob sich
ein solches Netzwerk innerhalb der Reichweite befin-
det (im Benutzerhandbuch finden Sie ausführliche
Informationen zur Siteabfragefunktion). Wenn die
Drahtlossicherheit für dieses Netzwerk aktiviert ist,
müssen die Sicherheitseinstellungen in der M-102
konfiguriert werden (siehe Benutzerhandbuch).
Vorgehensweise zum Aufrufen einer
Produktzertifizierung
1 Gehen Sie auf www.zyxel.com.
2 Wählen Sie Ihr Produkt aus der Auswahlliste auf der
ZyXEL Homepage aus, um die Seite des
entsprechenden Produkts aufzurufen.
3 Wählen Sie die Zertifizierung aus, die Sie von dieser
Seite aus aufrufen möchten.
Español
Acerca de su ZyXEL M-102
La ZyXEL M-102 es una tarjeta de red inalámbrica para
su portátil.
Requisitos de instalación
Antes de la instalación, asegúrese de que tiene un
equipo en el que se cumplen los siguientes requisitos:
• Pentium II a 366MHz o superior
• Un mínimo de 20 MB disponibles de espacio en disco
duro
• Un mínimo de 128 MB RAM
• Una unidad CD-ROM
• Una ranura CardBus
• Windows 2000 o Windows XP
grün leuchtet und/oder auf dem
Si ya ha instalado el software Funk Odyssey Client en el
ordenador, desinstálelo (quítelo).
Instalación
Si desea utilizar Wireless Zero Configuration (WZC) con
Windows XP, consulte
Nota para usuarios de Windows
XP.
Los procedimientos de instalación son similares para
todas las versiones admitidas de Windows.
Instale la utilidad ZyXEL antes de insertar el M-102.
1 Inserte el CD incluido en la unidad de CD-ROM de
su ordenador. Cuando aparezca la siguiente
pantalla, haga clic en Setup (Configuración). Si la
pantalla no aparece, busque y haga doble clic en
autorun.exe.
und wählen Sie die
und klicken
2 Aparecerá la siguiente pantalla. Haga clic en
para esa red, necesitará ajustar la configuración de
Siguiente.
seguridad en su M-102 (consulte la Guía del usuario).
Procedimiento para ver las certificaciones de un
producto
1 Vaya a www.zyxel.com.
2 Seleccione el producto que desea en el cuadro de
lista desplegable que se encuentra en la página
principal de ZyXEL para obtener acceso a la página
de dicho producto.
3 Seleccione la certificación que desea ver en esta
página.
3 Haga clic en Siguiente para aceptar la ubicación de
archivo predeterminada o haga clic en Examinar
A propos de votre ZyXEL M-102
para seleccionar una carpeta alternativa.
La ZyXEL M-102 est une carte réseau sans fil pour votre
4 Haga clic en Instalar para iniciar la instalación.
laptop.
5 Haga clic en Terminar para reiniciar el equipo.
Configuration requise
6 Localice una ranura para tarjetas en su ordenador.
7 Con los conectores
Avant l'installation, assurez-vous que vous avez un
mirando hacia la ranura y
ordinateur avec la configuration suivante:
el lado con las luces hacia
• Pentium II 366MHz ou plus
arriba, inserte la M-102 en
• Au minimum 20 Mo d'espace disponible sur le disque
la ranura. Las luces del
dur
M-102 se encenderán si
• An minimum 128 Mo de RAM
está bien insertado.
• Un lecteur de CD-ROM
No doble, fuerce, ni retuerza la M-102 para que encaje
• Un emplacement CardBus
en la ranura.
• Windows 2000 ou Windows XP
Tras instalar la Utilidad ZyXEL e insertar el
Si vous avez déjà installé le logiciel Funk Odyssey Client
M-102, aparece un icono en la bandeja del
sur l'ordinateur, désinstallez-le (retirez-le).
sistema (normalmente en la parte inferior del
escritorio).
Installation
Si el color del icono
es verde y/o ve el siguiente
Si vous voulez utiliser la Configuration zéro sans fil
icono en su escritorio, ya está conectado a una red
(WZC) avec Windows XP, consultez les
inalámbrica.
les utilisateurs de Windows
Les procédures d'installation sont similaires pour toutes
les versions de Windows prises en charge.
Installez l'utilitaire ZyXEL avant d'insérer la M-102.
1 Insérez le CD inclus dans le lecteur CD-ROM de
Consulte la Guía del usuario para ver cómo ajustar la
votre ordinateur. Quand l'écran suivant apparaît,
configuración de seguridad o cómo conectarse a una red
cliquez sur Setup. Si l'écran n'apparaît pas,
inalámbrica específica.
localisez et double cliquez sur autorun.exe.
Nota para usuarios de Windows XP
Si desea utilizar WZC, deshabilite la utilidad ZyXEL (si la
tiene instalada) o simplemente instale sólo el
controlador.
• Para deshabilitar la utilidad ZyXEL, haga clic con el
botón derecho en el icono
y seleccione Use Win-
dows Zero Configuration (Usar Windows Zero
Configuration). Para activar la utilidad ZyXEL de
nuevo, haga doble clic en el icono
y haga clic en
OK (Aceptar).
• Para instalar sólo el controlador,
2 L'écran suivant s'affiche. Cliquez sur Suivant.
1 Localice una ranura para tarjetas en su ordenador.
Con los conectores mirando hacia la ranura y el
lado con las luces hacia arriba, inserte la M-102 en
la ranura. Las luces del M-102 se encenderán si
está bien insertado.
Nunca doble, fuerce o tuerza el M-102 en el interior del
puerto.
2 Aparecerá la ventana Asistente para hardware
nuevo encontrado. (En Windows XP SP2,
seleccione No, por el momento y haga clic en
Siguiente.)
3 Cliquez sur Suivant pour accepter l'emplacement
3 Seleccione Instalar desde una lista o ubicación
des fichiers par défaut, sinon cliquez sur Parcourir
específica (avanzado) y, a continuación, haga clic
pour sélectionner un autre dossier.
en Siguiente.
4 Cliquez sur Installer pour lancer l'installation.
4 Inserte el CD incluido en la unidad CD-ROM,
seleccione Buscar en medios extraíbles
5 Cliquez sur Terminer pour redémarrer votre
(disquete, CD-ROM...) y, a continuación, haga clic
ordinateur.
en Siguiente.
6 Localisez le logement de la carte de votre
5 Haga clic en Finalizar en la pantalla del asistente
ordinateur.
para completar la instalación.
7 Avec les connecteurs à
broche dirigés vers le
Solución de problemas
logement et le côté avec les
• Si la M-102 no encaja en una ranura de tarjetas de su
témoins lumineux dirigé vers
ordenador, compruebe las especificaciones para veri-
le haut, insérez la M-102
ficar si su ordenador tiene ranura CardBus.
dans le logement. Les
• Si las luces del M-102 no se encienden tras instalar la
témoins lumineux de la M-102 s'allument si elle est
utilidad y el M-102, compruebe si el M-102 está cor-
correctement inséré.
rectamente insertado.
Ne jamais courber, forcer ou tordre la M-102 pour la faire
• Si el icono
no aparece, desinstale y vuelva a
entrer dans l'emplacement.
instalar la utilidad. Consulte la Guía del usuario para
Après que vous avez installé l'utilitaire ZyXEL
comprobar cómo desinstalar la utilidad.
et inséré la M-102, une icône s'affiche dans la
• Si su M-102 no se conecta a una red inalámbrica,
barre systême (normalement à la base de
compruebe si hay una red inalámbrica disponible
l'écran).
dentro del alcance (consulte su Guía del usuario para
más detalles sobre la característica de búsqueda de
estación). Si hay una seguridad inalámbrica habilitada
Français
Remarques pour
XP.
Need help?
Do you have a question about the M-102 and is the answer not in the manual?
Questions and answers
