BLUM BLUMOTION Quick Start Manual page 2

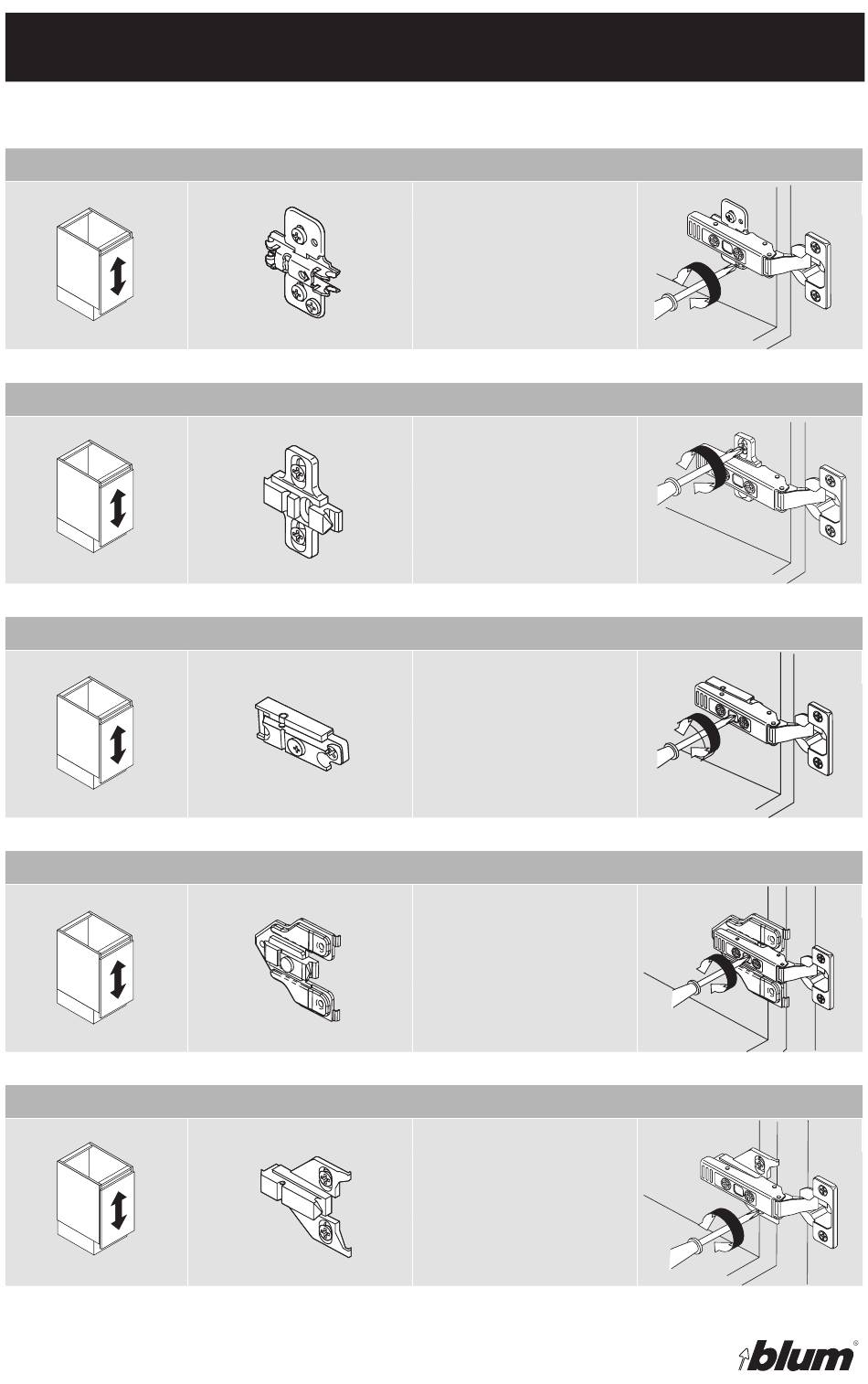

CLIP mounting plate adjustments
Height adjustment
Cam wing mounting plate
One-piece wing plate
Cam in-line mounting plate
Face frame cam adapter plate
Face frame adapter plate
Technical specifications subject to change without notice.
LIT.HNG6200.10.10 © 2010 Printed in USA
Rotate cam screw on
the mounting plate to
adjust door position
( + /- 2 mm).
Loosen screws on the
mounting plate. Adjust
door to position and
tighten screws
( + /- 3 mm).
Rotate cam screw on
the mounting plate to
adjust door position
( + /- 2 mm).
Rotate cam screw on
the mounting plate to
adjust door position
( + /- 2 mm).
Loosen screws on the
mounting plate. Adjust
door to position and
tighten screws
( + /- 2 mm).
