Summary of Contents for VIEWEG smartBOX

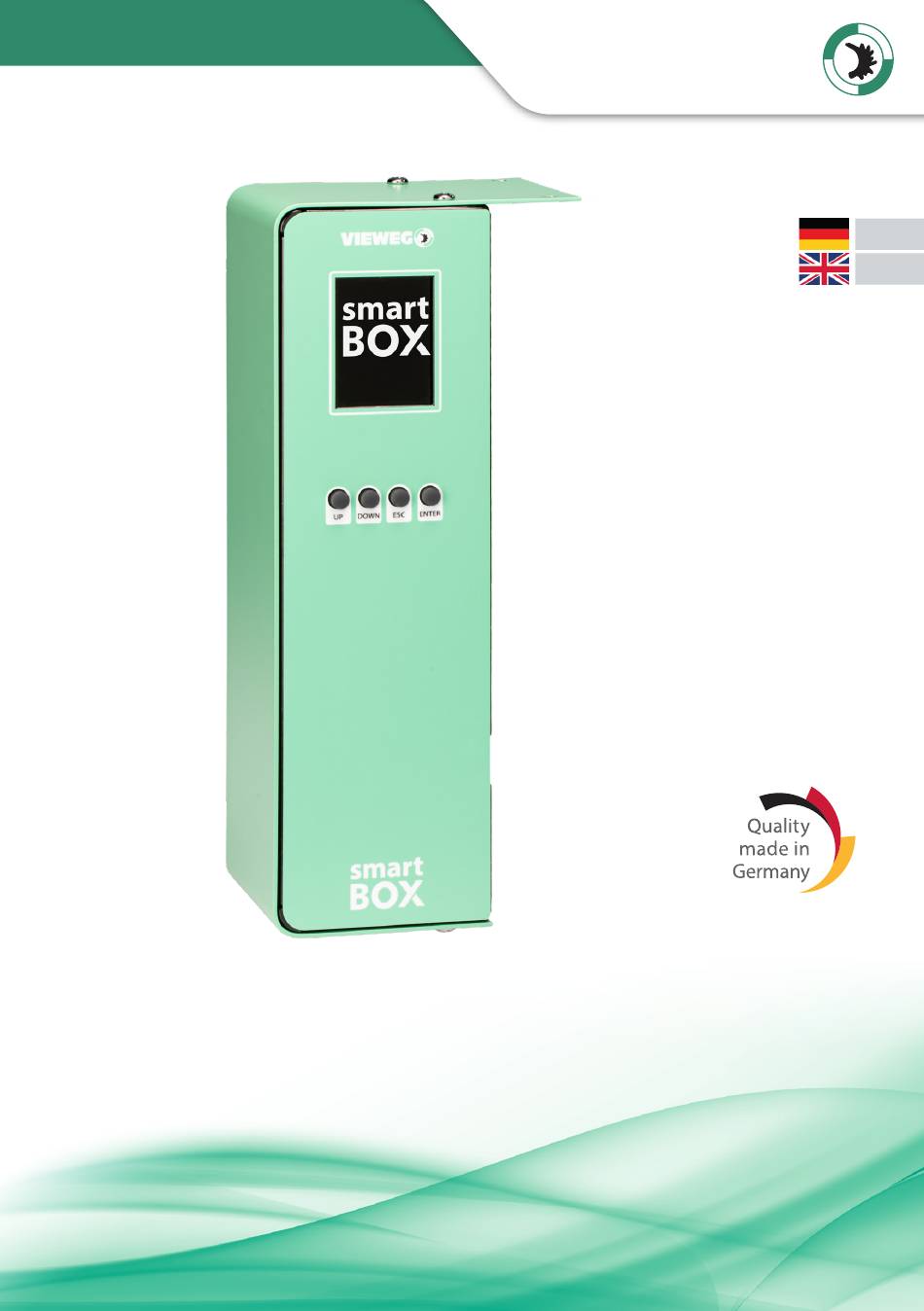

- Page 1 VIEWEG Bedienungsanleitung Operating Instructions smartBOX – eco-PEN-Steuerung smartBOX – eco-PEN control Version 2020/04-01 © VIEWEG GmbH...
-
Page 2: Table Of Contents
Operating Instructions smartBOX VIEWEG Contents 1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 1 . -
Page 3: General Information

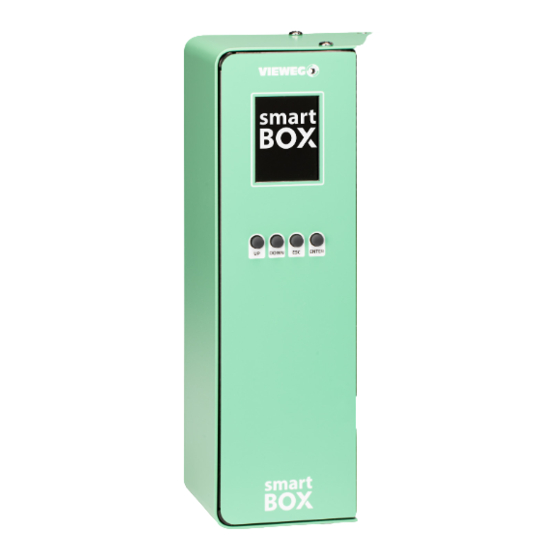

Phone: +49 8166 6784 -0 Email: info@dosieren . d e 1.1 The smartBOX The digital eco-PEN valve controller series smartBOX can be built up with different options, with technical differences . Therefore, in the following manual is only spoken about the smartBOX The digital dispenser smartBOX is used for precise control of preeflow ®... -
Page 4: Scope Of Delivery
Operating Instructions smartBOX VIEWEG 1.3 Scope of delivery The following accessories are included with the smartBOX: operating instructions smartBOX controller input power cord 230 V AC (Item no . C-0043) I/O cord to JR/VR 3000 robots (Item no . C-0107) PCB board (in ESD box) (Item no . -
Page 5: Safety Instructions
Operating Instructions smartBOX VIEWEG 2 Safety instructions 2.1 General safety information If this device is used for purposes other than those WARNING described in this operating manual, personal injury or damage to property may result . Only use the device in accordance with the enclosed instructions . -
Page 6: About Your Dispensing Unit
Operating Instructions smartBOX VIEWEG 3 About your dispensing unit 1 Display 3 eco-PEN connector port 2 Operating controls 4 I/O port 5 Main Power input 6 Fuse 2 amp 7 Main power switch... -
Page 7: Installation
Operating Instructions smartBOX VIEWEG 4 Installation 4.1 Hardware Step 1 open the robot on the backside Step 2 take away the cover under the worktable Step 3 remove the marked screw... - Page 8 Operating Instructions smartBOX VIEWEG Step 4 disconnect the home sensor of the X-axis and let the cord fall inside the robot housing Step 5 unscrew the marked screws on left and right side of robot front cover Step 6 remove the robot front cover from main body of robot housing...
- Page 9 Operating Instructions smartBOX VIEWEG Step 7 remove the marked screws from the main PCB board Step 8 mount the 4 mounting bolts instead of removed screws Step 9 mount the PCB and fix it with the removed screws from before...
- Page 10 Operating Instructions smartBOX VIEWEG Step 10 mount the connector on the robot backside at position I/O-MT Step 11 connect the two connectors to the PCB...
- Page 11 Step 13 mount the retaining plate to the side mounted terminal box Step 14 remove the top cover screws and use them for fixing the smartBOX cover Step 15 mount the smartBOX and fix it with the screws from Step 14...
- Page 12 Operating Instructions smartBOX VIEWEG Step 16 connect the I/O cord from smartBOX to robot Step 17 connect the eco-PEN valve to the smartBOX...
-
Page 13: Software
Operating Instructions smartBOX VIEWEG 4.2 Software to install the new “smartBOX Firmware” to the robot please follow this steps: • switch OFF robot power • plug in the USB pen drive to frontside MEMORY port • switch ON robot power •... -
Page 14: Operation
YES - after booting process, the smartBOX display switch automatically after 3 sec . to the STATUS Menu NO – after booting process, the smartBOX display stays in smartBOX screen . YES – smartBOX has normal function incl . dispensing Dispense: NO –... -
Page 15: Status Menu
5.3 Alarm If the smartBOX does not get any encoder feedback from eco-PEN Motor, for example if Encoder is broken or the motor is blocked, because of a defective eco-PEN pump, the display shows following ERROR message: Check the eco-PEN valve . -
Page 16: Programming Jr/Vr 3000 Robot Series
Operating Instructions smartBOX VIEWEG 5.4 Programming JR/VR 3000 robot series 5 . 4 . 1 Presetting of smartBOX Setup – robot teaching pendant for each robot program: MENU / INDIVIDUAL PROGRAM SETTINGS / DISPENSE CONDITION: Page 1: Description: Wait Time at Start Wait Time (incl . - Page 17 Dispense Amount Decision Valid Information if Dispense Amount (measured via eco-PEN encodersteps) was in tolerance or not get forwarded to smartBOX Invalid Information if Dispense Amount (measured via eco-PEN encodersteps) was in tolerance or not get not forwarded to smartBOX...
-
Page 18: Maintenance And Cleaning
Operating Instructions smartBOX VIEWEG 5 . 4 . 2 Presetting of smartBOX Setup – robot teaching pendant for all robot programs: MENU / DISPENSER SETTINGS: Description: I/O-Function Assignment not relevant for smartBOX settings see original robot manual Purge Switch selectable when Purge Button on Startbox is active Purge by ex . -
Page 19: Disposal
Operating Instructions smartBOX VIEWEG 7 Disposal At the end of its service life, dispose of the controller in accordance with the applicable local regulations . Electrical parts can not be disposed along with household waste . According to Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), electrical equipment must be returned to the collection points set up for this purpose in order to be reused . -
Page 20: Declaration Of Conformity
Operating Instructions smartBOX VIEWEG 9 Declaration of Conformity CE Declaration of Conformity • EC Low Voltage Directive 2014/35/EU • EC Directive Electromagnetic Compatibility 2014/30/EU We hereby declare that the product named below complies with the provisions of the above-mentioned directives and, due to its design and construction, as well as the version marketed by us, complies with the applicable regulations and the relevant provisions . - Page 21 VIEWEG www.dosieren.de VIEWEG GmbH Dosier- und Mischtechnik Gewerbepark 13 85402 Kranzberg Deutschland / Germany Tel. +49 8166 6784 -0 info@dosieren.de www.dosieren.de...
