Servicing

• This Pump, like all mechanical equipment, requires maintenance.
• Every six months the reservoir should be removed, taking care to clean the filter, float
and reservoir thoroughly. We recommend this is done in the Spring and the Autumn,
using an anti-bacterial wash.
• Take great care to replace the reservoir horizontally, with
the float magnet facing upwards.

Troubleshooting

Fault: The Pump runs all the time.
1. Is the float positioned with the magnet uppermost?
2. Is the reservoir lid (sensor) located firmly onto the reservoir, with the float located
inside the reservoir, around the sensor column?
3. Is there any sludge inside the reservoir, preventing the float from resting on the
bottom? (This may be the case if the pump has been in operation for some time.
Clean using an anti-bacterial wash).
4. Is the pump overwhelmed with the volume of condensation? (If so, a larger
pump is required).
Please note:
• After installation and during operation, if you notice air in the pipe between the
reservoir and the pump, you have a siphoning problem (see page 3).
• The pump will only switch off when the float is resting flat on the bottom of
the reservoir.
Fault: The Pump stops and starts, and makes a loud noise.
1. The water is siphoning back through the pump. Follow advice on page 3 to
prevent back siphoning.
Fault: The Pump runs but does not pump any water.
1. Are there any air-leaks in the pipe between the reservoir and the pump?
(Use cable ties to ensure an airtight seal).
2. Are the reservoir and the inlet tube free from sludge and debris?
Fault:
The Pump isn't operating at all.
1. Is power reaching the pump? Is it correctly wired? Is the voltage correct?
2. Is the pump very hot? A thermal cut-out may have been activated, which
will reset automatically once the pump has cooled down.
Aspen Pumps Limited, Apex Way, Hailsham, East Sussex, BN27 3WA, UK
Email: sales@aspenpumps.com Web: www.aspenpumps.com
Tel: +44 (0) 1323 848 842 Fax: +44 (0) 1323 848 847
mini aqua pump
Thank you for buying your new Mini Aqua Pump.
This manual gives instructions on the correct installation, so it is important that you follow
these instructions carefully. Please record the following information for your future reference:
Serial No.:
Date installed:
Location of pump:
sales@aspenpumps.com
I N S T R U C T I O N G U I D E
Designed to be installed within
wall-mounted evaporators or
in the plastic conduit
Quick and easy to install
The Mini Aqua will quietly and reliably
pump condensation water to a maximum
height of 8 metres
www.aspenpumps.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mini aqua pump and is the answer not in the manual?

Questions and answers

Justin
April 24, 2025

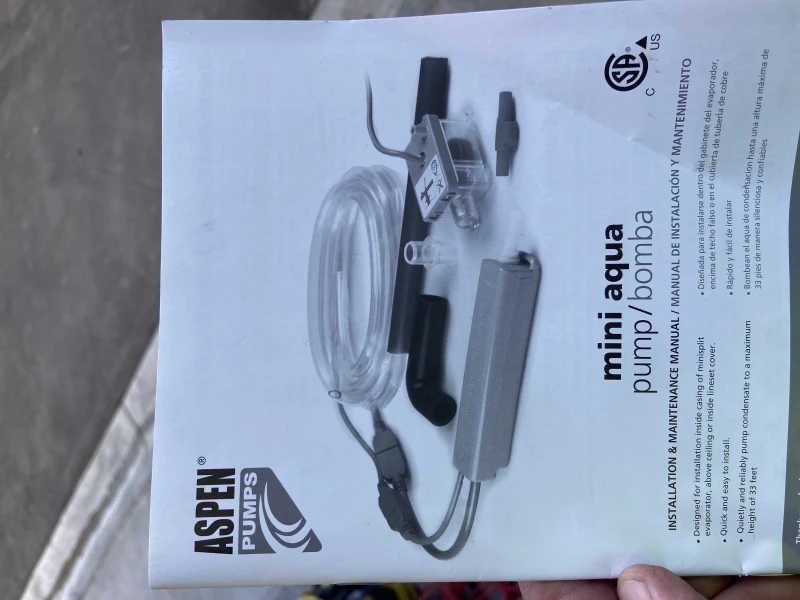

Do the pumps have built in check valves?
