CS Instruments LD 500 Short User Manual

Hide thumbs Also See for LD 500:
Table of Contents

Advertisement

Quick Links

Download this manual
SALES OFFICE SOUTH
Zindelsteiner Straße 15
D-78052 VS-Tannheim
GERMANY
Tel.: +49 (0) 7705 978 99-0
Fax: +49 (0) 7705 978 99-20
info@cs-instruments.com
LD 500_SHORT BAL_V2.03 EN

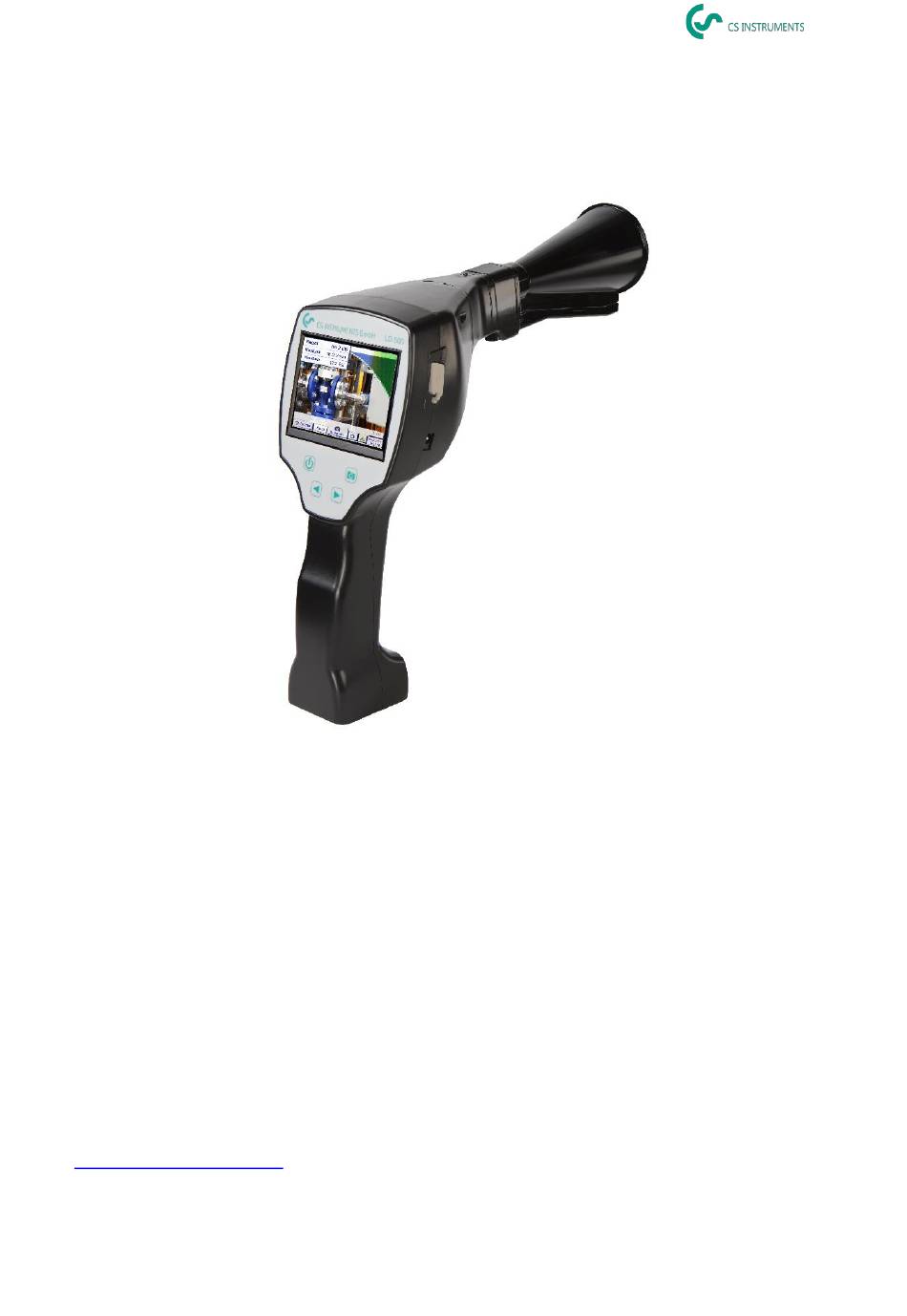

Short user guide LD 500
Page 1 of 20
SALES OFFICE NORTH
Gewerbehof 14
D-24955 Harrislee
Germany
Tel.: +49 (0) 461 807 105-0
Fax: +49 (0) 461 807 105-15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LD 500 and is the answer not in the manual?

Questions and answers

Related Manuals for CS Instruments LD 500

Summary of Contents for CS Instruments LD 500

  • Page 1 Short user guide LD 500 SALES OFFICE SOUTH SALES OFFICE NORTH Zindelsteiner Straße 15 Gewerbehof 14 D-78052 VS-Tannheim D-24955 Harrislee GERMANY Germany Tel.: +49 (0) 7705 978 99-0 Tel.: +49 (0) 461 807 105-0 Fax: +49 (0) 7705 978 99-20 Fax: +49 (0) 461 807 105-15 info@cs-instruments.com...

  • Page 2: Safety Instructions

    CS Instruments GmbH & Co. KG for disposal. CS Instruments GmbH & Co. KG offers no guarantee in relation to the suitability for any other purpose and accepts no liability for any printing errors in this operation manual. The same applies to conse- quential damage in connection with the delivery, capacity or use of this device.

  • Page 3: Intended Use

    2. Intended use The LD 500 is a leak detector for quick and reliable leak detection in/on compressed air systems. The LD500 leak detector evaluates the ultrasonic waves generated by the leakage based on distance and pressure. It is solely designed and constructed for the intended use described here and may only be used for this purpose.

  • Page 4: Preparing The Device

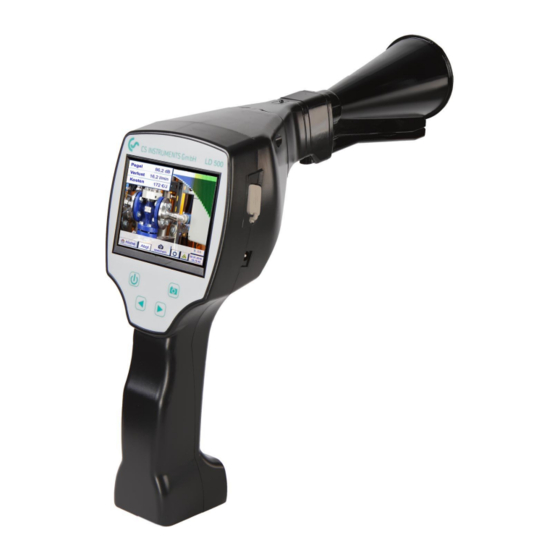

    4. The LD 500 Acoustic trumpet Unlock button for preamp module Camera Preamp module 3.5" TFT colour display with touch panel USB connection Foil keypad (4 buttons) Plug-in connection for power supply (battery On/Off button charger socket) Save button Volume (+/-) 5.
  • Page 5 2. Check firmware in LD500 Path: Home→ Settings → About LD500 → Software Version 3. If the firmware is out of date, download the new version from the CS Instruments homepage 4. Unpack the ZIP file 5. Copy the DEV0004 folder to a USB stick The folder structure must be as follows: 6.
  • Page 6 Configuration of LD500 Home → Configuration  In the configuration settings, the unit system can be se- lected and the required parameters entered to calculate the leakage costs per year. ➔ Select ISO or US unit system ➔ To define the costs, call up the text field "Costs/1000 Nm³"...
  • Page 7 5.3.1 Setting the LD500 parameters Entering the parameters is necessary for the calculation of the leak flow rate. The following settings must be made. ➔ Sensor type Change the sensor type according to the application and ambient conditions, see chapter 6.4. Home →...

  • Page 8: Leakage Detection

    6. Leakage detection This chapter describes the best use of the device in practice. Leakage detection procedure The following procedure should be performed in the company on a periodic basis to consistently keep the leakage rate to a minimum. The aim should be a sustainable leakage rate of 5 to 10 % as one-time detection and elimination does not permanently reduce the leakage rate and new leakages will occur again afterwards.
  • Page 9 Surface leakage detection with the LD 500 After start-up, the device shows the leakage detection view. The following figure lists the various functions and displays. Sensitivity level button Display block for: Bar graph display of signal Signal level in dB | Leakage...
  • Page 10 6.4.2 Straightening tube The straightening tube permits only very few ultrasonic waves to pass in the direction of the ultrasonic transducer, allowing leakages to be located very precisely. For this reason, the use of the straightening tube is recommended for small distances, for the precise detection of the corresponding leakage.
  • Page 11 6.4.4 Parabolic mirror Before the parabolic mirror can be used, its data – located on the supplied USB stick – must be imported into the LD500, if it was reor- dered. Import: Export/Import → New tool → Parabol_xxxxxxxx The parabolic mirror bundles horizontally incident ultrasound in its focal point where the ultrasonic transducer is located.
  • Page 12 The highest sensitivity level 0 – 60 dB of the unit can be set using the "HiSn" button or by manually changing the sensitivity level using the "Sensitivity" button. This mode should be used for the detection of small leaks in a quiet environment. 6.5.1 Sensitivity level button 0 –...
  • Page 13 Production and manufacturing processes may give rise to ultrasound noises at times. If, for example, a pneumatic system blows off air at regular intervals, the LD 500 picks up on this. If leakage detection is severely impeded by these interfering noises, it is recommended to perform leakage detection according to Option 1 or Option 2, if the pipes are pressurised but the manufacturing processes have been stopped.
  • Page 14 Superimposition of leaks: If leaks are close to one another, the emitted ultrasound overlaps. In this case, it is recommended to seal the leak- ages using a cloth. This enormously increases the accuracy of the measurement, especially for the quantification of the leakage. At the same time, measurements should be taken in close proximity to the components.
  • Page 15 Documenting the leakage If the leakage has been found, the pressure and distance to the leakage adjusted and the leakage de- scribed, it can be "captured" with the "Save" button. Afterwards it is possible to check the parameters (pres- sure and distance) and to precisely define the measure- ment place with company, building and location.
  • Page 16 All relevant data of the leakage are shown in the image and a final check can be done again before saving. All leakages, including entries made, are saved to the journal file. Exporting journal data Once all leakages have been documented, the data must then be exported to a USB stick.

  • Page 17: Software Licensing

    7. Using the CS Leak Reporter software Main functions: • Administration of companies/buildings/projects/measurements • Documentation and reporting • Dashboard: Installing the CS Leak Reporter software The software is executed with the «Setup.exe» application. The file is located on the supplied USB stick or can be downloaded from the homepage at the following URL: https://www.cs-instru- ments.com/downloads/software/computer-evaluation-software...
  • Page 18 Path: Dashboard → Data import → Select XML The name of the folder corresponds to the serial number of the LD500 in use. After selecting the relevant journal file, the following view will be displayed: When you click on «Data import», the displayed compa- nies will be created.
  • Page 19 Leakage overview This list now contains all imported leakages from the data import. The relevant parameters of each individual leakage are displayed and can be sorted by header (e.g. Leak tag). It is also possible to «copy» or «move» leakages to other projects or «delete»...
  • Page 20 The following pages list the individual leakages: Modifying company master data (customer) Path: Dashboard → Companies→ Master data In this screen the contact details of the customer, which will be printed in the report, can be entered. Modifying project master data Path: Dashboard →...
