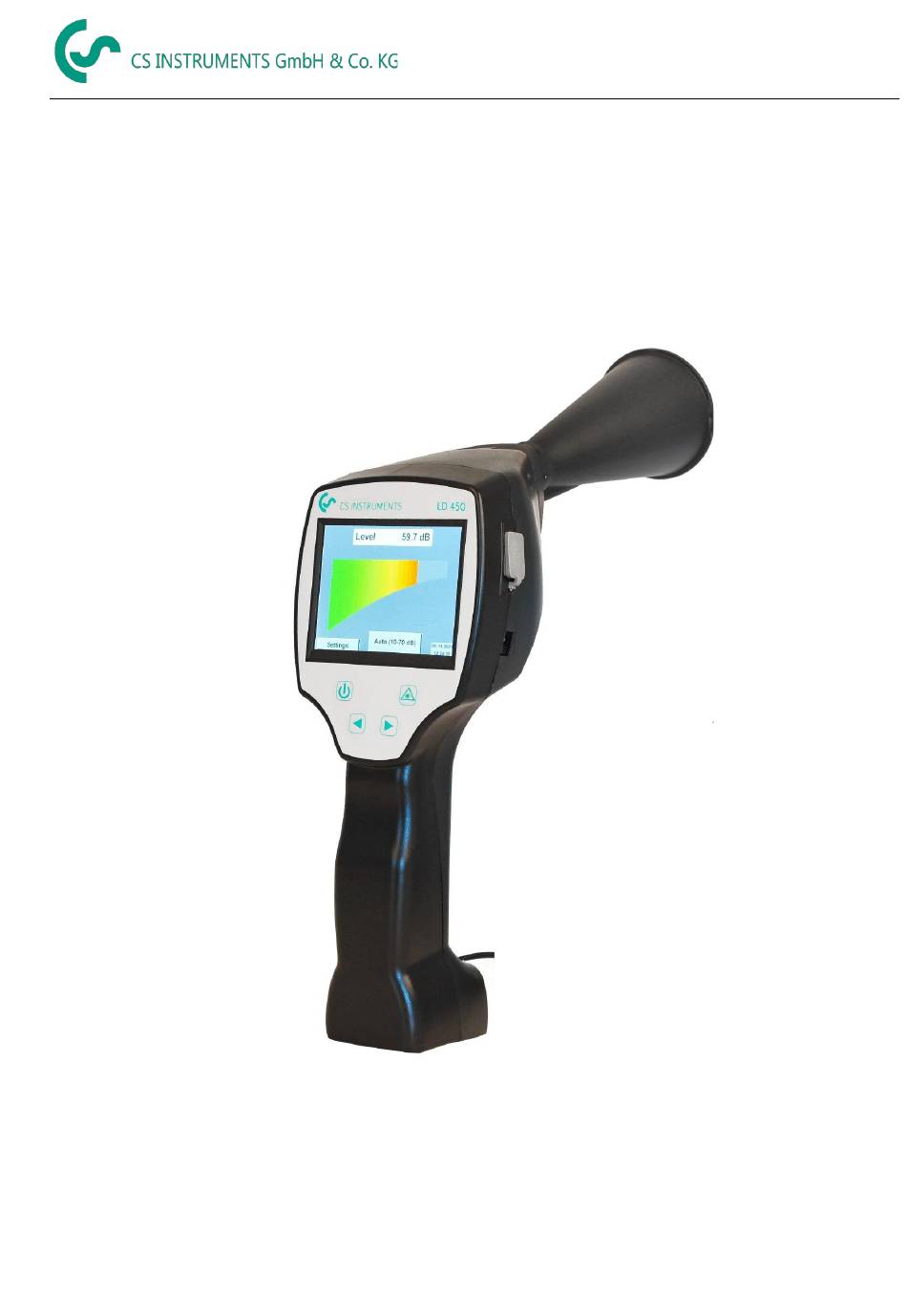

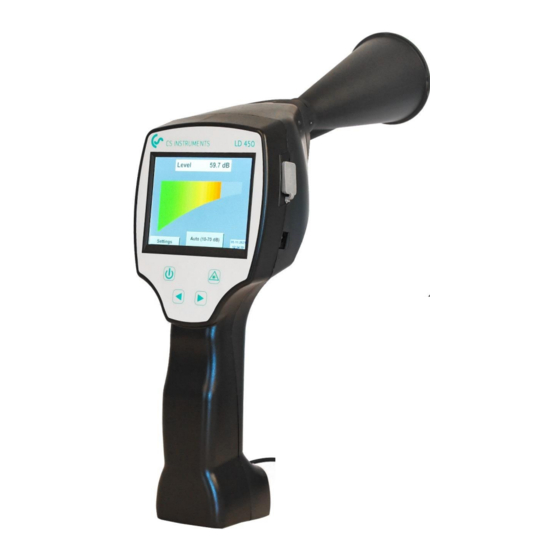

- Page 1 EN- English Instruction manual Leak detector LD 450 LD 450 V1.00 Seite 1 von 23...
-
Page 2: Table Of Contents
............................6 ABEL POSITIONS DEVICE COMPONENTS AND CONTROLS....................7 LD 450 ..............................7 OVERVIEW AND APPLICATION DESCRIPTION OF THE DIFFERENT SENSOR TYPES ........8 START-UP / / APPLICATION LD 450 ......................9 10.1 .............................. 9 WITCH ON 10.2 ....................9... -
Page 3: Safety Instructions
• Do not stare into the beam • Laser module: corresponds to DIN EN 60825-1: 2014 Class 2 (<1mW / 635nm) • Laser output point trumpet and parabolic mirror: Laseraustrittstelle Laser output point LD 450 V1.00 Seite 3 von 23... -
Page 4: Service And Maintenance
The accumulator and the appliance can now be disposed of separately 5 Intended use The LD 450 is a leak detector for quick and reliable leak detection in/on compressed air systems. It is solely designed and constructed for the intended use described here and may only be used for this purpose. -
Page 5: Technical Data Ld 450
Technical data 6 Technical data LD 450 Dimensions hand-held 263 x 96 x 280 mm (with preamp module and acoustic housing trumpet) 0.55 kg with preamp module and acoustic trumpet, Weight complete set in case approx. 3.0 kg Operating frequency... -
Page 6: Identification
Acccording IEC 60825-1:2014 Max. output power: <1mW @ 630-660nm Complies with 21 CFR 1040.10 and 1040.11except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice No. 56, dated May 8,2019 LD 450 LD 450 V1.00 Seite 6 von 23... -
Page 7: Device Components And Controls
Device controls 8 Device components and controls The LD 450 Acoustic trumpet 3.5" TFT colour display with touch panel USB connection Plug-in connection for Foil keypad (4 buttons) power supply (battery charger socket) Save button On/Off button Volume (+/-) 3.5mm jack for the headphone LD 450 V1.00... -
Page 8: Overview And Application Description Of The Different Sensor Types
Short distance to pipe/component 0.05 m • Average distance to pipe/component 0.2 - 6 m • Pipe/component freely accessible • Low interfering noise • Pipes and components to be inspected are very • Leakage freely accessible close together LD 450 V1.00 Seite 8 von 23... -
Page 9: Start-Up / / Application Ld 450
Ultrasound levels can be understood as a "loudness" of the leakage. With the “Sensitivity" button, the sensitivity of the LD 450 can be adjusted to the environment, which strongly influences the acoustic behaviour of the device and increases or decreases the valid value range. -
Page 10: Laser On/Off
The selection of the respective menu items occur via short "tapping" with the finger or a soft round pen. Attention: Please use no pens or other objects with sharp edges! The foil can be damaged! 11.1 Initialization After switching on the LD 450, the initialization takes place and then switch to leakage display LD 450 V1.00... -
Page 11: Screen Leckage
Bar graph of Signal level Laser „On“ Icon Date/ Time and battery Settings menu condition indicator Sensivity level button Date / Time: Battery condtion indicator Battery condition: Power supply connected and battery is charging: LD 450 V1.00 Seite 11 von 23... -
Page 12: Settings Menu Ld 450
Operation 11.3 ^Settings menu LD 450 The operation is largely self-explanatory and menu-driven via the touch panel. The selection of the respective menu items occur via short "tapping" with the finger or a soft round pen. Attention: Please use no pens or other objects with sharp edges! The foil can be damaged! Before the leakage search is started, the device must be configured. -
Page 13: Language
By pushing the Time Zone description field and enter the correct UTC, you can set the correct time all over the world. The summer and wintertime switchover is realized by pushing the Daylight Saving button. LD 450 V1.00 Seite 13 von 23... -
Page 14: System Settings
11.3.3 System settings 11.3.3.1 System update If required, there is the possibility for the LD 450 to download a firmware update to the device via the USB stick. The latest software is available on the CS Instruments GmbH homepage The received file must then be stored on the USB stick and transferred to your device as described below. -
Page 15: Calibration Of Touchpanel
„Yes“. If needed with „Reboot System“ the LD 450 could be started(reboot) here. 11.3.4 Calibration of touchpanel Home ➔Settings ➔ Device settings ➔ calibrate touchscreen If necessary, the touch-screen calibration can be changed here. -
Page 16: Set Backlight Brightness
39%, after that a "normal" function operation is possible. Important: If the Backlight dimming after button is not activated, then the Backlight stays permanently on, in the currently set brightness. LD 450 V1.00 Seite 16 von 23... -
Page 17: Cleaning
Is the cleaning faster finished, then you can push the to abort press long button (for one or two seconds) to cancel. 11.3.7 About LD 450 Settings ➔ About LD 450 Brief description of the Hardware Software Version, as well as the Serial Number of the LD 450. -
Page 18: Charging The Batteries
Connect external power charging. supply to the charging socket. The LD 450 checks the charging status of the battery and starts the charging process automatically if necessary. To protect the Li-ION accumulator of exhaustive discharge the device is switching off automatically if a cell voltage of 6,4V will be reached. -
Page 19: Scope Of Delivery
Scope of delivery 13 Scope of delivery LD 450 is available either as a single unit or in a set. The set contains all the components and accessories that are protected in a rugged and shock-resistant transport case. Transport case... -
Page 20: Appendix
14 Appendix In the appendix on the following pages you will find the Declaration of Conformity for the electromagnetic compatibility and the Test Report of the Li-ion batteries used. 14.1 Report UN 38.1 LD 450 V1.00 Seite 20 von 23... -
Page 21: Report Iec62133-2
Appendix 14.2 Report IEC62133-2 LD 450 V1.00 Seite 21 von 23... -
Page 22: Ce Conformity
CE Conformity 14.3 CE Conformity KONFORMITÄTSERKLÄRUNG DECLARATION OF CONFORMITY CS Instruments GmbH & Co.KG Gewerbehof 14, 24955 Harrislee Erklären in alleiniger Verantwortung, dass das Produkt Declare under our sole responsibility that the product Leckage-Suchgerät LD 450 Leak meter LD 450... - Page 23 Fax: +49 (0) 461 80 71 50 - 15 info@cs-instruments.com www.cs-instruments.de SALES OFFICE SOUTH Zindelsteiner Straße 15 D-78052 VS-Tannheim DEUTSCHLAND Tel.: +49 (0) 7705 978 99-0 Fax: +49 (0) 7705 978 99-20 info@cs-instruments.com www.cs-instruments.de LD 450 V1.00 Seite 23 von 23...
