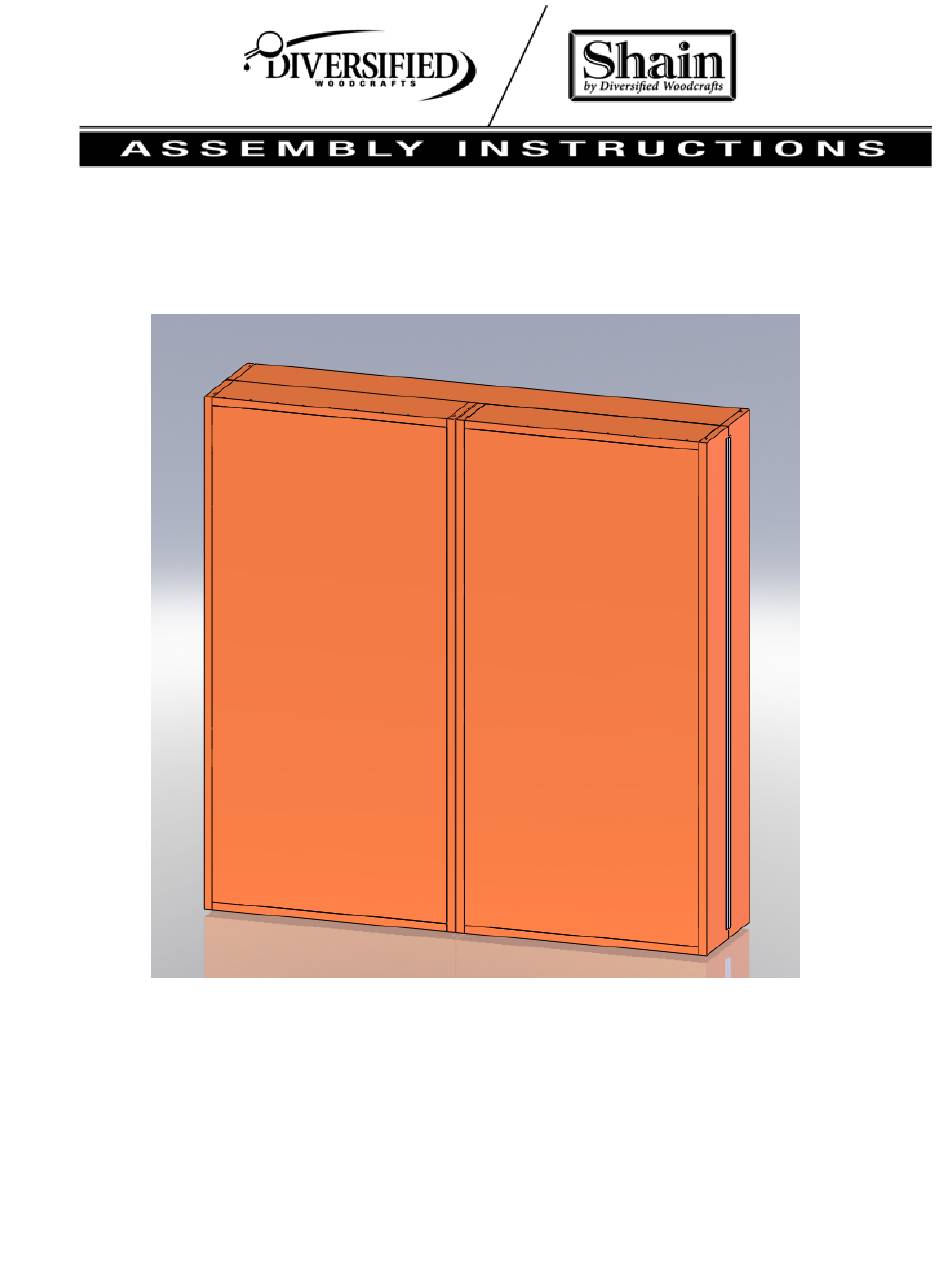

- Page 1 MC-1 WALL CABINET ASSEMBLY INSTRUCTIONS...
- Page 2 TABLE OF CONTENTS REVISIONS TABLE ………………………………………………………………………………………………………………….…………………..……….…………..……….…………………………………...………..… ASSEMBLY COMPONENTS ……………………………………………………………………………………….…………………..……….……….……………...………………………………………… WALL MOUNTING____________________________________________________4...
- Page 3 ASSEMBLY COMPONENTS ITEMS INCLUDED PART # PART # ASSEMBLY INSTRUCTIONS 1-HARDWARE BOX DESCRIPTION DATE INITIAL Original Created 5-21-09...
- Page 4 Install Instructions for Wall Cabinets Items not included but needed for assembly: 1. Screws, depending on material cabinets hang from. 2. Drill Instructions: 1. Put 1 screw in each corner. (make sure cabinet is hung level). 4 SCREWS Note: picture shown without back installed...
- Page 5 2. Additional screw for top and bottom in middle if cabinet is over 36” wide. Additional screws 3. Screw through the fastening cleat located on top and bottom of the unit; the fastening cleat is down 3” from the inside of the top and up 3” from inside of the bottom.
