Operator's manual for Attachment
Operator's
Operator's
Operator's
S
n
S
S
n
S
Product number:
Please read this manual carefully before using the equipment, and follow all
instructions.
Keep this manual for later reference.
Avant Tecno Oy 2013 Copyright all rights reserved
manual for Attachment
manual for Attachment
manual for Attachment
o
w
B
l
o
w
e
n
o
w
B
l
o
w
e
o
w
B
l
o
w
e
n
o
w
B
l
o
w
e
for 200-series loaders:
For 300-700-series loaders:
r
1
1
0
0
r
1
1
0
0
r
1
4
0
0
r
1
4
0
0
A35940
A35870
A35847

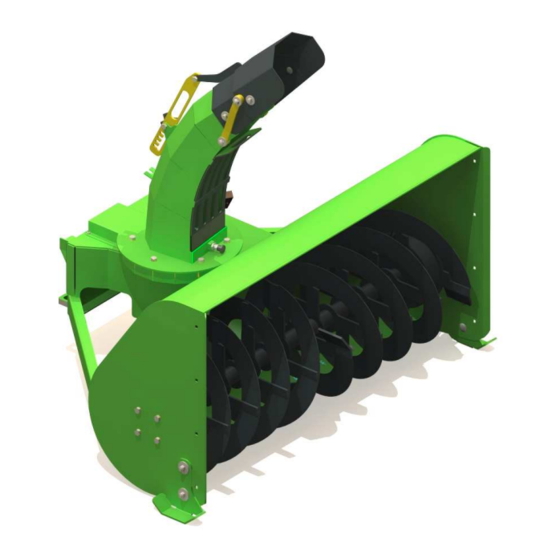

Snow Blower 2013 1
Advertisement
Table of Contents
Related Manuals for AVANT Snow Blower 1100
Summary of Contents for AVANT Snow Blower 1100
- Page 1 Attachment Product number: for 200-series loaders: A35940 For 300-700-series loaders: A35870 A35847 Please read this manual carefully before using the equipment, and follow all instructions. Keep this manual for later reference. Avant Tecno Oy 2013 Copyright all rights reserved...
- Page 2 Snow Blower 2013 1 Avant Tecno Oy 2013 Copyright all rights reserved...
-
Page 3: Table Of Contents
6.2.3. Removing a blockage......................Maintenance and servicing....................17 7.1. Checking hydraulic components ....................7.2. Cleaning the snow blower......................7.3. Feed auger and thrower fan ......................7.4. Discharge chute rotation......................Warranty terms........................19 Appendix: EC Declaration of Conformity Avant Tecno Oy 2013 Copyright all rights reserved... -
Page 4: Foreword
4(12) 1. Foreword Avant Tecno Oy would like to thank you for your purchase of this AVANT attachment. It has been designed and manufactured on the basis of years of experience and product development. By familiarising yourself with this manual and following the instructions, you ascertain your safety and ensure the reliable operation and long service life of the equipment. -
Page 5: Designed Purpose Of Use
Avant spare parts. Familiarise yourself with the manual's instructions regarding service and maintenance. Please contact your AVANT retailer if you have additional questions about the operation or maintenance of the equipment, or if you require spare parts or maintenance services. - Page 6 6(12) Misuse, careless use, or using an attachment that is in bad condition, may cause serious injuries. Familiarise yourself with the controls of the loader and coupling and safe operation of the attachment at a safe area. Become familiar especially with how to stop the equipment in a safe manner.
- Page 7 7(12) Note that the blower may throw sand or other objects found in the operating area up to 30 metres away at high speed. Always keep a safety distance of at least two metres between the snow blower and other persons. Do not allow others at the danger areas of the blower and stop the snow blower immediately, if there are others in the direction of snow throwing.
-
Page 8: Technical Specifications
A34845 40 l/min, 70 l/min, Maximum input of hydraulic energy: 22,5 MPa 22,5 MPa See Table 1 Suitable AVANT loader: 200-series 400-600 600-700 Dimensions: Page 2 4.1. Safety labels and main components of the Snow Blower Listed below are the labels and markings, which must be visible on the equipment. Replace the warning labels, if they have become unclear or if they have detached completely. - Page 9 9(12) Table 3 – Decal warning messages and locations Decal Explanation A46771 Read instructions before use. A46772 Do not go under a raised attachment or loader boom; stay away from raised equipment. A46804 Entanglement hazard, keep clear of rotating parts. Stop the attachment before leaving the driver’s seat.
-
Page 10: Assembly Of The Snow Blower
10(12) 5. Assembly of the snow blower The attachment is ready for use as delivered. Attach the attachment and its hydraulic hoses to the loader as instructed below. 5.1. Attaching the snow blower to the loader Mounting the attachment to the loader is quick and easy, but it must be done carefully. An attachment that has not been locked may come off from the loader and cause hazardous situations. -
Page 11: Connecting And Disconnecting Hydraulic Fittings
On 400-700 series loaders hydraulic hoses are connected using the multiconnector system. If you want to change the type of the hydraulic couplings, contact your Avant dealer or service point for instructions or installation services. On 200-series loaders only conventional quick couplings are available. - Page 12 12(12) Conventional quick couplings (alternative couplings for some loader models): Before connecting or disconnecting the standard quick couplings, the residual pressure must be released as shown below. The conventional quick couplings will not connect, if there is pressure in the hydraulic system. To connect and disconnect the standard couplings, move the collar at the end of the female fitting.
-
Page 13: Electrical Connection
13(12) 5.3. Electrical connection The electric discharge chute rotation can be controlled with the electric harness provided with the snow blower. If the blower is also equipped with electric throwing height adjustment, the attachment control switch pack is also necessary (400-700 series loaders). Discharge chute rotation A cable harness with a 2-way switch is delivered ■... -
Page 14: Instructions For Use
14(12) 6. Instructions for use Check the attachment and the operating area once more before starting work. Quick inspection of the equipment before starting to use it is part of ensuring safety and the best performance of the equipment. Practise the use of the blower at an open and safe area. If you are unfamiliar with the loader model in use, it is recommended to practice its use without any attachments. -
Page 15: Operating The Snow Blower
15(12) Check that the discharge chute guard is locked in its place before operating the snow blower. Using the blower without the guard in its place is prohibited. Ensure that the chute is directed towards safe direction before starting the blower. Operate the manual throwing height adjustment only when the blower is stopped. -
Page 16: Discharge Chute Rotation
16(12) 6.2.1. Discharge chute rotation The electric discharge chute can be used when the ignition key of the loader is turned to switch on the electric outlet of the loader. The chute will rotate 260° ; turning dir ectly towards the loader is blocked. Make sure that the chute is directed to safe direction at all times. -
Page 17: Removing A Blockage
17(12) 6.2.3. Removing a blockage Clogging of the feed auger is in most cases caused by drive speed. If the auger can’t throw the snow fast enough, drive speed must be reduced. Clogging of the discharge chute is affected by the type of snow in addition to engine rpm. -
Page 18: Checking Hydraulic Components
Finding any of these faults means that the hydraulic hose or component must be replaced. Spare parts are available from your nearest AVANT retailer or service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and experience about hydraulic assemblies and how to perform the repairing safely. -
Page 19: Feed Auger And Thrower Fan
8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: •... - Page 20 Snöfräs 1100 1100 1400 Snow blower A35940 A35870 A35940 A35847 Schneefräse Allekirjoitus / Namnteckning / Signature / Unterschrift: ____________________16.10.2013 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Managing Director / Geschäftsführer Avant Tecno Oy 2013 Copyright all rights reserved...
- Page 21 Avant Tecno Oy 2013 Copyright all rights reserved...
