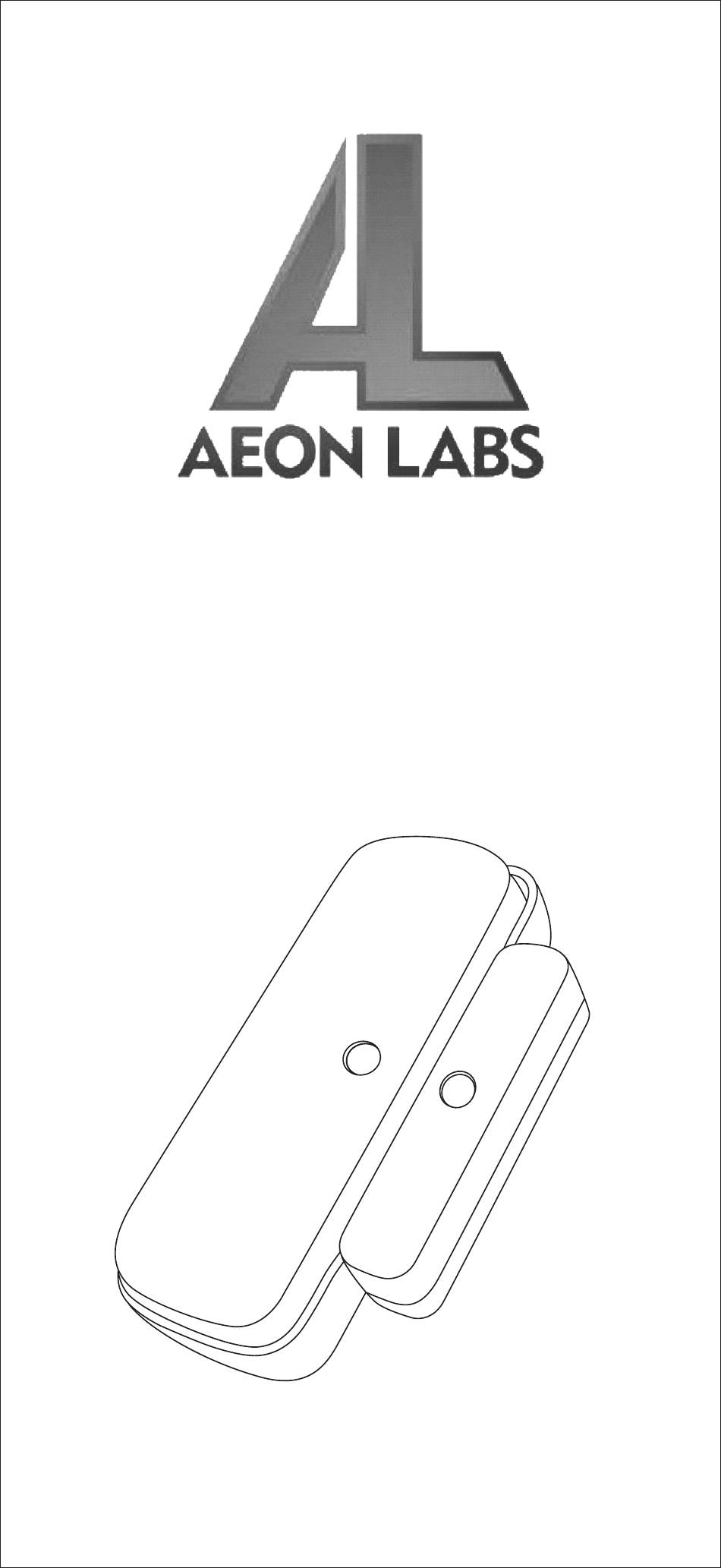

- Page 1 Aeon Labs Door/Window Sensor (Z-Wave Magnetic Door/Window Contact Sensor)
-
Page 2: What's Included

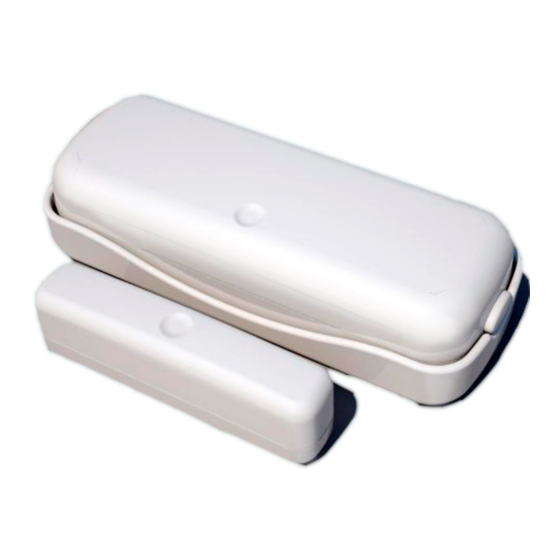

The Aeon Labs D/W Sensor is a battery-powered Z-Wave magnetic door/window contact sensor. The D/W sensor will send radio signals to up to 6 associated Z-Wave devices within its own Z-Wave network when the main unit separates from the smaller magnetic unit. - Page 3 Anatomy of the Aeon Labs Door/Window Sensor: Latch Button Orientation Dimples Magnet Unit Outer Shell Magnet Unit Screw Holes Hitch Hole Security Tamper Hitch Switch Hole Double-Sided Mounting Tape Sticking Area Battery Holder Security Tamper Switch (Z-Wave Inclusion Button)
- Page 4 Aeon Labs Door/Window Sensor User Instructions: 1. Mounting the Aeon Labs D/W Sensor to a Wall, Door, or Window Frame 1.1 The main sensor unit and magnet unit should be placed in a manner such that when the door/window is closed, they are within 2cm.
- Page 5 1.2 Screw the bidirectional mounting plate and the magnet unit into the wall, door or window frame. Use the provided screw anchors if attaching the Aeon Labs D/W Sensor to a soft material (such as drywall). AND/OR Peel and attach the double-sided mounting tape to the back of the bidirectional mounting plate and magnet unit to adhere to the wall, door or window frame.
- Page 6 1.3 Hook the sensor into the bidirectional mounting plate by first inserting the hitch of the bidirectional mounting plate into the hitch hole of the sensor. Then press the other end of the sensor into the bidirectional mounting plate until the units firmly click together.
- Page 7 2. Including the Aeon D/W Sensor into the Z-Wave Network The Aeon Labs D/W Sensor must first be included into an existing Z-Wave network in order to function. After being included to a Z-Wave network, the Aeon Labs D/W Sensor will then be able to report it’s open/close state to gateway...
- Page 8 Aeon Labs D/Window Sensor to include it into your Z-Wave network. 2.3 The Aeon Labs D/W Sensor will now stay awake for 10 minutes to receive any other network instructions from your gateway or controller – The LED on the Aeon D/W Sensor will be blinking while awake.
- Page 9 3. Wake the Aeon Labs D/W Sensor for 10 Minutes The Aeon Labs D/W Sensor can be made to stay awake for 10 minutes by any of the following methods below. Once the Aeon Labs D/W Sensor has been woken, the LED will blink every few seconds indicating that it is now awake and ready to receive Z-Wave network information and instructions.
- Page 10 4. Put the Aeon Labs D/W Sensor to Sleep After Being Included into a Z-Wave Network The Aeon Labs D/W Sensor may be put to sleep by any of the following methods below. Once the Aeon Labs D/W Sensor has been put to sleep, the LED will no longer blink indicating that it is now asleep and saving battery life.
- Page 11 5. Associating Z-Wave Lights/Switches/ Gateways to the Aeon Labs D/W Sensor By associating the Aeon Labs D/W Sensor to Z-Wave devices, it will be able to report it’s state to gateways, execute scenes through the associated gateways and turn on/off associated Z-Wave devices when it is triggered with its magnetic switch.
- Page 12 5.3 Press the security tamper switch located at the back of the Aeon Labs D/W Sensor to complete the association process. Note: The Aeon Labs D/W Sensor can be associated to 6 devices total (1 device being a SUC/SIS gateway).
- Page 13 6. Reporting an Alarm when Tampered The Aeon Labs D/W Sensor has a built in security tamper switch which will automatically alert (Z-Wave Alarm Command Class) the associated gateway when the sensor is removed from either the bidirectional mounting plate or pried off the surface to which it was mounted.
- Page 14 Z-Wave network, pressing the security switch will illuminate the LED on the front of the Aeon Labs D/W Sensor solid red for 5 seconds. If the Aeon Labs D/W Sensor was not successfully removed from the Z-Wave network, the LED will...
-
Page 15: Replacing Batteries
8. Replacing Batteries The Aeon Labs D/W Sensor has built in battery level detection. It will automatically report it’s battery level (Z-Wave Battery Command Class) to the associated gateway throughout it’s life until the battery is fully drained and needs replacing. The battery status will often be displayed in the user interface of the gateway. -
Page 16: Technical Specifications
Recommendation: For networks which do not have a method to display the battery level of the Aeon Labs D/W Sensor, it is recommended that the sensor be tested occasionally to ensure that the battery still hold enough charge to operate. Batteries naturally lose their charge over time. -
Page 17: Warranty
Products or its components. Aeon Labs does not authorize any person or party to assume or create for it any other obligation or liability in connection with the Products except as set forth herein. - Page 18 Aeon Labs ‘manufacturing processes. IN NO EVENT SHALL AEON LABS BE LIABLE FOR ANY...
- Page 19 Federal Communications Commission (FCC) Statement – USA Products This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 20 Warning: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. Harmonizing the Smart Home. www.aeon-labs.com...
