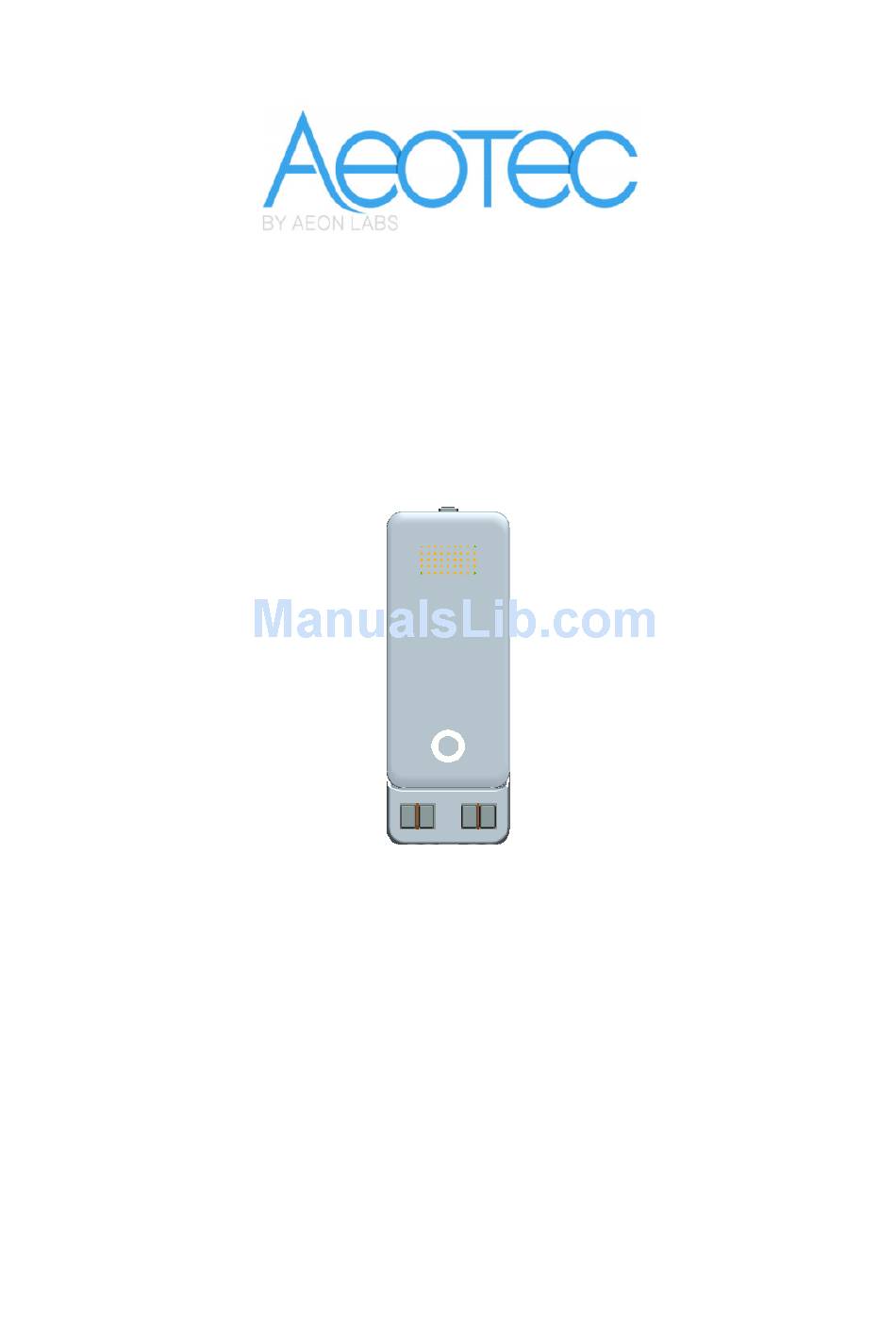

- Page 1 Aeon Labs Water Sensor 6 (Z-Wave Water Sensor) Page 1...
- Page 2 Change history Revision Date Change Description 01/05/2017 Initial draft. 03/28/2017 Update 04/07/2017 Update 04/27/2017 Update Page 2...
- Page 3 Aeon Labs Water Sensor 6 Engineering Specifications and Advanced Functions for Developers Aeon Labs Water Sensor 6 is a binary sensor device based on Z-Wave enhanced 232 slave library of V6.51.09. The Water Sensor 6 contains 2 Sensor ports, which allow you to connect 2 water probes on the Main Sensor unit to detect the presence and absence of water or detect whether there is the water leak in some places of your home.
-
Page 4: Technical Specifications
Security COMMAND_CLASS_ASSOCIATION_GRP_INFO_V1 COMMAND_CLASS_ASSOCIATION_V2 Supported COMMAND_CLASS_POWERLEVEL_V1 Command COMMAND_CLASS_NOTIFICATION_V7 Class List COMMAND_CLASS_BATTERY_V1 COMMAND_CLASS_SENSOR_MULTILEVEL_V5 COMMAND_CLASS_CONFIGURATION_V1 COMMAND_CLASS_MULTI_CHANNEL_V4 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATI ON_V3 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 2. Technical Specifications Operating distance: Up to 492feet/150 meters outdoors. Familiarize yourself with your Water Sensor 3.1 Interface 4. All Functions of Each Trigger 4.1 Function of Action Button Trigger Description... - Page 5 1. Power on Water Sensor. The Water Sensor’s LED will blink slowly when you short press the Action Button. 2. Let the primary controller into inclusion mode (If you don’t know how to do this, refer to its manual). 3. Press the Action Button. 4.
- Page 6 0x0C07 (ICON_TYPE_SPECIFIC_SENSOR_NOTIFICATION_HOME_SECURITY) User Icon Type 0x0C07 (ICON_TYPE_SPECIFIC_SENSOR_NOTIFICATION_HOME_SECURITY) 5.3 Manufacturer Specific Report Parameter Value Manufacturer ID 1 AEON LABS=0x00 Manufacturer ID 2 AEON LABS=0x86 Product Type ID 1 EU=0x00, US=0x01, AU=0x02 CN=0x1D (29) Product Type ID 2 0x02 Product ID 1...
- Page 7 water leak. Send Device Reset Locally when it is reset. Group 2 [1,5] Single Cast Send configuration 0x88 report: Group 3 [1,5] Single Cast Send Basic Set (configured by parameter 0x58) to the associated nodes in Group 3 when the Sensor probe 1 is triggered. Group 4 [1,5] Single Cast...
- Page 8 Under heat detected, Unknown Location 0x06 Water Alarm 0x05 Previous Events cleared 0x00 Water Leak detected, Unknown Location 0x02 Home Security 0x07 Previous Events cleared 0x00 Tampering Product covering removed 0x03 5.7 Multichannel Command Class It supports 2 Multi Channel Endpoints. 1.
- Page 9 Configuration Value n(LSB) Parameter Number Definitions (8 bit): Parameter Description Default Value Size Number Hex/ Decimal 0x02 (2) Enable/disable wake up for 10 minutes state when re-power on the Sensor 0 = Disable, 1 = Enable. 0x08 (8) Set the timeout to go into the sleep state after the Wake Up Notification was sent out.
- Page 10 When the current measurement >= (Lower limit + Recover limit), the lower limit report is enabled and then it would send out a sensor report when the next measurement is less than the lower limit. After that the lower limit report would be disabled again until the measurement >= (Lower limit + Recover limit).
- Page 11 1 = report the CR123A battery level. 0x65 (101) To set what unsolicited report would be sent to the Lifeline group. 0 = Send Nothing. 1 = Battery Report. 2 = Multilevel sensor report for temperature. 3 = Battery Report and Multilevel sensor report for temperature. 0x6F (111) 3600 Set the interval time for sending the unsolicited report that configured...
- Page 12 Reset to factory default setting and removed from the z-wave network Reset to factory default setting Parameter number equals 0x30: Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Noti fication Notification Notification Notification Configuration Report for...
