Summary of Contents for evoheat Solace Domestic
-
Page 2: Table Of Contents
EvoHeat Solace Domestic Dehumidifier Manual Contents 1. Introduction _________________________________________________________________________________ 2 2. Unit Specifications ____________________________________________________________________________ 3 2.1 Working Principle __________________________________________________________________________ 3 2.2 Hygrostat Control __________________________________________________________________________ 3 2.3 Dimensions _______________________________________________________________________________ 3 2.4 Technical Data ____________________________________________________________________________ 4 2.5 Performance Curve ________________________________________________________________________ 4 3. Safety Instructions ____________________________________________________________________________ 5 4. -
Page 3: Introduction

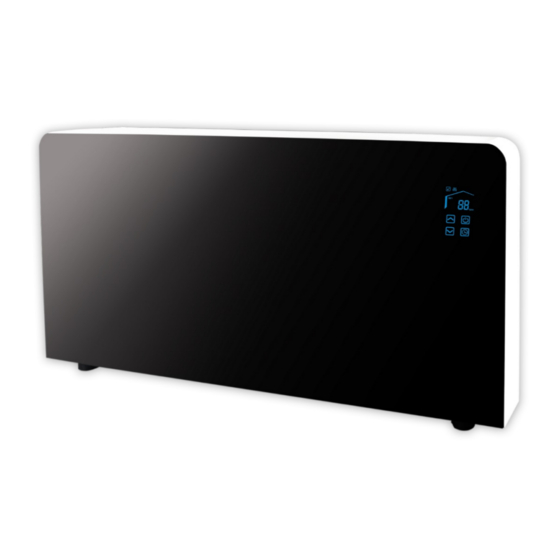

This manual and all others are available for download on our website. The Solace Domestic series dehumidifier is designed to remove the moisture from the air in the room without losing the warmth contained within. The warm moist air is drawn through the base of the unit and passes over a cold coil to remove the moisture and chemicals. -
Page 4: Unit Specifications
EvoHeat Solace Domestic Dehumidifier Manual 2. Unit Specifications 2.1 Working Principle The Solace Dehumidifier works my drawing moist air over a refrigerated coil with a small fan. The cold coil of the refrigeration device condenses the water, which is removed. Then the air is reheated by the hot coil. This process works most effectively with higher ambient temperatures with a high dew point temperature. -
Page 5: Technical Data
EvoHeat Solace Domestic Dehumidifier Manual 2.4 Technical Data Model Unit Solace 4.3 Rated Capacity Dehumidification Capacity per day Max Pool Area Noise Level dB(A) Rated Voltage/Freq 220-230V Rated Power Input 1.97 Rated Running Current Max. Power Input 2.28 Max. Running Current... -
Page 6: Safety Instructions
EvoHeat Solace Domestic Dehumidifier Manual 3. Safety Instructions • Installation, repair or relocations must be done by a fully qualified person and not by the customer. If done incorrectly it may cause fire, electric shock, water leakage and other hazards. -
Page 7: Installation
EvoHeat Solace Domestic Dehumidifier Manual 4. Installation 4.1 Location Avoid installing the unit in close proximity to: • Positions subject to exposure to direct sunlight • Sources of heat • Oil Fumes • Areas subject to high frequencies Ensure that: •... -
Page 8: Drainage
EvoHeat Solace Domestic Dehumidifier Manual 4.3 Drainage Select a suitable size hose to connect to the built-in hose if it is needed. NOTE: If the condensation water discharges directly into a container, the condensate outlet should be located above the container to avoid it immersing in the container. -
Page 9: Operation
EvoHeat Solace Domestic Dehumidifier Manual 5. Operation 5.1 Main Controller Interface • Press this button to start up or shut down the unit. ON/OFF Hold this button for 5 seconds to lock or unlock the keyboard. • Press this button to check the relative humidity target value •... -
Page 10: Set Relative Humidity
EvoHeat Solace Domestic Dehumidifier Manual 5.2.2 Set Relative Humidity To check the relative humidity, press the UP or DOWN arrow keys. Once the relative humidity is displayed, you can press the UP or DOWN arrows again to adjust it as desired. If no operation is performed within 5 seconds, the screen will return to the home screen and save any changes made automatically. -
Page 11: Troubleshooting
EvoHeat Solace Domestic Dehumidifier Manual 6. Troubleshooting Press the “UP’ or “DOWN” key to check if there are any more failure codes. The solutions to the problems can be found with their corresponding code. Malfunction Code Reason Solution High pressure protection has... -
Page 12: Appendix
EvoHeat Solace Domestic Dehumidifier Manual 7. Appendix 7.1 PCB I/O Port Ports Meaning To operation panel Reserved NET1 NET2 To fan motor (DC) TEMP1 To evaporator inlet/outlet temp. sensor TEMP2 To condenser outlet temp. sensor HUMI01 To the build-in RHS (Refer to 7.2) -
Page 13: Maintenance
EvoHeat Solace Domestic Dehumidifier Manual 8. Maintenance To ensure that the unit stays reliable and works to the best of its ability, it is suggested that the unit is maintained and cleaned every six months. Please adhere to the following steps to clean the strainer regularly. -
Page 14: Warranty
9.1 Warranty Registration EvoHeat highly recommend customers to complete their warranty details online to ensure efficient warranty claim processing. To register your warranty, scan our QR Code or head to our website and fill in the Warranty Registration Form: https://evoheat.com.au/warranty-registration/...
