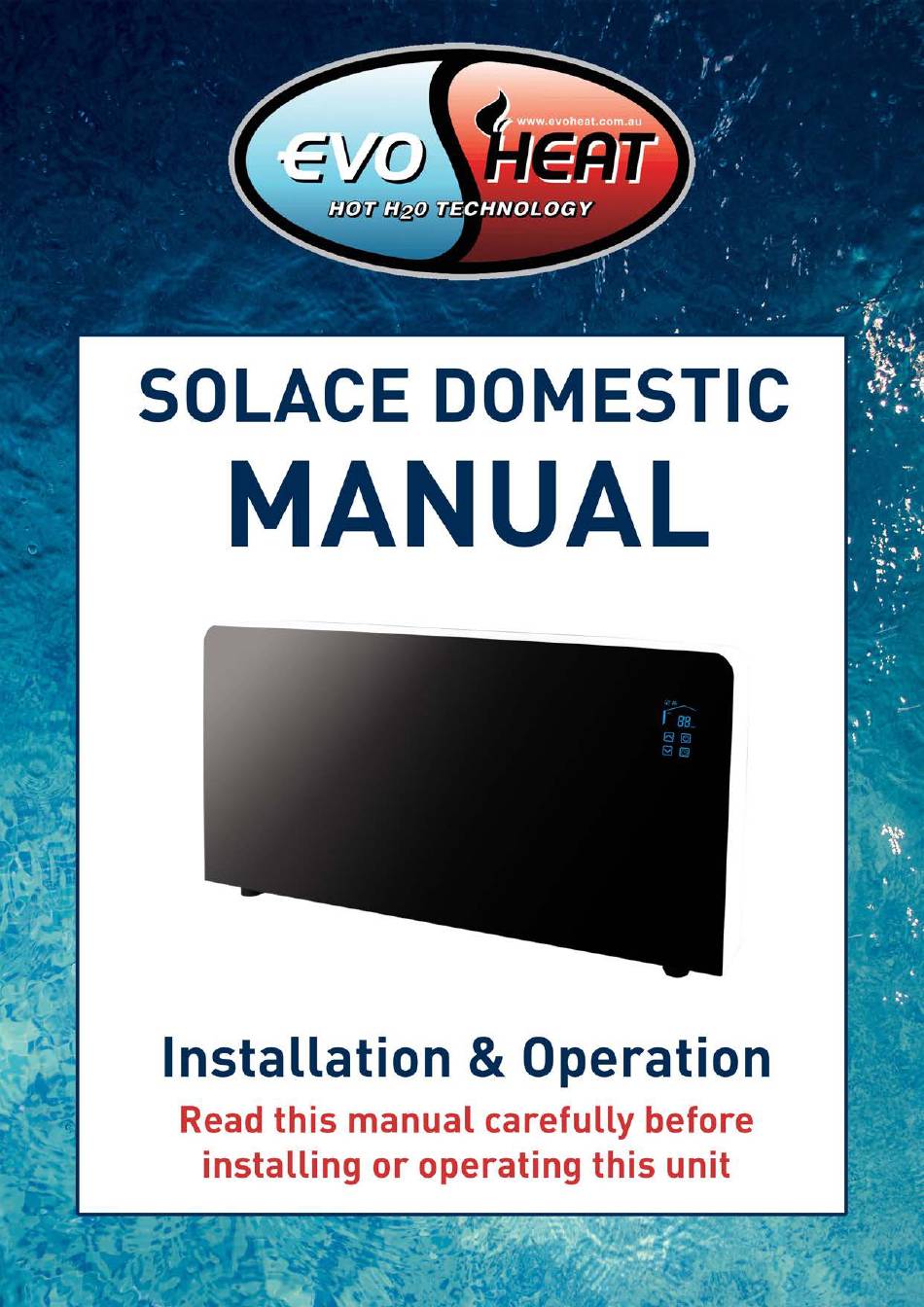

- Page 1 P a g e...
-
Page 2: Table Of Contents
P a g e Contents Preface ..............................3 Safety Precautions ..........................4 Marks ............................. 4 Icons............................... 4 Warnings ............................4 Attention ............................5 Specifications ............................6 Parameters ............................. 6 Performance Curve ......................... 7 Dimensions............................. 8 Working Principle ........................... 8 Product Features ..........................9 Hygrostat Control ........................... -
Page 3: Preface
These instructions should be kept carefully and must always accompany the appliance. If it becomes lost or damaged, please contact EvoHeat or go to our website for a full list of online-version manuals. Failure to comply with these recommendations will invalidate the warranty. -
Page 4: Safety Precautions
P a g e 2 Safety Precautions 2.1 Marks 2.2 Icons 2.3 Warnings... -
Page 5: Attention
P a g e 2.4 Attention WARNING Remember that some fundamental safety rules should be followed when using this product: 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities and lack of experience or knowledge; unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. -
Page 6: Specifications
P a g e 3 Specifications 3.1 Parameters Solace Domestic Dehumidifier Model Unit Solace 2.2 Solace 3.0 Solace 4.3 Rated Capacity Dehumidification Capacity per Max Pool Area Noise Level dB(A) Rated Voltage/Freq 220-240V~/50Hz Rated Power Input 0.93 1.13 1.97 Rated Running Current Max. -
Page 7: Performance Curve
P a g e 3.2 Performance Curve... -
Page 8: Dimensions
P a g e 3.3 Dimensions 3.4 Working Principle The Solace Dehumidifier works my drawing moist air over a refrigerated coil with a small fan. The cold coil of the refrigeration device condenses the water, which is removed. Then the air is reheated by the hot coil. This process works most effectively with higher ambient temperatures with a high dew point temperature. -
Page 9: Product Features
P a g e 3.5 Product Features Ultra-Low Noise Advanced air ducting technology and the super quiet cross-flow fan allows the unit to operate with ultra-low noise. Ultra-Thin Casing With the ultra-thin casing of 200mm, the ultra-compact design allows for you to save more space when compared with common dehumidifiers with a thickness of 400mm. -
Page 10: Installation
Failure to respect the rules indicated can not only cause malfunctions to the unit but will also invalidate the warranty; in which case EvoHeat will not be responsible for any damage to persons or property. -
Page 11: Drainage
| 11 P a g e Wall Mounted Installation Insert 5 expansion bolts into holes with are bored by 10 drill and fix the wall suspension bar horizontally. 4.4 Drainage Select a suitable size hose to connect to the built-in hose if it is needed. -
Page 12: Usage
| 12 P a g e 5 Usage 5.1 Operation Panel Functions... -
Page 13: Operation Instructions
| 13 P a g e 5.2 Operation Instructions 5.2.1 Power On/Off 5.2.2 Set Relative Humidity... -
Page 14: Dehumidifying Mode
| 14 P a g e 5.2.3 Dehumidifying Mode 5.2.4 Defrosting Mode 5.2.5 Problem Display... -
Page 15: Maintenance
| 15 P a g e 6 Maintenance To guarantee that the unit stays reliable and works to the best of its ability, for the longest time possible it is suggested that the unit is maintained and cleaned every six months. Please adhere to the following steps to clean the strainer regularly. -
Page 16: Troubleshooting
| 16 P a g e 6.1 Troubleshooting Press the “UP’ or “DOWN” key to check if there are any more failure codes. The solutions to the problems can be found with their corresponding code. Malfunction Code Reason Solution High pressure protection has High pressure protection is too appeared 3 times in 30 mins frequent... -
Page 17: Appendix
| 17 P a g e 7 Appendix 7.1 PCB I/O Port Explanation: Ports Meaning To operation panel Reserved NET1 NET2 To fan motor (DC) TEMP1 To evaporator inlet/outlet temp. sensor TEMP2 To condenser outlet temp. sensor HUMI01 To the build-in RHS (Refer to 7.2) HUMI02 To the external RHS (optional) To high-pressure protection switch...
