Summary of Contents for TELELYNX IDH2-3308

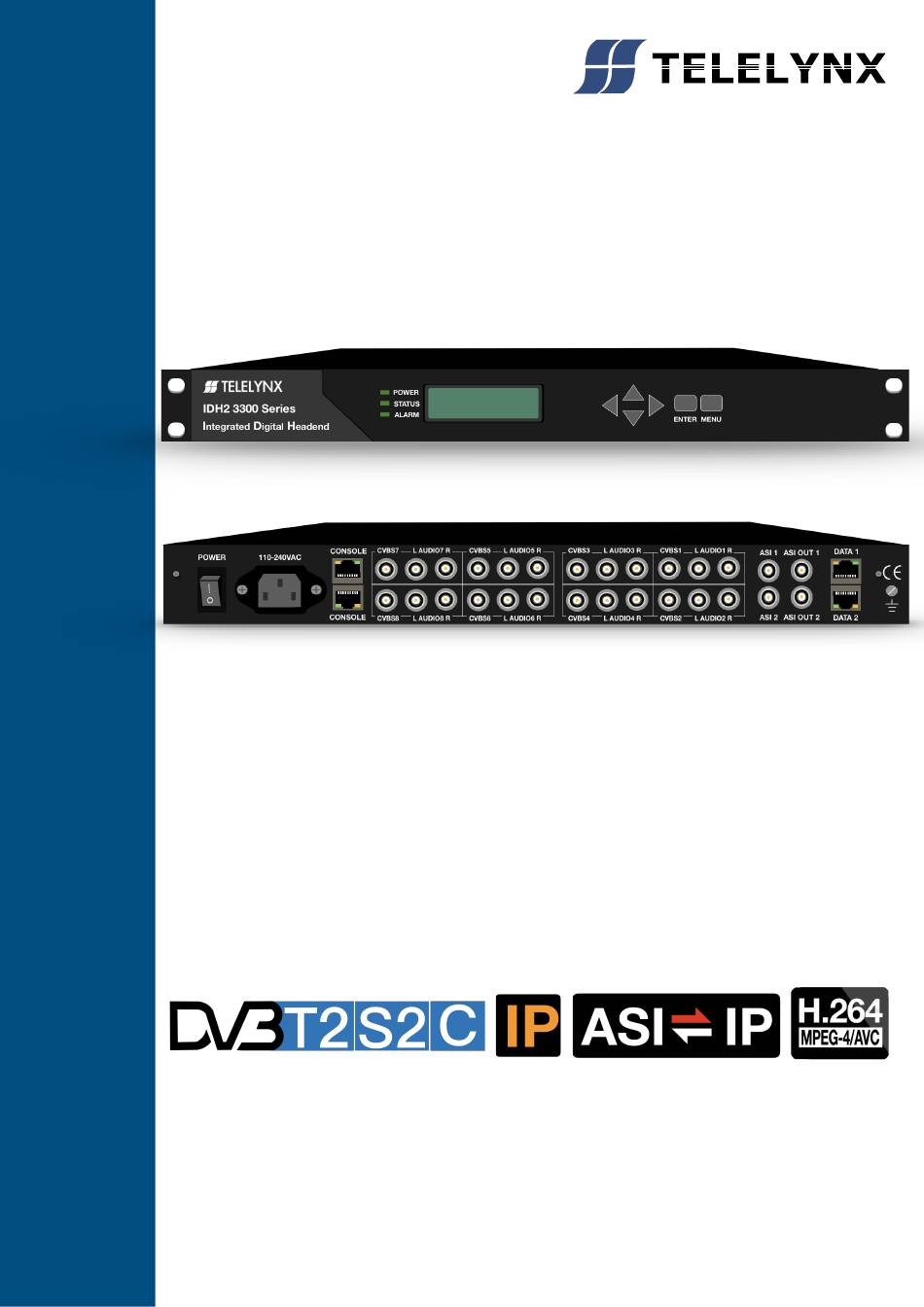

  • Page 1 MODELIDH2-3308...

  • Page 2: Safety Instructions

    12. Make sure the AC power is unplugged in case of operator services within the device casing or close to power supply are needed. 13. Only TELELYNX trained and approved staff is permitted to perform live line operation and maintenance within the device casing.

  • Page 3: Table Of Contents

    Menu Content & Keypad Operation ............... 29 3.3.3 Menu Content ..................29 3.3.4 Keypad Operation ................... 29 Annex A: Technical Specifications of IDH2-3308 ................. 30 Annex B: Default Settings ......................32 Annex C Frequently Asked Question ..................... 34 Postscript ..................... 錯誤! 尚未定義書籤。 3 / 35...

  • Page 4: Introduction

    IDH2-3308 is a MultiChannel SD encoder which complies with low bit rate performance requirements. It can perform SD H.264/MPEG-2 compression encoding for up to eight channels of analog input A/V signals simultaneously, and then output the signals through ASI/IP interface after multiplexing, it also can support multiplexing of 2 ASI inputs and coding outputs, with higher quality of coding image and rate.

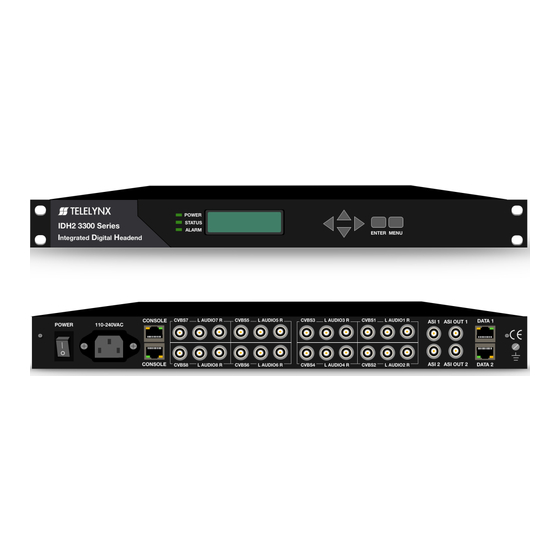

  • Page 5: 1.3 Frontpanel

    1.4 Rear Panel of IDH2-3308 As shown in figure 2, the rear panel of IDH2-3308 includes eight A/V input ports, two ASI input ports, two ASI output ports, one IP output ports (data1), one RJ45 connector for management, one engineering test port, one power supply connector, one power switch, and a grounding connector.

  • Page 6: Typical Application Architecture

    AV signals, and then output the signals through ASI/IP interface. Please refer to section 2.1.1for details of supported transport stream formats. The input devices of IDH2-3308 should be A/V output devices, such as satellite receiver, video player, DVD, etc. the output connection devices of IDH2-3308 should be multiplexer and scrambler.

  • Page 7: Before Use The Device

    In order to ensure proper operation of IDH2-3308, there are some requirements for other digital TV and network devices, which will connect with IDH2-3308. Please see below for details: The preceding device of IDH2-3308 needs to provide Standard Definition AV/SDI signal source. The succeeding device of IDH2-3308 need to receive ASI/IP signal derived from IDH2-3308.
  • Page 8 Parameter Settings Value Range Note Video aspect ratio 4：3/16：9/1：1 Channel 1～8 Audio Encode Standard MPEG-1 L2/LC-AAC Channel 1～8 Audio Output Bit Rate 192/224/256/320/384Kbps（MPEG1 L2） Channel 1～8 96/112/128/160/192/224/256/320Kbps（LC-AAC） Lightness 0～100 Channel 1～8(no SDI) Contrast 0～100 Channel 1～8(no SDI) Saturation 0～100 Channel 1～8(no SDI) 0～100 Channel 1～8(no SDI) Image Horizontal Offset...
  • Page 9 Parameter Settings Value Range Note Output ON_ID 1～65535 Audio Sampling Frequency 32/44.1/48KHz Same application value for channel 1~4; Same application value for channel 5~8; IP Address 000.000.000.000～255.255.255.255 Subnet Mask 000.000.000.000～255.255.255.255 Default Gateway 000.000.000.000～255.255.255.255 Language Selection Chinese/English IP Output Program Type MPTS/SPTS IP Output Module Source IP Address...

  • Page 10: Operating The Device

    Please follow the procedures below if it is the first time for you to use IDH2-3308 for constructing digital TV head-end system: 1. Construct your hardware environment, including chassis installation, power supply system deployment, and connecting switches, IDH2-3308, the preceding device(s)(SD Video Source), the succeeding device(s) (e.g.

  • Page 11: User Login

    IP address of the server and the IP management address of IDH2-3308 should be in the same network segment and no two hosts can share one IP address. The management IP address of IDH2-3308 can be modified through “3.0” sub-menu (refer to section 3.3).

  • Page 12: Create New Users

    Clicking “Add User” button in the default page will enter the page of creating a new user, as shown in the figure below: Add New User In this page, properly key in the new username, new password, and then confirm the password, click “submit”...

  • Page 13: User Edit

    【Remark】 1. Admin account cannot be deleted, but its password can be modified. 2. When using IDH2-3308 for the first time, password of admin account should be modified firstly, and kept them safely. 3. The modified password should be limited within 3 to 32 letters, all the string characters are available (including: letters, number sand underlines ).

  • Page 14: Connecting Device

    You can check the system information and warning information after proper connection through “device information” page. The layout of this web network management adopted the structure of upper navigation bar, left tree structure for choosing the sub-page, and right for showing the current page. Clicking of “Device Information”...
  • Page 15 Warning Information The Warning information bar will show the working status of each coding channel and the output status of system, as well as real-time refresh the status information. If you encountered these common Warning information as follows, please refer to Annex C: frequently asked questions. Common Warning information in channel: 1.

  • Page 16: Parameter Settings

    The configurable working parameters of IDH2-3308 include “encode parameters”, “program parameters”, “output parameters” and “device management”, the setting methods of these parameters are described as follows. Navigation bar Click “Encode Parameters” hyperlink in the navigation bar to enter the page for setting of encoding...

  • Page 17: Program Parameter Settings

    10. Contrast settings of channel 1~8: 0~100(no SDI); 11. Saturation settings of channel 1~8: 0~100(no SDI); 12. Hue settings of channel 1~8: 0~100(no SDI); 13. Audio encode mode of channel 1~8: MPEG-1 L2/LC-AAC; 14. Audio bit rate (Kbps) settings of channel 1~8: MPEG-1 L2: 192/224/256/320/384(Kbps);...

  • Page 18: Multiplex Settings

    Click “Mux Settings” hyperlink in the navigation bar to enter the page for setting of mux parameters, shown as below: Mux Settings The left selection items of “multiplexer configuration” include input service information and output service information. button in front of “Input Service Info” to unfold its sub-menu shown as As shown in fig.13, click the below: Input Service Info...
  • Page 19 Input TS Setting As shown in fig.15, system will automatically analyze and show the input service information by clicking of “Service Analyse” button, shown as below: 5. Input Service Info 19 / 35...
  • Page 20 Select “ON” from the dropdown list of Mux Status of the program to multiplex it, shown as below: 6. TS Info of Program Click the “submit” button to complete the multiplexing. IDH2-3308 supports batch program multiplexing. It means to multiplex all programs in input channels to 20 / 35...
  • Page 21 output channels, shown as below: 7. TS Info of Program Select “ON” from the dropdown list of “Batch Set Mux Status” and click “submit” button to complete the batch multiplexing. button in front of “Output Service Edit” to unfold the output service As shown in figure 13, click channel, shown as below: 8.
  • Page 22 Shown as figure 22, the output TS information page will display the TS related information, such as TS ID, ON ID, PAT version, etc. IDH2-3308 allows users to edit each individual program information. Click button at the front of the service name to open the program information.
  • Page 23 TS information Users can type the service name, service number, and provider in the corresponding boxes, and click “Submit” button to validate the setting. PMT information PMT information Users can type the value of PMT PID, PMT version, sending interval in the corresponding boxes, and click “Submit”...

  • Page 24: Output Parameters Setting

    Click button in front of to open the TS information list shown as below: ES information Users can type the value of ES PID in the corresponding box and turn ON/OFF the sending switch. Click “Output Parameters” hyperlink in the navigation bar to enter the page for setting of output parameters, including IP output parameters.

  • Page 25: Device Management Settings

    settings” 2. When "SPTS mode" is selected for output mode, the program in each encode channel will be output as a separate TS, and its output network parameter also can be set respectively, but not identical. 3. In unicast, multicast, and broadcast, the address value range should comply with the IP address value standard.
  • Page 26 Device Management Settings The system working parameters that can be configured in this page according to TCP/IP protocol: 1. IP address and subnet mask of management port, IP address of gateway; 2. IP address and subnet mask of IP data output source port; 3.
  • Page 27 Select Upgrade File Remarks: please use the parameter file provided by TELELYNX, or import the exported parameter file in advance, otherwise, the imported parameter file will be rejected by device, even it may lead to improper working. 2） Click “Import” button, it will show the page below after the import process successfully completed.
  • Page 28 1. Management port IP address should be in the same subnet with the management workstation of IDH2-3308; 2. Data output port IP address should be in the same subnet with the succeeding device of IDH2-3308; 3. No need to reset after modifying IP address of network management.

  • Page 29: Front Panel Operation Of Idh2-3308

    1. The front panel LCD light will be off and keypad will be locked if there is no key pressed within 30 seconds. 2. When new alarm occurred, the alarm light and status light will be flickering for 10 seconds. If no new alarm occurred, the alarm light and status light will keep red until be cleaned.

  • Page 30: Annex A: Technical Specifications Of Idh2-3308

    A.1 Common Technical Specifications Characteristic Properties Specifications AC Input Range 100V～240VAC Power Supply AC Input Frequency 50/60Hz and Consumption ≤50W Consumption No. of PS Module Working Temperature Range 0°C ~45°C (36°F ~109°F) Storage Temperature Range -25°C ~80°C (-13°F~158°F) Working/Storage Air Pressure 86～106KPa Environment Humidity...
  • Page 31 Physical Connector Impedance 75Ω Electrical Specification Packet 188 Bytes Output Interface Bit rate 2～60Mbps Output EPL 800mv±10%（75Ω） Physical Connector RJ45 TCP/IP Management Communication Protocol TCP/IP Port Data Rate 100Mbps Physical Connector RJ45 IP OUT Output Communication Protocol UDP/RTP Interface Data Rate 100Mbps A.3 TS Re-multiplexing Characteristic...

  • Page 32: Annex B: Default Settings

    Parameter Settings Value Range Note Video Format PAL(D/K/B/G/H/I/N) Channel 1～8 Video Resolution 720*576 Channel 1～8 Video Bit Rate Mode Channel 1～8 Video Encode Standard MPEG-2 Channel 1～8 Profile Mode High Profile Channel 1～8 Video aspect ratio Channel 1～8 Video Bit Rate 2500Kbps Channel 1～8 Image Horizontal Offset...
  • Page 33 Parameter Settings Value Range Note Destination IP2 Address of IP 1/2 88.88.88.51 IP2 UDP Port of UP1/2 1002 Destination IP3 Address of IP 1/2 88.88.88.51 IP3 UDP Port of UP1/2 1003 Destination IP4 Address of IP 1/2 88.88.88.51 IP4 UDP Port of UP1/2 1004 Destination IP5 Address of IP 1/2 88.88.88.51...

  • Page 34: Annex C Frequently Asked Question

    Alarm prompt that input signal Check if the signal format of input video loss, input format error and Signal format of input video error meet the signal requirements of IDH2-3308 encoding error. Check if the input signal format can Input format error...
  • Page 35 port No. Error bit, pausing, or alarm Modify the system bit rate, to make it to be prompt buffer overflow are System bit rate too small larger than the total output program, appeared in ASI output program without alarm information. Serious error bit appears in all IP Other data flow in network too Clear the other data flow in network, and it...
