Summary of Contents for TELELYNX LAVISION-8811

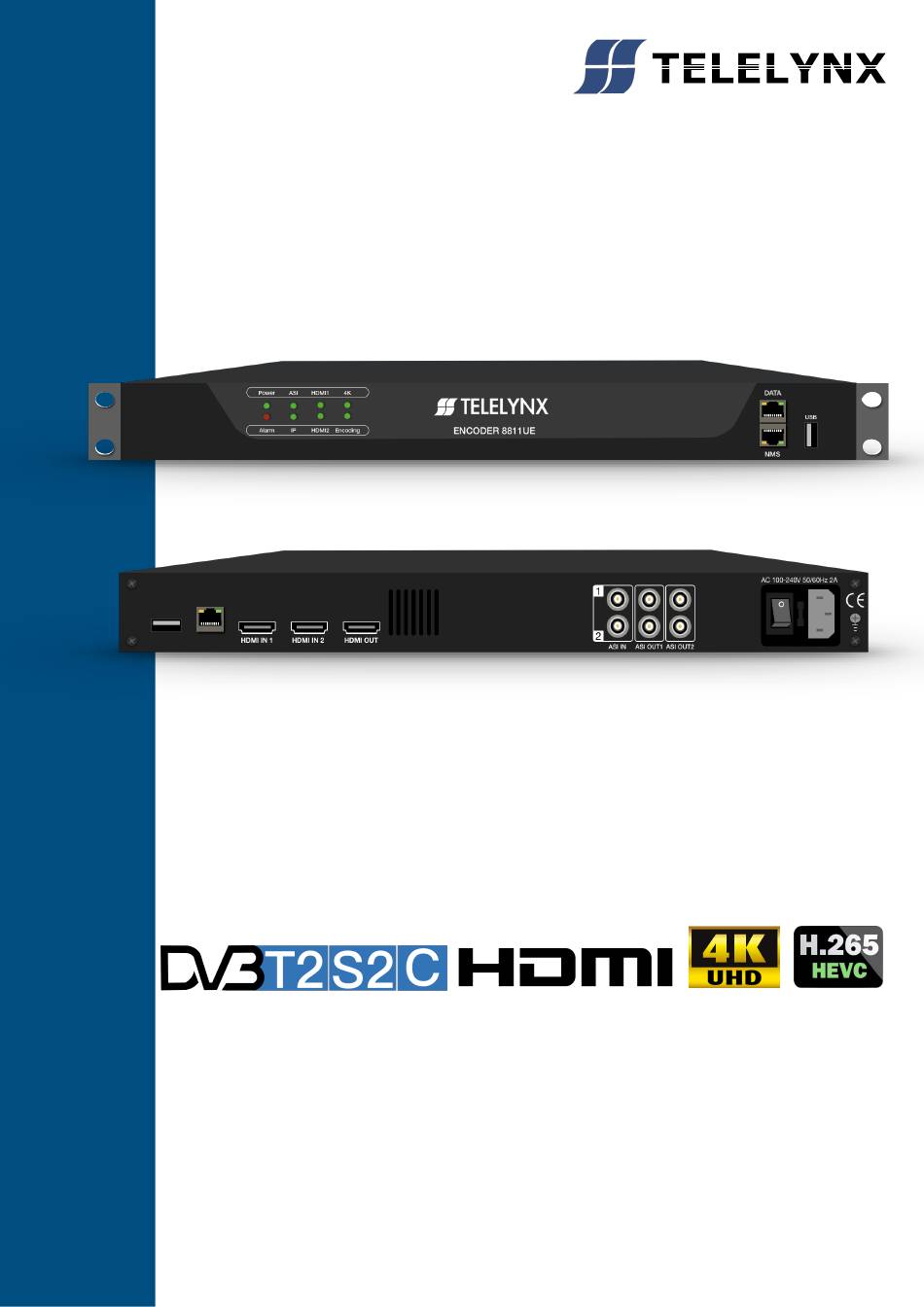

- Page 1 LAVISION-8811...
- Page 2 Preface Thank you for purchasing TELELYNX INC products! We fully own the intelligent property rights of this product. Our company reserves the rights to pursue legal actions against unauthorized duplication and usage of the product and its software by any organizations or individuals.
- Page 3 Safety Instructions ⚫ Read this manual carefully before start operating the device. ⚫ Removal of device cover without permission may cause harm to human body and the maintenance bond to be invalidated. ⚫ Handle the device with care to avoid crashing and falling, or otherwise it may cause hazards to the internal hardware parts.
-
Page 4: Table Of Contents
CONTENTS CHAPTER 1 INTRODUCTION ...................... 1 1.1 P ......................... 1 RODUCT VERVIEW 1.2 K .......................... 1 EATURES 1.3 S ......................... 1 PECIFICATIONS CHAPTER 2 INSTALLATION GUIDE ................... 4 2.1 G ......................4 ENERAL RECAUTIONS 2.2 P ........................ 4 OWER PRECAUTIONS ’... -
Page 5: Chapter 1 Introduction
Chapter 1 Introduction 1.1 Product Overview With the significant increase in UHD TV hitting the market, we now is releasing a new professional UHD/4K video encoder for a solution to address the needs of early adopters of the premium TV standard. LAVISION-8811UE delivers UHD/4K for an immersive experience with high-resolution and high-framerate. -
Page 6: Specifications
IP null packet filtering ⚫ Real time output bitrate monitoring ⚫ Management via External SNMP and WEB ⚫ Easy-to-Use System Management ⚫ Reliable: Hardware based for 24/7 operation ⚫ 1.3 Specifications 1×HDMI input (2.0) with 2 HDMI port, HDCP 2.2/1.4 Input 2 ASI input, BNC interface 32 IP input over UDP and RTP protocol... - Page 7 Approx weight Temperature 0~45℃(work), -20~80℃（Storage） Power AC 100V-220V±10%, 50/60Hz Consumption 1.4 Appearance and Description Front and Rear Panel Illustration Port Power supply and Grounding Pole HDMI input ASI input Data Port Indicator ASI output port DATA Port NMS/CAS Second DATA Port, for OSD interface...
-
Page 8: Chapter 2 Installation Guide
Chapter 2 Installation Guide This section is to explain the cautions the users must know in some case that possible injure may bring to users when it’s used or installed. For this reason, please read all details here and make in mind before installing or using the product. 2.1 General Precautions ✓... -
Page 9: Grounding Requirement
When user installs machine frame array in one machine hall, Machine Hall the distance between 2 rows of machine frames should be Space 1.2~1.5m and the distance against wall should be no less than 0.8m. Electric Isolation, Dust Free Volume resistivity ground anti-static... -
Page 10: Chapter 3 Web Nms Operation
Chapter 3 WEB NMS Operation User not only can use front buttons to set configuration, but also can control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from the LAVISION-8811UE’s IP address; otherwise, it would cause IP conflict. -
Page 11: Encoder Operation
Figure-1 4.2 Encoder Operation Status When we login into encoder module, it displays the status interface as Figure-2. Current software version Figure-2 information User can click any item here to enter the corresponding interface to check information or set the parameters. Parameters →... - Page 12 Select Encoding Channels here Video Status read area Audio Status read area status Figure-3 Parameters → TS Config: From the menu on left side of the webpage, clicking “TS Config”, it displays the interface where users can configure the TS output parameters. ➢...
- Page 13 : To add input channel which can from 3 modules : To edit the input channel : To delete the input channel : To delete all inputs channel : To check input IP lock or not, green means current IP locked : To check current TS overflow or not, red color means current TS overflow, need reduce program : To filter/not filter the source CA information...
- Page 14 Parameters→ OSD: Click ‘OSD’, it will display the interface where to configuration the OSD parameters Click here to comfirm the LOGO you selected Browse and select the Logo which has been created Put your logo everywhere...
- Page 15 ➢ TS Config→General: From the TS Config menu on up side of the webpage, clicking “General”, it displays the interface where users can set output mode, enable PSI/SI table out, NIT insert/VCT insert, PCR correction. (Figure-6) Figure-6 ➢ TS Config→PID Bypass: From the TS Config menu on up side of the webpage, clicking “PID Bypass”, it displays the interface as Figure-7 where user can add PIDs to be passed, click the “+”...
- Page 16 Figure-7 Parameters → IP Stream: LAVISION-8811UE supports TS to output in IP (MPTS) format through the DATA1 and DATA2 port. Click ‘IP Stream’, it will display the interface where to set IP out parameters (Figure-8). Quickly Config Channel Config Figure-8 System →...
- Page 17 System → password From the menu on left side of the webpage, clicking “Password”, it will display the screen as Figure-10 where to set the login account and password for the web NMS. Figure-10 System → Configuration: From the menu on left side of the webpage, clicking “Configuration”, it will display the screen as Figure-11 where to save/ restore/factory setting/ backup/ load your configurations.
- Page 18 System → Firmware: From the menu on left side of the webpage, clicking “Firmware”, it will display the screen as Figure-12 where to update firmware for the modulator. Figure-12 System→ Date/Time: From the menu on left side of the webpage, clicking “Date/Time”, it will display the screen as Figure-13 where to set date and time for the device.
- Page 19 Figure-13 System→ Log: From the menu on left side of the webpage, clicking “Log”, it will display the log interface as Figure-14 where to check or export the Kernel/System log. Figure-14...
-
Page 20: Chapter 4 Troubleshooting
Chapter 4 Troubleshooting ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already cover all the Optical, Electronic and Mechanical criteria which have been published. -
Page 21: Chapter 5 Packing List
➢ Maintenance needed Chapter 5 Packing List LAVISION-8811UE UHD/4K HEVC Encoder 1 pcs User Manual 1 pcs Power Cord 1pcs...
