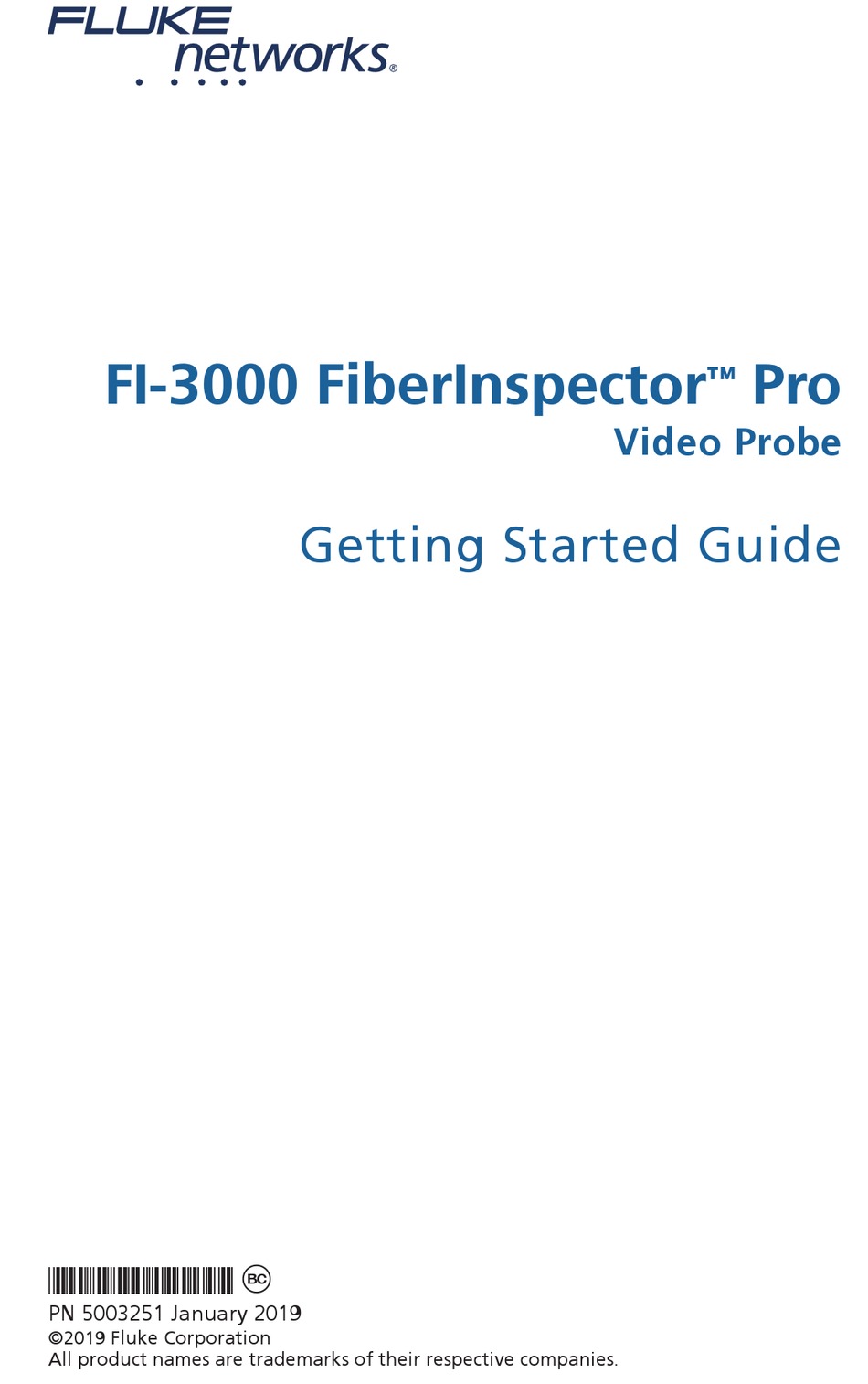

- Page 1 FI-3000 FiberInspector ™ Video Probe Getting Started Guide É *5003251* PN 5003251 January 2019 ©2019 Fluke Corporation All product names are trademarks of their respective companies.
- Page 2 LIMITED WARRANTY AND LIMITATION OF LIABILITY Each Fluke Networks product is warranted to be free from defects in material and workmanship under normal use and service unless stated otherwise herein. The warranty period for the mainframe is one year and begins on the date of purchase. Parts, accessories, product repairs and services are warranted for 90 days, unless otherwise stated.

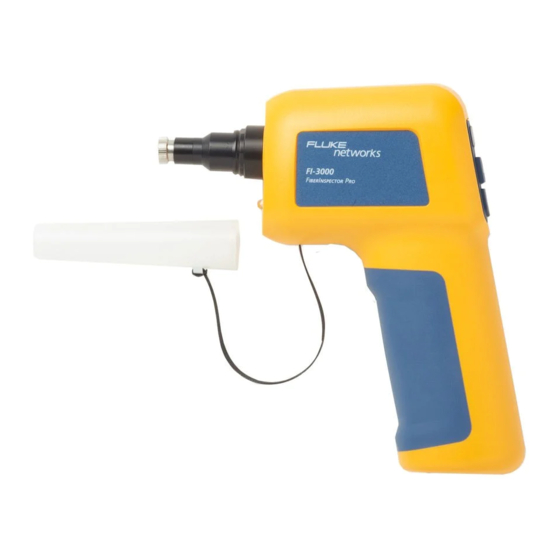

- Page 3 ™ Video Probe Getting Started Guide The FI-3000 FiberInspector Pro is hand-held probe used to inspect fiber optic endfaces on MPO connectors. You use the probe with your mobile device and the F application to view and analyze endfaces and share and save test results.
-
Page 4: Safety Information
Do not open the case. You cannot repair or replace parts in the case. • Do not modify the Product. • Use only replacement parts that are approved by Fluke Networks. • Do not use the Product around explosive gas, vapor, or in damp or wet environments. •... - Page 5 • Have an approved technician repair the Product. • Use only AC adapters approved by Fluke Networks for use with the Product to supply power to the Product and charge the battery. • Do not look directly into optical connectors. Some optical equipment emits invisible radiation that can cause permanent damage to your eyes.
-
Page 6: Charge The Battery
Charge the Battery Red: Charging Green: Fully charged Blinking red/green: The battery will not charge. See the Users Manual. CL01.EPS Get the F Application F -I F -I device Android device ® ™ CL02.EPS... - Page 7 Attach the Correct Tip Blue: UPC You can put the MPO key on either side. Be sure to set the M12U Bulkhead Tip Key Position in the app. See 12 to 24 fibers, UPC “Set the Key Position” on page 7. Slot and key Green: APC M12A Bulkhead Tip...
- Page 8 Connect the Probe to Your Mobile Device Note The password is the same (1234567890) for all probes. You cannot change the password. If your mobile device shows a message about no internet access, choose to stay connected to the probe. FI-IN 2 seconds Wi-Fi network...
- Page 9 Set the Key Position You can attach the MPO inspection tips to the probe with the MPO key on the left or right. This lets you rotate the probe when a cabinet door or other surface is in the way of the probe’s handle. The fiber numbers in your test results will agree with the numbers for the MPO connector when you meet these two conditions: •...
-
Page 10: Learn More
Registering your product with Fluke Networks gives you access to valuable information on product updates, troubleshooting tips, and other support services. To register, go to the Fluke Networks website and sign in to your account. Contact Fluke Networks » www.flukenetworks.com/support info@flukenetworks.com... -
Page 11: General Specifications
General Specifications Battery Type: Lithium-ion, 3.6 V, 6400 mAh Power Adapter Input: 100 to 240 VAC ±10%, 50/60Hz Output: 15 VDC, 2 A maximum Class II Wireless Output power: 72.11 mW Transmission* Frequency ranges: 2400 MHz to 2483.5 MHz Wi-Fi Radio SimpleLink Wi-Fi CC3220MOD Wireless Microcontroller...
