Summary of Contents for Fluke DS701

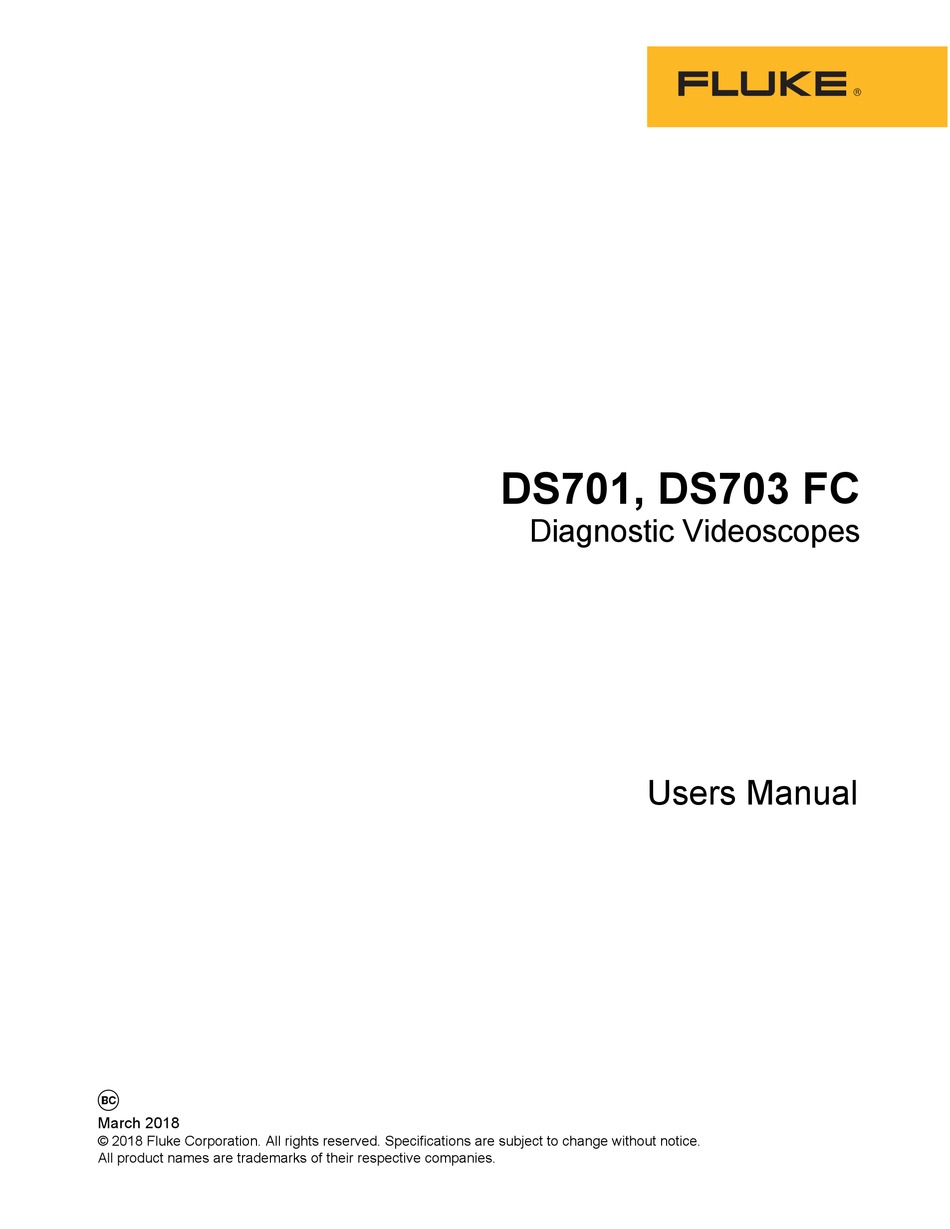

- Page 1 DS701, DS703 FC Diagnostic Videoscopes Users Manual March 2018 (English) © 2018 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.
- Page 2 Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price.
-
Page 3: Table Of Contents
Delete Image ....................14 View Images or Videos ..................14 View on a PC ....................14 View on an HDMI Device................. 15 View with Fluke Connect ................. 15 Update Firmware ....................15 Fluke Connect Desktop Software ................. 15 Accessories......................16 Neck Strap ...................... - Page 4 DS701, DS703 FC Users Manual...
-
Page 5: Introduction
USB storage device. Saved images and videos can be transferred to a PC through a direct USB connection to the PC. Saved images can be transferred to Fluke Connect where available. - Page 6 DS701, DS703 FC Users Manual XW Warning To prevent possible electrical shock, fire, or personal injury and for safe operation of the Product: • Read all safety information before you use the Product. • Carefully read all instructions. • Do not alter the Product and use only as specified, or the protection supplied by the Product can be compromised.
- Page 7 batteries should be disposed of by a qualified recycler or hazardous materials handler per local regulations. Contact your authorized Fluke Service Center for recycling information. This product complies with the WEEE Directive marking requirements. The affixed label indicates that you must not discard this electrical/electronic product in domestic household waste.
-
Page 8: Product Familiarization

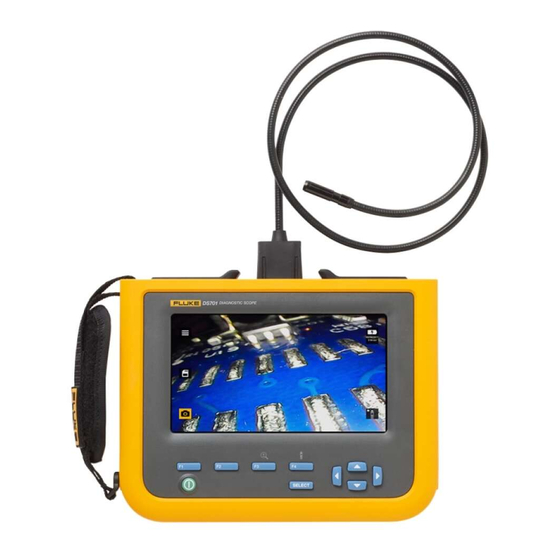

DS701, DS703 FC Users Manual Product Familiarization The manual explains features for multiple models. Because models have different features, not all of the information in the manual may apply to your Product. The figures show the DS703 FC. Use Table to identify the features of your Product. -
Page 9: Standard Accessories
Diagnostic Videoscopes Product Familiarization Standard Accessories Table shows the Product and the standard accessories. Table 3. Standard Accessories SELECT Item Description Item Description Control panel Neck strap Hand strap USB cable LCD screen (display) HDMI cable Probe T-Pak magnetic hanger USB charger... - Page 10 DS701, DS703 FC Users Manual Table shows the connections of the Product. Table 4. Connections VIDEO Item Description Item Description Anchors for hand strap HDMI input Micro B USB input Anchor for T-Pak magnetic hanger Probe input...
- Page 11 Diagnostic Videoscopes Product Familiarization Table shows the parts of the probe. Table 5. Probe Item Description Item Description Probe head Side LED Probe cable Forward camera Side camera Forward LED...
-
Page 12: Display
DS701, DS703 FC Users Manual Display Control Panel) to select an icon to change parameters or select functions and options. Use the control panel (see Use the touch screen as a shortcut to common settings. The display has a backlight for work in dimly-lit spaces. -
Page 13: Control Panel
Diagnostic Videoscopes Basic Operation Control Panel Use the control panel to change parameters or select functions and options. Table lists the functions of the buttons on the Control Panel. Table 7. Control Panel Button Home Screen Function Push to turn on or off the Product. ... -
Page 14: Record A Video
DS701, DS703 FC Users Manual Record a Video To record a video: 1. Select Menu > Image > Video > Done > Cancel to select video mode and return to the home screen. 2. Push S to start recording a video. -
Page 15: Image Menu
Diagnostic Videoscopes Menus Image Menu Table lists the options in the Image menu. Table 9. Image Menu Option Menu Option Description Image Select to set up the Product to capture an image. Image Mode Video Select to set up the Product to record a video. True Color Select to set the view mode. -
Page 16: Date
Table 10. Setup Menu (cont.) Option Menu Option Description Turns on or off WiFi. Select WiFI ON to pair the Imager to the Wifi (ON) Fluke Connect app on a mobile device or to other Fluke Connect Fluke Connect. tools. See Fluke Connect Note Wifi (OFF) The Fluke Connect system is not available in all countries. -
Page 17: Fluke Connect
The Product supports the Fluke Connect Wireless system. The Fluke Connect system wirelessly connects your Fluke test tools with an app on a mobile device. Use the app to view images saved on the Product or on your mobile device. -
Page 18: Delete Image
3. Push to delete all the files from the memory. View Images or Videos Once files save on the Product, you can view the files on a PC, on an HDMI compatible device, or in the Fluke Connect app (where available). -
Page 19: View On An Hdmi Device
View with Fluke Connect Fluke Connect. To view saved files in the Fluke Connect app, see Update Firmware 1. Connect the USB A connector end of the USB cable into your PC and the Micro B USB connector end of the USB cable into the Product. -
Page 20: Accessories
DS701, DS703 FC Users Manual Accessories Table is a list of the accessories available for the Product. Table 12. Accessories Model Description FLK-3.8MM PROBE, 1M, 3.8 mm wide, 1 m long high definition imaging probe with a 4962690 FORWARD VIEW forward view lens. -
Page 21: Neck Strap
Diagnostic Videoscopes Neck Strap Neck Strap Use the neck strap to carry the Product for an extended period of time. See Figure 1. Figure 1. Adjustable Neck Strap Maintenance To maintain the Product, clean the case and lenses and charge the batteries. W Caution To prevent damage to the Product, do not drop the Product. -
Page 22: Clean The Product
DS701, DS703 FC Users Manual Clean the Product W Caution To prevent damage to the Product, do not use abrasives, isopropyl alcohol, or solvents to clean the case or lenses. Clean the case with a damp cloth and a weak soap solution. To clean the lenses, use a pressurized can of air or a dry nitrogen-ion gun, if available, to blow off the particulates from the lenses. -
Page 23: Radio Frequency Data
Diagnostic Videoscopes Radio Frequency Data Figure 2. Charge the Battery Radio Frequency Data To view the Radio Frequency Data Class B Instruction Sheet, visit http://us.fluke.com/usen/support/manuals search for 4409209. Specifications Temperature Operating ..............0 °C to 50 °C (32 °F to 122 °F) Storage .............. - Page 24 DS701, DS703 FC Users Manual Wireless Radio (DS703 FC) Frequency..............2412 MHz to 2462 MHz Output Power ..............<100 mW Electromagnetic Compatibility (EMC) International ..............IEC 61326-1: Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
