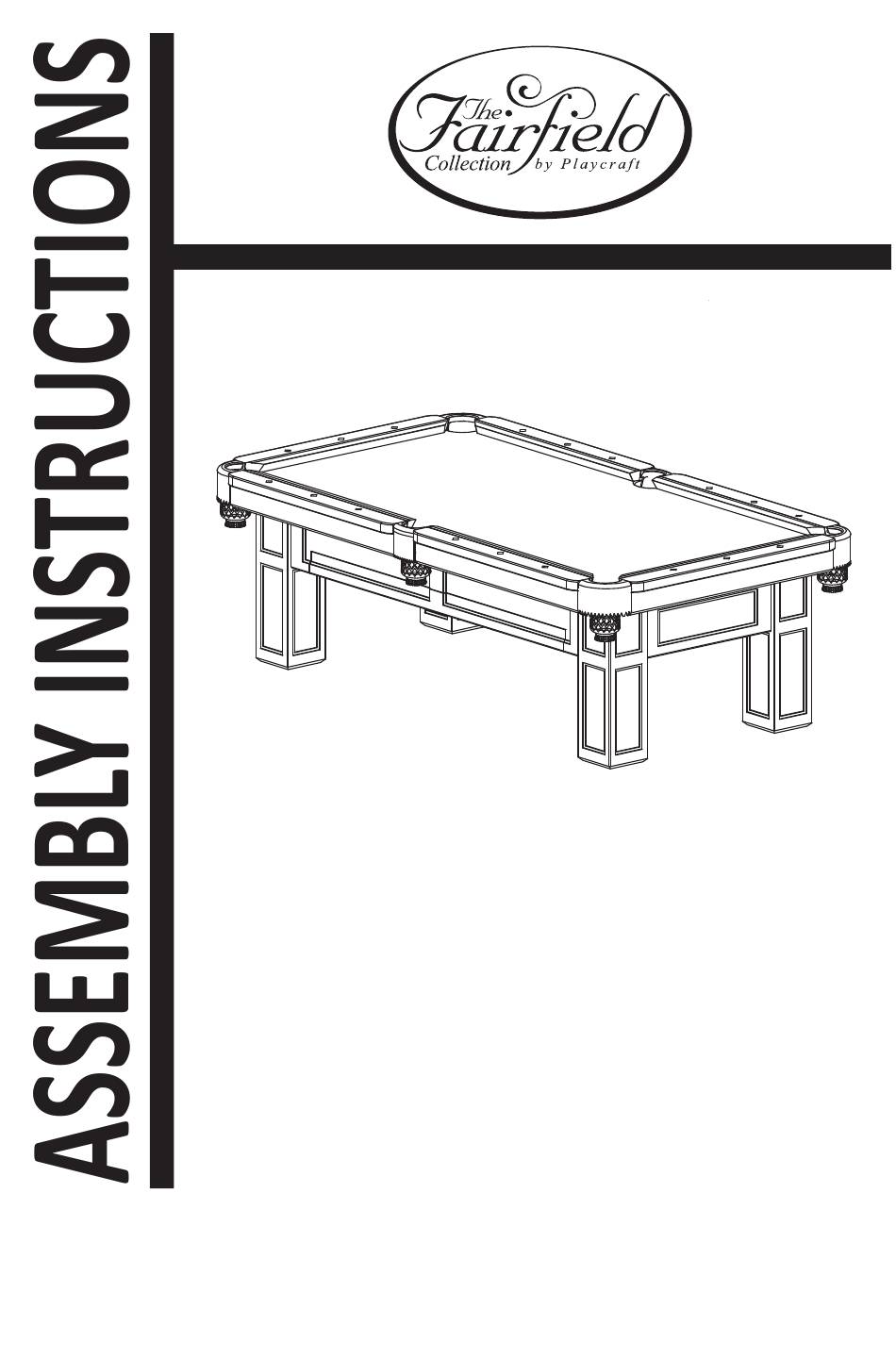

- Page 1 Cooper Creek Model: PTCOORVR08 - Cooper Creek 8’ River Stone...

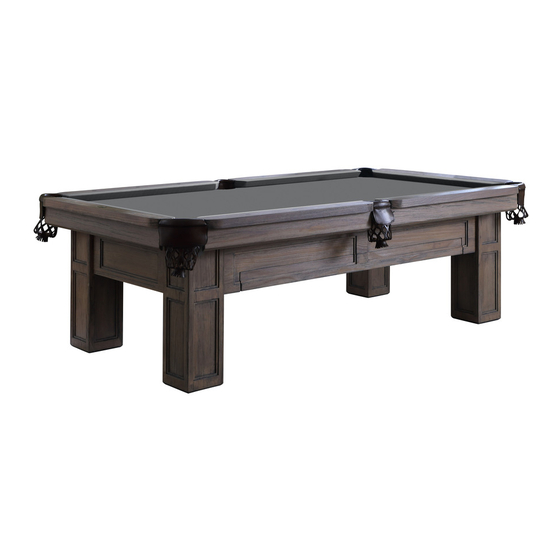

- Page 2 page 1 Congratula�ons on selec�ng a Cooper Creek slate pool table - part of the Fairfield Collec�on by Playcra�. Please contact us ia email at support@playcra�.com should you require any assistance. Please carefully read all safety instruc�ons and direc�ons before proceeding Your table is designed for use indoors in a climate controled environment only.
-
Page 3: Parts List
page 2 Parts List - cabinet *images not to scale IMAGE DESCRIPTION SPECIFICATION UNIT 680*300*80 SHORT FRAME ASSEMBLY CABINET POSITION 723*200*200 TABLE LEG ASSEMBLY CABINET POSITION 1830*300*80 LONG FRAME ASSEMBLY CABINET POSITION 1830*300*80 SHORT FRAME ASSEMBLY CABINET POSITION 1720*980*190 DRAWER ASSEMBLY CABINET POSITION... - Page 4 page 3 Parts List - hardware *images not to scale IMAGE DESCRIPTION SPECIFICATION UNIT ø10*65 HEXAGON BOLT ASSEMBLY FOR CONNECTING THE LEG AND FRAME POSITION M10*30*2 FLAT WASHER ASSEMBLY 16PCS FOR CONNECTING THE LEG ，8PCS FOR THE DRAWER POSITION ø10*45 HEXAGON BOLT ASSEMBLY FOR THE DRAWER...
- Page 5 page 4 Step 1 NOTE: The tops of the legs and cabinet aprons must be at the same height Step 2 NOTE: Adjust the gap between the drawer and the apron as needed...
- Page 6 page 5 Step 3 NOTE: The tops of the cross beam supports must be at the same height as the tops of the aprons and legs Step 4 NOTE: When inserting the slate adjusting bolts, the head of the bolt should be even with the top of the cross support or slightly below.
- Page 7 page 6 Step 5 NOTE: When attaching the slate connector blocks, the top of the blocks should be the same height as the top of the apron. They should not be higher than the apron Step 6 NOTE: Place the slate onto the frame and center carefully along the length and across the width.
- Page 8 page 7 Step 7 NOTE: Attach the billiard cloth Step 8 NOTE: Cover the cushions with billiard cloth. Use care when attaching pockets and placing the aprons on the slate...
- Page 9 page 8 Note: Align the side rails #2, #3, #5 and #6 ( H16 & H17 ) Step 9 so they are in a straight line and at ninety degrees relative to the end rails before tightening the rail bolts Complete...
-
Page 10: Customer Service
Customer Service For ques�ons on assembly or for missing or damaged parts, please contact us via email at support@playcra�.com. Please visit our website at www.playcra�.com to see more industry leading Playcra� and Playcra� Sport game tables. Thank you for choosing Playcra�! Global Merchants, Inc.
