Related Manuals for Playcraft Fairfield Monaco
Summary of Contents for Playcraft Fairfield Monaco

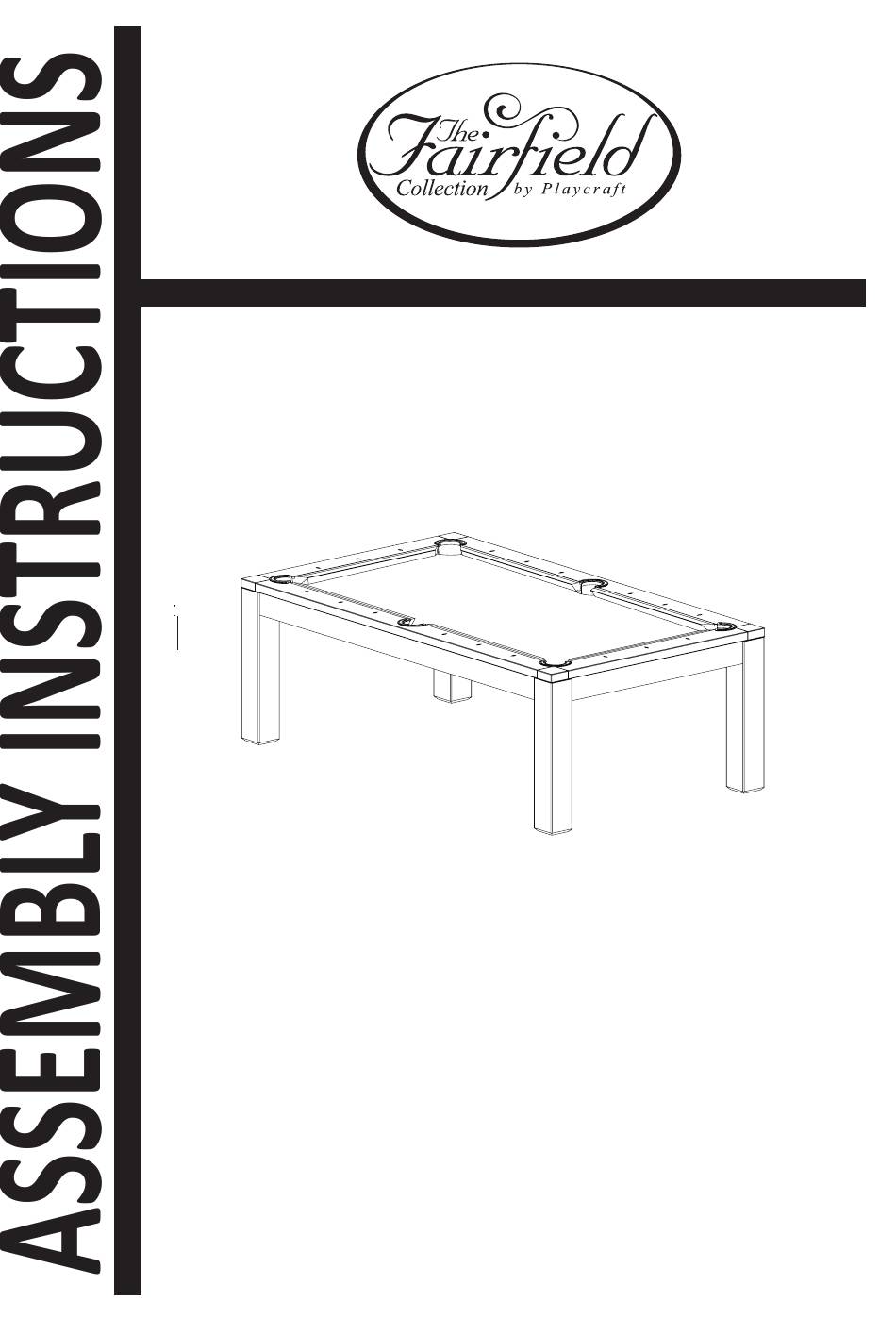

- Page 1 Monaco...
- Page 2 Congratulations on selecting a Monaco slate pool table - part of the Fair eld Collection by Playcraft. Please contact us via email at support@playcraft.com should you require any assistance. Your table is designed for use indoors in a climate controled environment only.
-
Page 3: Hardware List
HARDWARE LIST IMAGE NAME SPECIFICATION UNIT HEX BOLT ø10*100 ASSEMBLY USED TO FIX THE LEGS AND SLATE POSITION FLAT WASHER M10*30*2 ASSEMBLY USED TO FIX THE LEGS AND SLATE POSITION HEX BOLT ø12*160 ASSEMBLY USED TO FIX THE LONG BEAM AND APRON POSITION FLAT WASHER M12*30*2... - Page 4 BARREL NUT ø8*30 ASSEMBLY USED TO FIX THE TOP RAIL AND CORNER POSITION SEMICIRCLE WASHER ASSEMBLY USED TO FIX THE TOP RAIL AND CORNER POSITION FLAT WASHER ASSEMBLY USED TO FIX THE TOP RAIL AND CORNER POSITION HEX BOLT ø10*55 ASSEMBLY USED TO FIX THE TOP RAILS AND SLATE POSITION...
-
Page 5: Part List
PART LIST CODE DESCRIPTION NAME SPECIFICATION UNIT 750*130*130 ASSEMBLY FRAME POSITION 2062*110*75 LONG APRON ASSEMBLY FRAME POSITION 1095*110*75 SHORT APRON ASSEMBLY FRAME POSITION 2176*120*68 LONG BEAM ASSEMBLY LONG CROSS BEAM POSITION 1208*100*40 SHORT BEAM 1 ASSEMBLY SHORT CROSS BEAM POSITION 1208*80*40 SHORT BEAM 2 ASSEMBLY... - Page 11 Customer Service Global Merchants, Inc. 12 Lunar Drive Woodbridge, CT 06525...
