rollease acmeda Easy Spring Plus Fabrication Instructions

Cordless roller roman shade

Advertisement

Quick Links

Easy
Spring
CORDLESS SHADE SYSTEM
by Rollease Acmeda
Cordless Roller Roman Shade
Fabrication Instructions
Table of Contents
Components Needed............................................................. Pages 2-3
Assembly Drawing & Spring/Stop Positioning ................... Page 4
Fabrication Instructions ......................................................... Pages 5-13
Minimum Shade Size per Spring................................ Page 6
How to Select a Spring................................................ Page 6
How to Set the Stop Plate ........................................ Page 7
Pre-Rotation Instructions and Charts ....................... Page 8-9
Trouble-shooting......................................................................Page 14
Plus
with Easy Spring Plus
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Easy Spring Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for rollease acmeda Easy Spring Plus

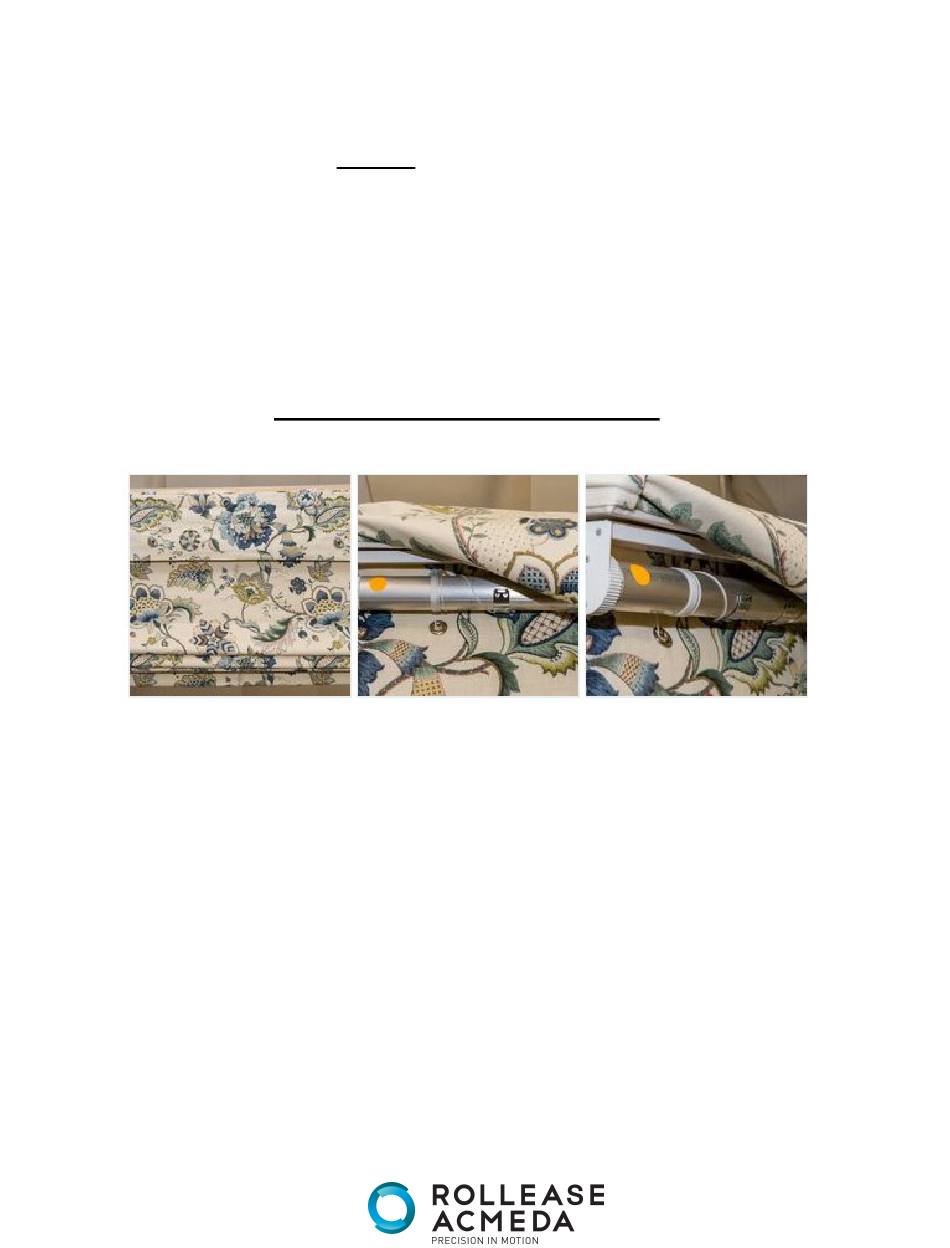

  • Page 1 Easy Spring Plus CORDLESS SHADE SYSTEM by Rollease Acmeda Cordless Roller Roman Shade with Easy Spring Plus Fabrication Instructions Table of Contents Components Needed…….……………………………………………… Pages 2-3 Assembly Drawing & Spring/Stop Positioning ………….…… Page 4 Fabrication Instructions ………………………………………………… Pages 5-13 Minimum Shade Size per Spring………………………….. Page 6 How to Select a Spring…………………………………………...
  • Page 2 Easy Spring Easy Spring Plus Components Plus CORDLESS SHADE SYSTEM by Rollease Acmeda Qty Needed Rollease Acmeda Part # Item RE0080110 Headrail sold 12 ea 16' white Varies depending Mounting on width of RE0080200 shade (max 18” Brackets between brackets) Left Side Spring 1-1/2”...
  • Page 3 Easy Spring Roller Roman Components Plus CORDLESS SHADE SYSTEM by Rollease Acmeda Qty Needed Rollease Acmeda Part # Item 1.2mm white V2LC100 V2LC305 1.2mm sand Lift Cord 1.2mm 1.2mm bronze V2LC885 or your sold in 1000 yard/roll preferance STSFR Forever Ring 1000 ea 1 Short Stack &...
  • Page 4 Easy Spring Roller Roman Assembly - Shade Styles Plus CORDLESS SHADE SYSTEM by Rollease Acmeda A TUBE AND TUBE CLIPS NEEDS TO BE ADDED TO THIS DRAWING Note: Position of spring and stop depends on type of Roman shade you’re making. When assembling your shade, use a sticker or similar to mark spring side for later reference.
  • Page 5: Tools Required

    Easy Spring Plus Tools Required CORDLESS SHADE SYSTEM by Rollease Acmeda 1. Tape measure (with 16th increments) 2. Scissors 3. Screw gun 4. Metal saw (for cutting rail and tube) Deductions Step 1. Determine Size of Dustboard Step 2. Cut headrail 1” smaller than dustboard (leaving 1/2”...
  • Page 6 Easy Spring Easy Spring Plus Plus Roller Roman Fabrication CORDLESS SHADE SYSTEM by Rollease Acmeda 5. Select spring based on dustboard width and shade weight. Note: When choosing a spring, pick the longest spring that will fit in the tube as long as the shade weight does not exceed the max shade weight in the chart below.
  • Page 7 Easy Spring Easy Spring Plus Plus Roller Roman Fabrication CORDLESS SHADE SYSTEM by Rollease Acmeda Setting the Stop Plate On a Cordless Roller Roman Shade system, It is necessary to set the stop plate (move the stop plate away from the stop spring) before inserting it into the tube. This will allow you to be able to set the upper stop position of the shade.
  • Page 8 Easy Spring Easy Spring Plus Plus Roller Roman Fabrication CORDLESS SHADE SYSTEM by Rollease Acmeda 8. Insert the Stop (opposite side from spring) 9. Determine number of pre-rotations needed, then pre-rotate the Spring. The number of spring pre-rotations are determined by the length and weight of the shade.
  • Page 9 Easy Spring Easy Spring Plus Plus Roller Roman Fabrication CORDLESS SHADE SYSTEM by Rollease Acmeda Pre-Rotations for Shade LENGTH 1 1/2 in. (38 mm) Tube Pre-Rotations for Shade Spring size WEIGHT 1 1/2 in. (38 mm) Tube Total Pre-Rotations from LENGTH Chart You may give a smaller shade 35 rotations and larger shades 45 rotations.
  • Page 10 Easy Spring Easy Spring Plus Plus Roller Roman Fabrication CORDLESS SHADE SYSTEM by Rollease Acmeda 10. Insert spring end bracket into headrail and use screws provided to secure in place. 11. Insert spring end of tube into bracket with adjuster wheel.
  • Page 11 Easy Spring Plus Easy Spring Plus Roller Roman Fabrication CORDLESS SHADE SYSTEM by Rollease Acmeda Clip Alignment: Clips should be spaced evenly alternating sides of lift cords. Always use an uneven amount of clips, then place the middle clip to the left or right of middle lift cord. A center cord is needed for the attachment of the pull ring.
  • Page 12 Easy Spring Plus Easy Spring Plus Roller Roman Fabrication CORDLESS SHADE SYSTEM by Rollease Acmeda 16. Evenly space the brackets on the center of the dust board one every 18”. Keep brackets in a straight line and perpendicular to the sides of the dust board. The clear plastic tab faces the rear of the shade.
  • Page 13 Easy Spring Plus Easy Spring Plus Roller Roman Fabrication CORDLESS SHADE SYSTEM by Rollease Acmeda Adjusting the Stop and Spring: 20. First hang shade so you can work from the back. Bring Ring Lock with Level Lock attached (or orbs) up to bottom rings so there is light tension on the lift cord.
  • Page 14 Too low - raise by rotating the wheel counter-clockwise (toward the bottom of the window). See video titled “ ” How to Adjust the Stop Position on the Easy Spring Plus Cordless Roman shade See all instructional videos at: http://www.rollease.com/support/trade/instructional-videos?view=fullpage or on the RollEase YouTube page.
